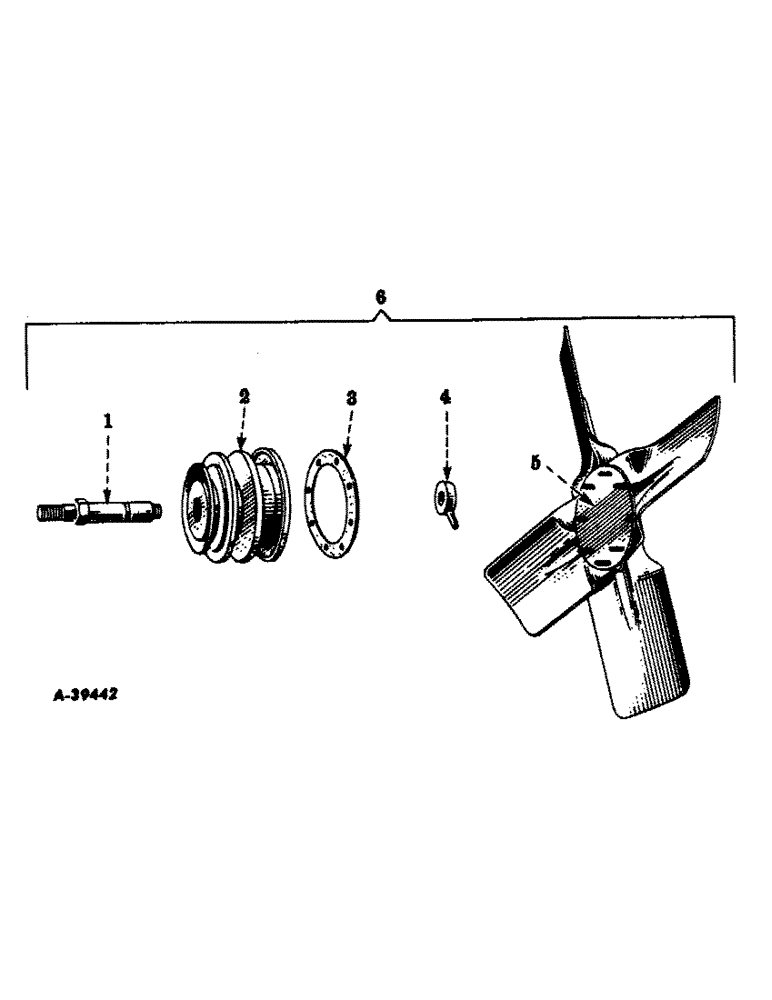

Запчасти Case IH SUPER C (023) - ENGINE, FAN, SERVICE PRODUCTS (01) - ENGINE

1

360706R1

SPINDLE, fan

1шт.

2

360704R91

HUB, fan

1шт.

359683R91

SCREW, oil plug

1шт.

3

360703R1

GASKET

fan hub

1шт.

4

360705R91

NUT, thrust, w/oil tube

1шт.

5

360702R91

FAN

1шт.

103101

CLEVIS

NUT, square, no. 10-32

8шт.

12922R1

SCREW, slotted-fil-hd., no. 10-32 x 9/16

8шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

6

358168R91

FAN AND HUB, assembly (Order 362603R91)

1шт.

362603R91

PACKAGE, service fan hub, Consists of

1шт.

360703R1

GASKET

1шт.

360704R91

HUB

1шт.

360705R91

NUT

1шт.

360706R1

SPINDLE

1шт.
