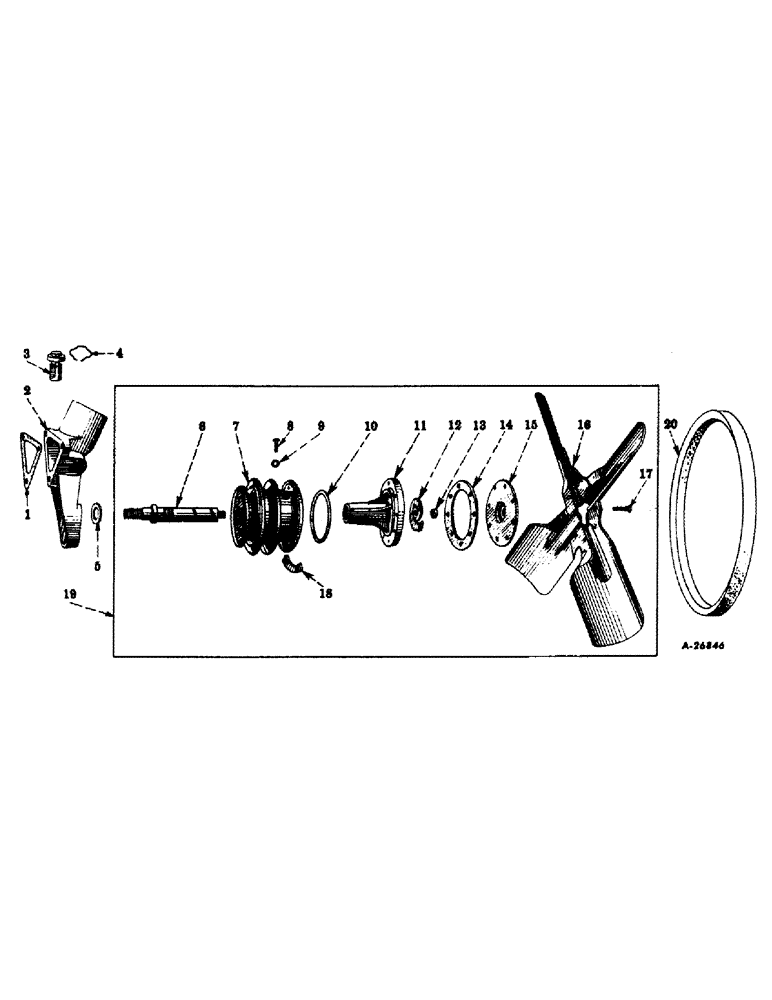

Запчасти Case IH SUPER C (020) - ENGINE, FAN, SCHWITZER-CUMMINS (01) - ENGINE

1

43294D

GASKET

fan bracket

1шт.

2

257353R2

BRACKET, fan and water outlet

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (Not used on tractors equipped with heat indicator) Sq Hd, 1/2"-14 NPTF

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

257440R91

THERMOSTAT

(165 degrees to 195 degrees)

1шт.

3

361818R91

THERMOSTAT (130 degrees to 150 degrees) When this thermostat is used on distillate or kerosene burning engines it is recommended that gasoline be used as the fuel.

1шт.

For use with low boiling point anti-freeze. It is recommended that the 165 degrees to 195 degrees thermostat and 170 degrees to 220 degrees heat indicator, if used, be reinstalled when anti-freeze solutions are not required.

1шт.

4

257441R2

SEGMENT

RING, thermostat retainer

1шт.

5

43293D

WASHER

fan shaft

1шт.

6

SPINDLE, fan (Order 251647R91)

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

7

HUB, fan (Order 251645R91) (S/N, Serial Range: 100001-114645)

1шт.

7

HUB, fan (Order 357004R91) (S/N 114646 up)

1шт.

8

70206D

SCREW, oil retaining

1шт.

9

70208D

GASKET

oil retaining screw

1шт.

10

70207D

GASKET

fan hub

1шт.

11

BEARING, fan (Order 251647R91)

1шт.

12

IMPELLER, oil (Order 251647R91)

1шт.

13

70209D

NUT

lock

1шт.

14

70200D

GASKET

fan bearing

1шт.

15

70204D

CAP

fan bearing

1шт.

16

70214D

FAN

1шт.

17

23794R1

SCREW

cap, new to hold new hub

8шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

18

70203D

NUT, double

4шт.

19

70134D

FAN

AND HUB, assembly, 100001 to 114645, Composed of

1шт.

70214D

FAN

1шт.

251645R91

HUB

assembly

1шт.

70203D

NUT

4шт.

70202D

SCREW

8шт.

251647R91

SPINDLE AND BEARING

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

19

356844R91

FAN

AND HUB, assembly (Will work for 358168R91) (S/N 100001 to 114645) Composed of

1шт.

70214D

FAN

1шт.

357004R91

HUB CAP

HUB, assembly

1шт.

70203D

NUT

4шт.

70202D

SCREW

8шт.

251647R91

SPINDLE AND BEARING

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

20

60712D

V-BELT,0.66" W x 35.38" L

Fan (Regular duty) (Optional with 368084R1) 0.66" W x 35.38" L

1шт.

20

368084R1

BELT

fan (COG type) (Heavy duty) (Optional with 60712D)

1шт.

251645R91

HUB

assembly (S/N 100001 to 114645), Composed of

1шт.

70200D

GASKET

1шт.

70207D

GASKET

1шт.

70208D

GASKET

1шт.

HUB (Not serviced separately order 251645R91)

1шт.

70206D

SCREW

1шт.

357004R91

HUB CAP

HUB, assembly (S/N 114646 up), Composed of

1шт.

70200D

GASKET

1шт.

70207D

GASKET

1шт.

70208D

GASKET

1шт.

HUB (Not serviced separately order 357004R91)

1шт.

70206D

SCREW

1шт.

251647R91

SPINDLE AND BEARING, assembly, Composed of

1шт.

BEARING (Not serviced separately order 251647R91)

1шт.

70204D

CAP

1шт.

70200D

GASKET

1шт.

70207D

GASKET

1шт.

IMPELLER (Not serviced separately order 251647R91)

1шт.

70209D

NUT

1шт.

SPINDLE (Not serviced separately order 251647R91)

1шт.
