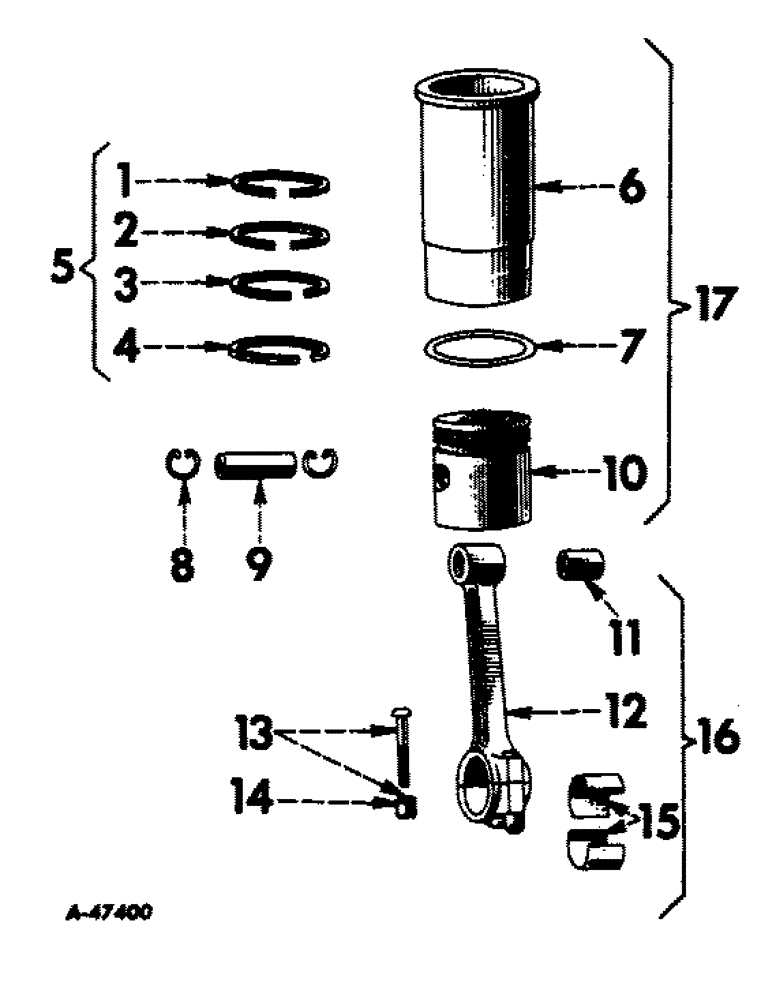

Запчасти Case IH SUPER C (015) - ENGINE, CONNECTING RODS, PISTONS, CYLINDER SLEEVES AND RING SETS (01) - ENGINE

1

366291R1

RING

compression, piston (Top or first groove) (Chrome) (Gasoline or distillate)

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1 and 363377R1

1шт.

1

366642R1

RING, compression, piston (Top or first groove) (Chrome) (Distillate or kerosene)

4шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

1

370154R1

RING

compression, piston (Top or first groove) (Chrome) (Gasoline or distillate)

4шт.

Used with three ring 3-3/16" dia. aluminum pistons, 370147R1, 370149R1, 374294R1 and 374451R1.

1шт.

2

366292R1

RING

compression, piston (Second groove) (Gasoline, distillate and kerosene)

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1 and 363377R1

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

2

370155R1

RING

compression, piston (Second groove) (Gasoline or distillate)

4шт.

Used with three ring 3-3/16" dia. aluminum pistons, 370147R1, 370149R1, 374294R1 and 374451R1.

1шт.

3

366292R1

RING

compression, piston (Third groove) (Distillate or kerosene)

4шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

4

366636R91

RING

oil piston (Third or bottom groove) (Chrome) (Gasoline or distillate)

4шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1 and 363377R1

1шт.

4

370156R91

RING, oil piston (Third or bottom groove) (Chrome) (Gasoline or distillate)

4шт.

Used with three ring 3-3/16" dia. aluminum pistons, 370147R1, 370149R1, 374294R1 and 374451R1.

1шт.

4

366636R91

RING

oil piston (Fourth or bottom groove) (Chrome) (Distillate)

4шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

4

366293R91

RING, oil piston (Fourh or bottom groove) (Chrome) (Kerosene)

4шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

364788R91

RING

SET, piston (Perfect circle 2 in 1 chrome) (Composed of eight compression rings and four oil regulating rings) (Gasoline or distillate)

1шт.

Used with three ring 3-1/8" dia. aluminum pistons, 362867R1, 363375R1 and 363377R1

1шт.

5

354893R92

PISTON RING SET

RING SET, piston (Perfect circle) (Distillate) (Composed of twelve compression rings and four regulating rings) (Optional with 354894R92 and 357679R91)

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

354894R92

PISTON RING SET

RING SET, piston (Wilkening) (Distillate) (Composed of twelve compression rings and four oil regulating rings) (Optional with 354893R92 and 357679R91)

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

357679R91

SET OF RINGS

RING SET, piston (Perfect circle 2 in 1 chrome) (Distillate) (Composed of twelve compression rings and four oil regulating rings) (Optional with 354893R92 and 354894R92)

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

357076R91

RING SET, piston (Perfect circle) (Kerosene) (Composed of twelve compression rings and four oil regulating rings) (Optional with 357080R91)

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

357080R91

RING SET, piston (Wilkening) (Kerosene) (Composed of twelve compression rings and four oil regulating rings) (Optional with 357076R91)

1шт.

Used with four ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

5

370422R91

RING

SET, piston (Perfect circle 2 in 1 chrome) (3-3/16" dia. pistons) (Composed of twelve compression rings and four oil regulating rings) (Gasoline or distillate)

1шт.

Used with three ring 3-1/8" gray iron pistons, 356302R2, 356618R2, 356619R2, 356899R2, 356916R2 and 356917R2.

1шт.

6

SLEEVE, cylinder (Order sleeve, w/piston and rings, assembly for proper fuel and altitude)

4шт.

7

354881R1

SEAL ASSY.

RING, packing, cylinder sleeve

4шт.

8

359321R1

RING, SNAP

SPRING, piston pin retainer

8шт.

9

24414DB

AXLE PIN

PIN, piston (Standard) (Will work for 365043R1)

4шт.

9

53159D

PIN

piston (.005" oversize) (Will work for 365061R1)

4шт.

10

PISTON (Order sleeve, piston, rings, assembly for proper fuel and altitude)

4шт.

11

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

BUSHING, piston pin

4шт.

12

30926DFXA

ROD

connecting, w/two bolts, 363465R11 bushing, 64508D and cap

4шт.

13

363465R11

BOLT,3/8" - 24 x 2 5/16"

connecting rod, w/nut, 363466R1 (Will work for 24412DX)

8шт.

14

53385DCX

CRANK

NUT, connecting rod bolt (Without identifying notches)

8шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

8шт.

14

363466R1

NUT

connecting rod bolt (With identifying notches)

8шт.

15

356304R11

BEARING

connecting rod (2 halves)

4шт.

15

356305R11

CRANKSHAFT BEARING

connecting rod (2 halves) (.030" undersize)

4шт.

15

356306R11

CRANKSHAFT BEARING

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

15

360196R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

15

356307R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

15

367876R91

BEARING SET, connecting rod (Standard) (Consists of four bearings, 356304R11)

1шт.

15

372115R91

KIT

BEARING SET, connecting rod (.030" undersize) (Consists of four bearings, 356305R11)

1шт.

16

30926DFYA

ROD

connecting, 30926DFXA, w/bearing, 356304R11

4шт.

17

370157R91

SLEEVE ASSY

SLEEVE SET, crankcase (Thinwall) (Consists of four sleeves, w/pistons and rings, 370159R91) (Gasoline-standard altitude) (Order package, 374259R91)

1шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

370159R91

SLEEVE ASSY

SLEEVE, cylinder, w/pistons and rings assembly (Thinwall) (Gasoline-standard altitude) (Order Package, 374259R91), Composed of

4шт.

Per notes in hard copy catalog, increased Bore & Piston Set

1шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

370147R1

PISTON

(NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

370154R1

RING

1шт.

370155R1

RING

1шт.

370156R91

RING

1шт.

370152R1

SLEEVE

(NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

374887R91

SLEEVE ASSY

SLEEVE SET, crankcase (Fire crater increased power) (Consists of four sleeves, w/pistons and rings, 374293R91) (Gasoline standard altitude)

1шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

374293R91

PISTON

SLEEVE, cylinder w/pistons and rings, assembly (Fire crater increased power) (Gasoline-standard altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

374294R1

PISTON

(NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

370154R1

RING

1шт.

370155R1

RING

1шт.

370156R91

RING

1шт.

370152R1

SLEEVE

(NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

374888R91

SLEEVE SET, crankcase (Fire crater increased power) (Consists of four sleeves w/pistons and rings 374450R91) (Gasoline-high altitude) (Part of package, 374449R91)

1шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

374450R91

PISTON

SLEEVE CYLINDER, w/pistons and rings, assembly (Fire crater increased power) (Gasoline-high altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

374451R1

PISTON

(NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

370154R1

RING

1шт.

370155R1

RING

1шт.

370156R91

RING

1шт.

370152R1

SLEEVE

(NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

370159R91

SLEEVE ASSY

SLEEVE SET, crankcase (Thinwall) (Consists of four sleeves, w/pistons and rings, 370160R91) (Distillate-standard altitude)

1шт.

It is recommended that tri-metal main bearings be used in conjunction w/foregoing piston and sleeve sets.

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

370160R91

SLEEVE, cylinder, w/piston and rings assembly (Thinwall) (Distillate-standard altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

370149R1

PISTON (NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

370154R1

RING

1шт.

370155R1

RING

1шт.

370156R91

RING

1шт.

370152R1

SLEEVE

(NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

363368R92

SLEEVE ASSY

SLEEVE SET, crankcase (Thinwall) (Consists of four sleeves, w/pistons and rings, 363371R92) (Distillate-high altitude)

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

363371R92

SLEEVE, cylinder, w/piston and rings, assembly (Thinwall) (Distillate-high altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

363375R1

PISTON (NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

366292R1

RING

1шт.

366636R91

RING

1шт.

366291R1

RING

1шт.

356301R1

SLEEVE (NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

356904R93

SLEEVE CYLINDER

SLEEVE SET, crankcase (Thinwall) (Consists of four sleeves, w/pistons and rings, 356903R93 (Kerosene-standard altitude)

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

356903R93

SLEEVE CYLINDER

SLEEVE, cylinder, w/piston and rings, assembly (Thinwall) (Kerosene-standard altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

356899R2

PISTON (NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

366642R1

RING

1шт.

366292R1

RING

2шт.

366293R91

RING

1шт.

356301R1

SLEEVE (NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

17

356907R93

SLEEVE SET, crankcase (Thinwall) (Consists of four sleeves, w/pistons and rings, 356914R93 (Kerosene-high altitude) (No longer available for service)

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

17

356914R93

SLEEVE, cylinder, w/piston and rings, assembly (Thinwall) (Kerosene-high altitude), Composed of

4шт.

For service replacement, of "Thickwall" cylinder sleeve with piston assembly, order sleeve set for proper fuel and altitude.

1шт.

24414DB

AXLE PIN

PIN

1шт.

356916R2

PISTON (NSS)

1шт.

354881R1

SEAL ASSY.

RING

1шт.

366292R1

RING

2шт.

366293R91

RING

1шт.

356301R1

SLEEVE (NSS)

1шт.

359321R1

RING, SNAP

SPRING

2шт.

374259R91

PISTON ASSY.

PACKAGE, fire crater increased power (Consists of distributor change-over kit, 374262R91, and sleeve set, 374887R91) (Gasoline-standard altitude)

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

374449R91

PACKAGE, fire crater increased power (Consists of distributor change-over kit, 374262R91, and sleeve set, 374888R91) (Gasoline-high altitude)

1шт.

These sleeve sets are used only with crankcases (NSS) 354898R1 thru (NSS) 354898R4.

1шт.

370422R93

PISTON RING SET

1шт.
