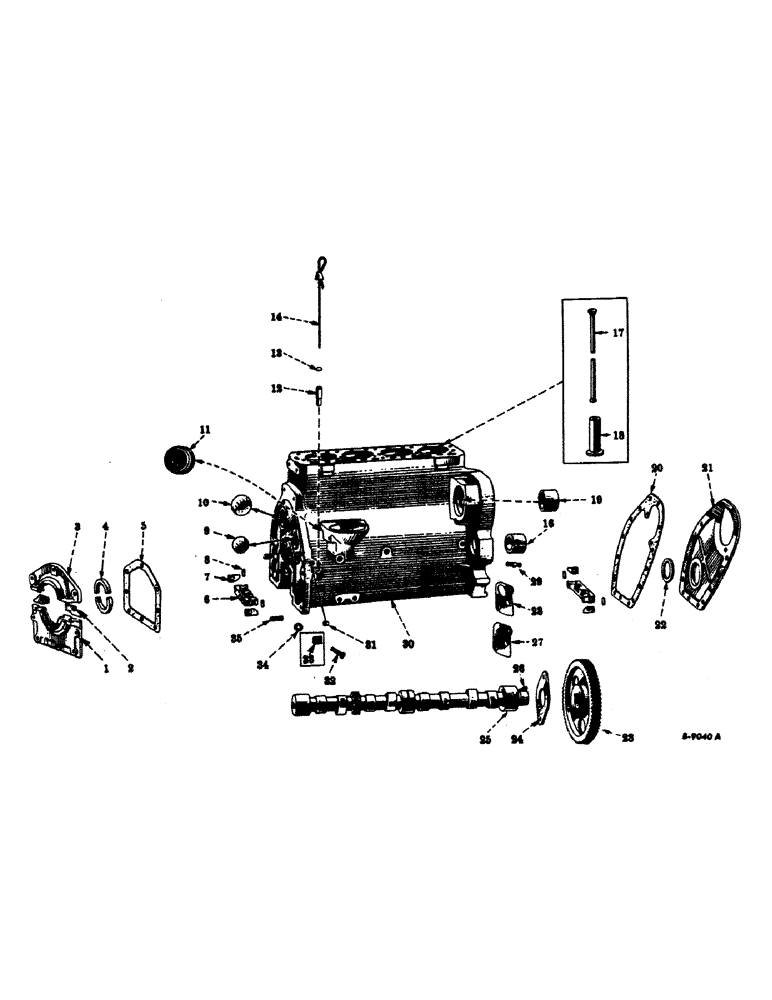

Запчасти Case IH SUPER C (010) - ENGINE, CRANKCASE, FRONT COVER, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

6102D

RETAINER

crankshaft rear oil seal, lower

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 7/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

43447D

GASKET

crankshaft rear oil seal retainer, center

2шт.

3

6101D

RETAINER

crankshaft rear oil seal, upper

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

OIL SEAL, felt, crankshaft, rear

2шт.

5

43448D

GASKET

crankshaft rear oil seal retainer

1шт.

6

6100D

PLATE, crankshaft oil seal retainer, front and rear

2шт.

7

43446D

GASKET

crankshaft oil seal retainer plate

4шт.

8

43445DA

PAD

PLUG, felt, crankshaft oil seal retainer plate

4шт.

9

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8"

1шт.

10

172592

SUPPORT

expansion, 2"

1шт.

11

364665R91

INDICATOR

GAUGE, oil pressure

1шт.

106649

ELBOW,45 Degree, 1/8" NPT Street

street, 45 degrees, M.I., 1/8"

1шт.

12

361555R1

SLEEVE, oil level gage (For tractors equipped with oil level gage)

1шт.

13

34259H

WASHER, felt, oil level gage (For tractors equipped with oil level gage)

1шт.

14

362611R11

GAUGE

GAGE, bayonet type, engine oil level, w/shield and washer, 34259H (For tractors equipped with oil level gage)

1шт.

16

373102R1

BUSHING

camshaft, front (Used only with crankcase 366204R3 (NSS))

1шт.

17

47386D

ROD

push, valve (Optional with 357548R1 and 360213R91)

8шт.

17

357548R1

ROD

push, valve (Optional with 47386D and 360213R91)

8шт.

17

360213R91

ROD

push, valve (Optional with 47386D and 357548R1)

8шт.

18

47384D

TAPPET

valve (Optional with 356979R1)

8шт.

18

356979R1

TAPPET

valve (Optional with 47384D)

8шт.

19

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

ignition unit and governor pinion

1шт.

20

46179DD

GASKET

crankcase front cover

1шт.

21

46122DAX

COVER

crankcase, front, w/oil seal, 49177D

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

179814

SPACER

11шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

12шт.

22

49177D

SEAL

OIL SEAL, crankshaft, front

1шт.

23

6779DB

GEAR

camshaft (66 teeth)

1шт.

24

43249D

PLATE

thrust, camshaft (Optional with 374704R1)

1шт.

24

374704R1

PLATE ASSY.

PLATE, thrust, camshaft (Optional with 43249D)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

353609R2

PACKAGE

CAMSHAFT

1шт.

26

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Woodruff, no. 91

1шт.

27

251067R1

COVER

hydraulic pump pad (For tractors not equipped with touch-control)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

350708R1

GASKET

hydraulic pump pad cover (For tractors net equipped with touch-control)

1шт.

29

251066R1

STUD, crankcase front cover

1шт.

30

366294R93

CRANKCASE, assembly (Note A), Composed of

1шт.

17091R1

BOLT

6шт.

364789R1

BOLT

9шт.

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

1шт.

373102R1

BUSHING

1шт.

8073DA

CAP (NSS)

2шт.

8074DA

CAP (NSS)

1шт.

251067R1

COVER

1шт.

366204R3

CRANKCASE (NSS)

1шт.

15945D

DOWEL

2шт.

106649

ELBOW,45 Degree, 1/8" NPT Street

1шт.

362611R11

GAUGE

GAGE

1шт.

350708R1

GASKET

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

143997

PLUG

2шт.

172576

PLUG,Exp, 1 5/8"

1шт.

63556R1

PLUG

1шт.

365101R1

PLUG

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

365936R1

SLEEVE

1шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

15шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

143997

PLUG

pipe, sq-soc., stl., 1/4"

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., CI, 1/4" (Optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (Optional with 103866)

1шт.

31

50410DA

PLUG

crankcase oil header, 1/8"

3шт.

32

360077R91

BOLT

17091R1, crankshaft bearing cap, w/washer, 58516H (Will work for 357937R1) (S/N, Serial Range: 165621-202427)

6шт.

32

17091R1

BOLT, hex-hd., self-locking, 1/2-13NC x 3" (Crankshaft bearing cap) (S/N 202428 up)

6шт.

33

30638D

BAR

LOCK, crankshaft bearing cap bolt (S/N, Serial Range: 100001-202427

6шт.

34

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt (S/N 202428 up)

6шт.

35

15945D

DOWEL, clutch housing

2шт.

374337R91

SET

SLEEVE SET (Gasoline-standard altitude)

1шт.

374492R91

PISTON ASSY.

SLEEVE SET (Gasoline-high altitude)

1шт.

366653R91

SLEEVE SET (Distillate-high altitude)

1шт.

366687R91

SLEEVE SET (Distillate-standard altitude)

1шт.

366652R91

SLEEVE SET (Kerosene-standard altitude)

1шт.

366655R91

SLEEVE SET (Kerosene-high altitude)

1шт.
