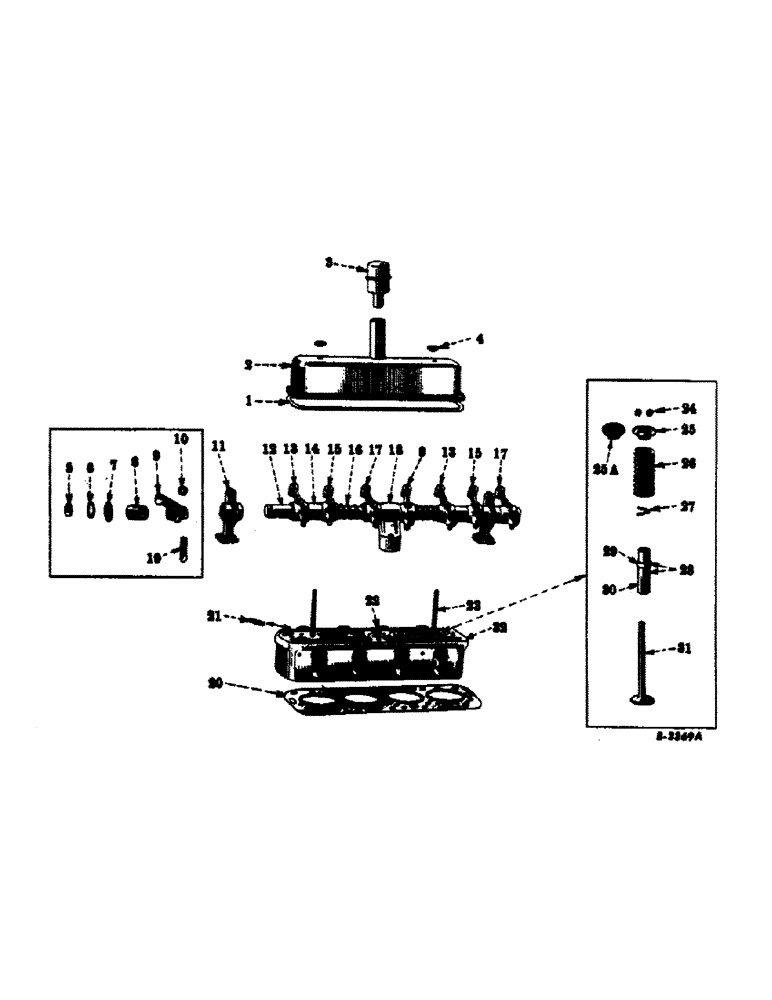

Запчасти Case IH SUPER C (007) - ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

43378DB

GASKET

valve cover

1шт.

2

356352R92

COVER, valve

1шт.

3

49049DX

BREATHER

cylinder head (Optional with 364901R91)

1шт.

3

364901R91

BREATHER

cylinder head (Optional with 49049DX)

1шт.

3

364901R91GV

CAP

Value, Breather Cap

1шт.

4

62866D

WASHER,5/64" Thk x 13/32" ID

valve stud nut (Optional with 357374R11)

2шт.

4

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve stud nut (Optional with 62886D)

2шт.

5

172528

PLUG,Exp, 9/16"

expansion, 9/16"

2шт.

6

43375D

RING

snap, valve lever shaft

2шт.

7

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

8

24564DA

BUSHING

valve lever (Used only with forged type valve levers)

2шт.

9

357289R91

LEVER

intake or exhaust valve (Welded type) (Will work for 63197DAX and 43365DBX)

2шт.

9

357291R92

LEVER

intake or exhaust valve, LH, 357289R91, w/screw, 16067DA and nut, 133093R1 (Will work for 43365DBYA)

2шт.

10

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw (Will work for 38763H)

8шт.

11

42099DA

BRACKET

valve lever shaft end

2шт.

12

352521R11

SHAFT

valve lever, w/two plugs, 172528

1шт.

13

357290R91

LEVER

intake or exhaust valve (Welded type) (Will work for 63196DAX and 43364DBX)

2шт.

13

357292R92

LEVER

intake or exhaust valve, RH, 357290R91, w/screw, 16067DA and nut, 133093R1 (Will work for 43364DBYA)

2шт.

14

43373D

SPACER

valve lever (Optional with 356776R1)

2шт.

14

356776R1

SPACER, valve lever (Optional with 43373D)

2шт.

15

357289R91

LEVER

intake or exhaust valve (Welded type) (Will work for 63195DAX and 43363DBX)

2шт.

15

357291R92

LEVER

intake or exhaust valve LH, 357289R91, w/screw, 16067DA and nut, 133093R1 (Will work for 43363DBYA)

2шт.

16

24541D

SPRING

valve lever

2шт.

17

357290R91

LEVER

intake or exhaust valve (Welded type) (Will work for 63198DAX and 43366DBX)

2шт.

17

357292R92

LEVER

intake or exhaust valve RH, 357290R91, w/screw, 16067DA and nut, 133093R1 (Will work for 43366DBYA)

2шт.

18

6089DA

BRACKET

valve lever shaft, center

1шт.

19

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

20

366300R1

CYLINDER HEAD GASKET

GASKET, cylinder head

1шт.

21

251174R1

STUD

cylinder, Serial Range: head-manifold

6шт.

22

355373R1

STUD

valve lever shaft oiler

1шт.

103026

NUT,3/8"-24, G5

1шт.

23

45574D

STUD

valve cover

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

42026D

KEY

valve spring collar

16шт.

25

42040D

CUP

SEAT, valve spring, upper (Will work for 47278D) (4 used with roto cap)

8шт.

25a

356841R91

ROTATOR

ROTO CAP, exhaust valve (Gasoline)

4шт.

26

24544DA

SPRING

valve (4 used with roto cap)

8шт.

26

366304R1

SPRING

valve (4 used with roto cap) (Used with cylinder head, 251173R95)

8шт.

26

356842R1

SPRING

valve (Used with roto cap)

4шт.

27

42098D

RETAINER

valve stem

8шт.

28

356583R11

VALVE GUIDE

GUIDE, valve, 356583R1, w/seat, 356588R1 (Will work for 6088DR)

8шт.

29

356588R1

RETAINER

SEAT, valve spring lower

8шт.

30

356583R1

GUIDE

valve (Used with valve spring lower seat, 356588R1)

8шт.

31

57797D

VALVE

intake (Gasoline)

4шт.

31

366302R1

VALVE

intake (Gasoline) (Used with cylinder head, 251173R95)

4шт.

31

57798D

VALVE

exhaust (Gasoline)

4шт.

31

366303R1

VALVE

exhaust (Gasoline) (Used with cylinder head, 251173R95)

4шт.

31

351647R1

STD EXHAUST VALVE

VALVE, exhaust (Distillate or kerosene)

4шт.

31

351648R1

VALVE

intake (Distillate or kerosene)

4шт.

32

261295R21

HEAD, cylinder, w/studs and valve guides, assembly (Distillate or kerosene), Composed of

1шт.

356587R1

GUIDE (NSS)

8шт.

261295R2

HEAD (NSS)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

356588R1

RETAINER

SEAT

8шт.

45574D

STUD

2шт.

251174R1

STUD

6шт.

355373R1

STUD

1шт.

32

355046R21

HEAD, cylinder, w/studs and valve guides, assembly (Gasoline) (Order 251173R95), Composed of

1шт.

356587R1

GUIDE (NSS)

8шт.

355046R2

HEAD (NSS)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

356588R1

RETAINER

SEAT

8шт.

45574D

STUD

2шт.

251174R1

STUD

6шт.

355373R1

STUD

1шт.

32

251173R95

HEAD, cylinder, w/valves and springs, assembly (Gasoline) Composed of

1шт.

366299R11

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

356588R1

RETAINER

SEAT

8шт.

366304R1

SPRING

8шт.

366302R1

VALVE

4шт.

366303R1

VALVE

4шт.

32

366299R11

HEAD, cylinder, assembly (Gasoline) (Part of cylinder head assembly, 251173R95), Composed of

1шт.

356587R1

GUIDE (NSS)

8шт.

366299R1

HEAD (NSS)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

45574D

STUD

2шт.

251174R1

STUD

6шт.

355373R1

STUD

1шт.

32

351641R94

HEAD, cylinder, 261295R21, w/valves and springs, assembly (Distillate or kerosene), Composed of

1шт.

261295R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

24544DA

SPRING

8шт.

351647R1

STD EXHAUST VALVE

VALVE

4шт.

351648R1

VALVE

4шт.

364789R1

BOLT

cylinder head (Part of 251173R95)

9шт.

4097DA

NUT

cylinder head stud

9шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

24433D

STUD

cylinder head

9шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt (Part of 251173R95)

9шт.

356840R91

ATTACHMENT, valve rotator, Composed of

1шт.

356841R91

ROTATOR

ROTO CAP

4шт.

356842R1

SPRING

4шт.

356314R96

GASKET SET, engine

1шт.

357476R92

GASKET KIT

GASKET SET, valve grinding

1шт.
