Запчасти Case IH SUPER C (214) - ATTACHMENTS, COTTON PICKER MOUNTING ATTACHMENT, SPECIAL, SPARK ARRESTER AND EXHAUST PIPE Attachments

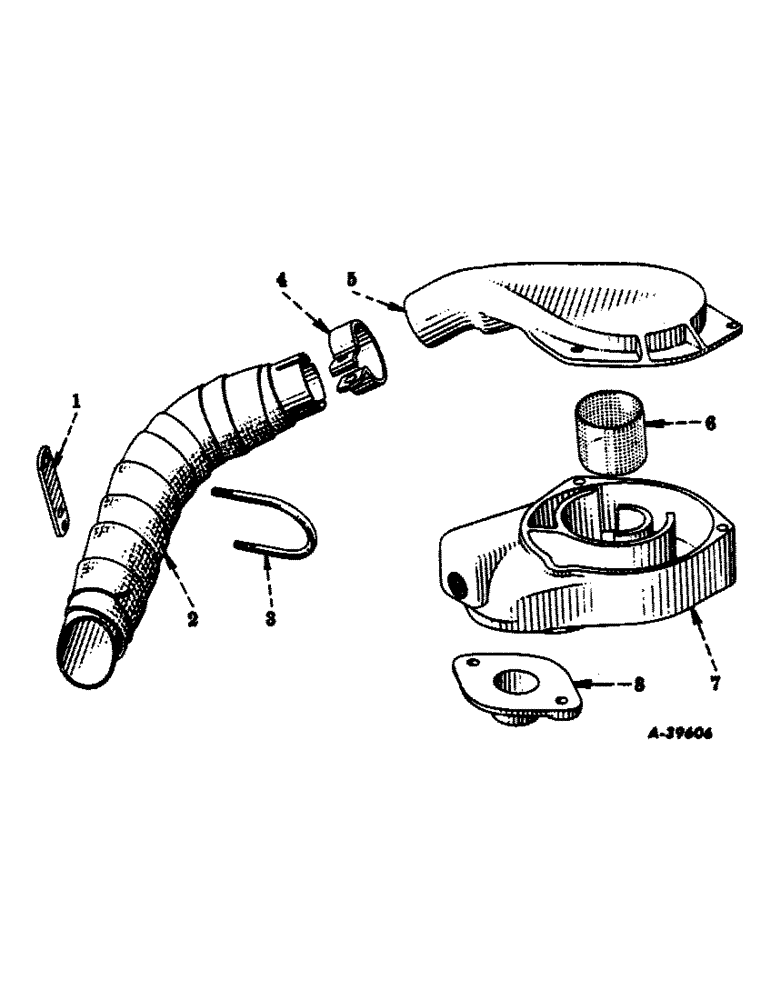

Схема запчастей Case IH SUPER C - (214) - ATTACHMENTS, COTTON PICKER MOUNTING ATTACHMENT, SPECIAL, SPARK ARRESTER AND EXHAUST PIPE Attachments
6
2
3
4
8
7
5
1

Артикул

Название

Примечание

Количество

359775R95

COTTON PICKER MOUNTING ATTACHMENT - consists of parts neccessary to adapt a Farmall Super C tractor, equipped with hydraulic remote control or fast hitch attachments, for use with "C-14" cotton picker

1шт.

359776R91

ARRESTER, spark (Orchard type) assembly, Composed of

1шт.

359779R1

BAFFLE

1шт.

359777R11

BODY (NSS)

1шт.

357753R1

FLANGE

1шт.

217-442

PLUG,3/4" - 14

1шт.

359778R1

TOP

1шт.

1

359782R1

BRACKET, lower exhaust pipe clamp

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (To be used in the upper left bolt hole of the fan bracketand water outlet when the exhaust pipe clamp bracket is applied)

1шт.

2

359780R11

PIPE, exhaust, w/asbestos tape and wire

1шт.

3

359781R1

CLAMP, exhaust pipe (Lower)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

357758R1

CLAMP, exhaust pipe (Upper)

1шт.

114774

NUT, hex., 1/2NC

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2NC x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

359778R1

TOP, spark arrester

1шт.

93082H

NUT

"Seez-Pruf" 3/8-24NF

3шт.

181384

BOLT,Hex, 3/8" - 24 x 2 3/4"

SCREW, cap, hex-hd., 3/8-24NF x 2-3/4"

2шт.

114-259

BOLT,Hex, 3/8" - 24 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3-1/2"

1шт.

6

359779R1

BAFFLE, spark arrester

1шт.

7

359777R11

BODY, spark arrester, w/plug, 103869

1шт.

93082H

NUT

"Seez-Pruf", 3/8-24NF

1шт.

217-442

PLUG,3/4" - 14

pipe, std., sq-hd., 3/4"

1шт.

181385

BOLT,Hex, 3/8" - 24 x 3", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3"

1шт.

8

357753R1

FLANGE, spark arrester adapter

1шт.

360221R11

BEARING

crankshaft, rear (2 halves) (Standard)

1шт.

360216R11

CRANKSHAFT BEARING

BEARING, crankshaft, center (2 halves) (Standard)

1шт.

658605R91

BEARING, pillow block, front frame axle support, assembly (Optional with 658964R91)

2шт.

658964R91

BEARING, pillow block, front frame axle support, assembly (Optional with 658605R91)

2шт.

357778R1

BOWL

fuel strainer (Metal)

1шт.

656830R92

COVER, exhaust pipe opening, w/two rivets 135234

1шт.

9092D

COVER

power take-off

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16NC x 4-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

360679R1

GASKET

bowl, fuel strainer

1шт.

60581D

GASKET

power take-off cover

1шт.

657731R1

PIPE, basket hydraulic valve rod

1шт.

432465

PLUG, dust, electrical instrument mounting panel, 17/32" (Fuse housing pipe)

1шт.

432491

PLUG, dust, electrical instrument mounting panel, 2-3/32" (Lighting switch hole)

1шт.

Выбрано товаров: 41
