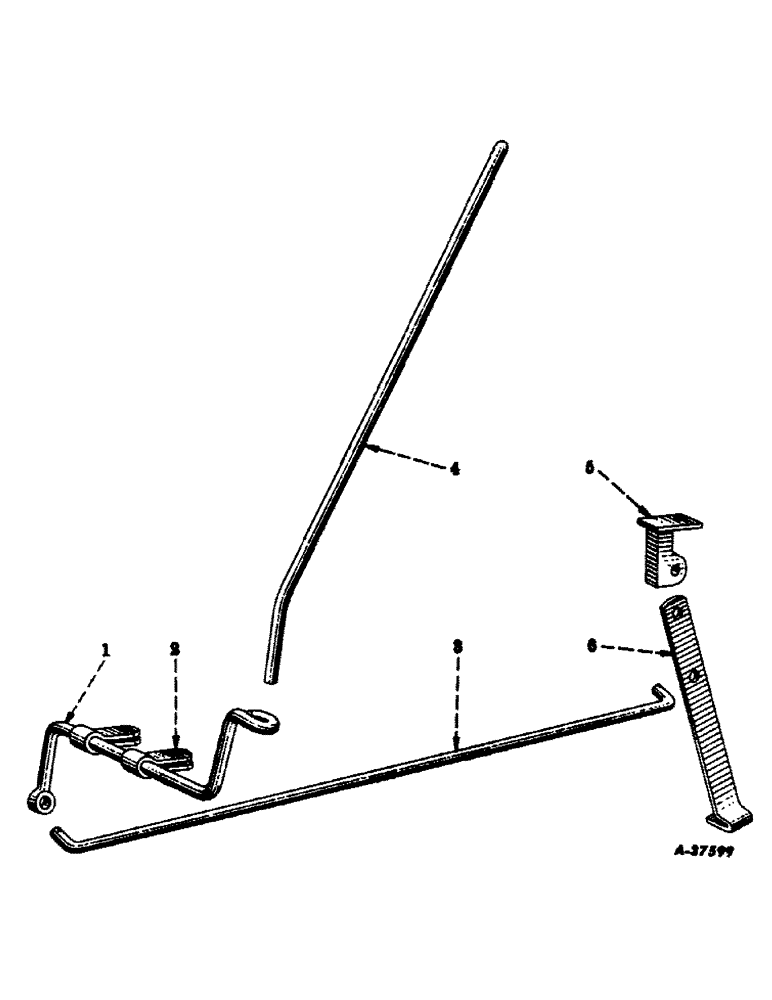

Запчасти Case IH SUPER C (213) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, CLUTCH INTERLOCK AND POWER TAKE-OFF SHIFTER LEVER Attachments

1

362230R11

LEVER, clutch interlock (A,B)

1шт.

2

362232R1

BEARING, clutch interlock lever (A,B,C)

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4" (A,B,C)

2шт.

3

362236R1

ROD, clutch interlock (A,B,C)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (A,B,C) 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD. x .065 ga) (A,B,C) 3/8"

4шт.

4

362231R1

LEVER, power take-off and clutch interlock shifter (A,B,C)

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, (A,B,C) 5/32" x 1", Slotted

1шт.

5

362233R11

BRACKET, interlock arm (A,B,C)

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16" (A,B,C)

1шт.

6

362235R1

ARM, clutch pedal interlock (A,B,C)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (A,B,C) 3/32" x 5/8"

1шт.

18415R1

PIN, rod end, 3/8" dia. x 27/32" long (Interlock arm bracket) (A,B,C)

1шт.
