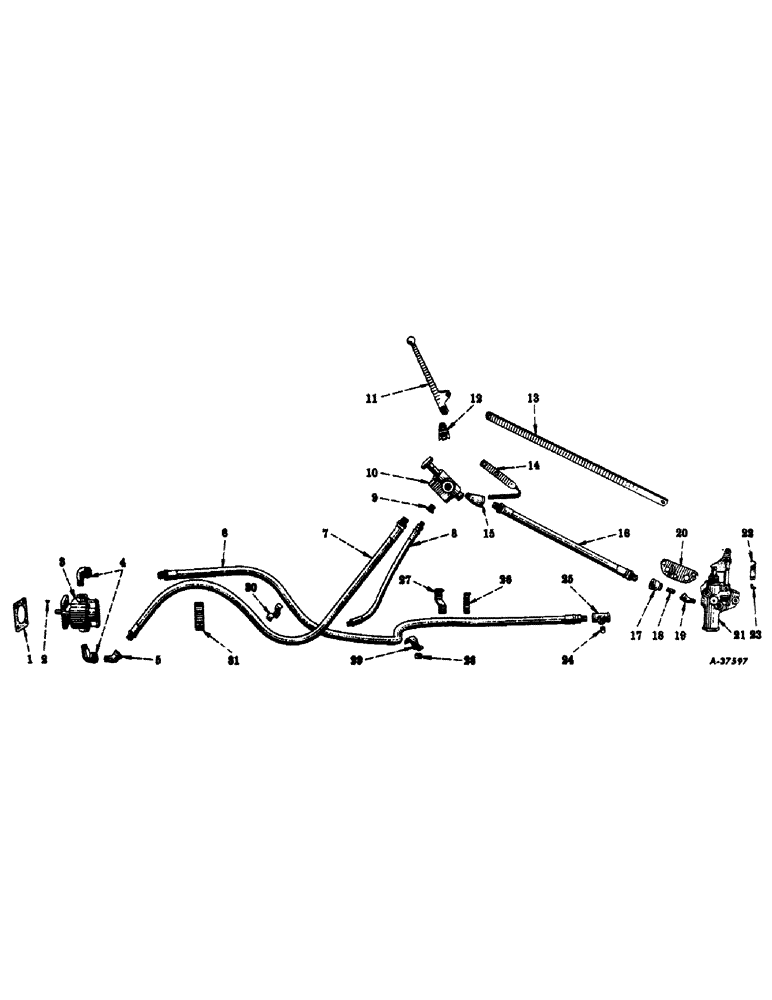

Запчасти Case IH SUPER C (209) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, HYDRAULIC MOTOR, HOSES AND COUPLINGS AND SELECTOR VALVE Attachments

1

362289R1

GASKET, hydraulic motor mounting (C)

1шт.

2

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Hydraulic motor drive shaft (C) #6, 5/32" x 5/8", HT

1шт.

3

362288R91

MOTOR, hydraulic (For components see list of parts under detail of "Hydraulic Motor") (C)

1шт.

103026

NUT,3/8"-24, G5

(C) 3/8"-24, G5

4шт.

110730

LOCK WASHER

WASHER, lock, 3/8" (C)

4шт.

4

364148R1

ELBOW

street, hydraulic motor (Automotive pipe 1/2" x 90 degrees) (Will work for 444484) (C)

3шт.

5

444496

ELBOW, street, hydraulic motor (Automotive pipe 1/2" x 45 degrees) (C)

1шт.

6

362255R91

HOSE, hydraulic motor to reservoir (Will work for 362226R91 and 362227R91) (C)

1шт.

7

362222R91

HOSE, selector to hydraulic motor (Will work for 362223R91 and 362224R91) (C)

1шт.

8

362219R91

HOSE, selector to check valve (Will work for 362220R91 and 362221R91) (C)

1шт.

9

144038

BUSHING, reducing pipe, 1/2 x 1/4" (C) 1/2" NPT Male x 1/4" NPT Fem

1шт.

10

362211R91

VALVE, selector, assembly (For components see list of parts under details of "Selector Valve") (C)

1шт.

11

356830R4

LEVER, hydraulic auxiliary control valve remote control (C)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (See note) (C) 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, drilled, 3/8 x 1-25/32" (See note) (C)

1шт.

12

356831R1

BRACKET, hydraulic auxiliary control valve lever (See note) (C)

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

(See note) (C) Hex, 1/4"-20 x 1 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (See note) (C) 1/4"

2шт.

13

360379R1

CHANNEL

LINK, hydraulic auxiliary control valve lever connecting (C)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (C) 3/32" x 3/4"

1шт.

1161Y

PIN, rod end, 5/16 x 23/32" (C)

1шт.

441014R1

Pin, 5/16" x 7/8", Slotted (C) 5/16" x 7/8", Slotted

1шт.

14

362212R1

CLIP

BRACKET, selector valve support (C)

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

(C) Hex, 5/16"-18 x 9/16", G5, Full Thd

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, 3/8-24NF x 1" (C)

2шт.

103314

WASHER, plain, 13/32" I.D. x 13/16" O.D. x no. 16 ga.

2шт.

15

364148R1

ELBOW

street, hydraulic motor (Automotive pipe 1/2" x 90 degrees) (Will work for 444484) (C)

3шт.

16

355496R92

HOSE, valve to selector (Will work for 361760R91 and 359329R91) (C)

1шт.

17

179752

COUPLING, reducing pipe hydraulic auxiliary control valve (1/2 x 1/4") (C)

1шт.

18

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, pipe, hydraulic auxiliary control valve (1/4 x 7/8") (C)

1шт.

19

444492

ELBOW, street, hydraulic auxiliary control valve (Automotive pipe, 1/4" x 45 degrees) (C)

1шт.

20

356803R1

GASKET

hydraulic auxiliary control valve (See note) (C)

1шт.

21

356788R92

VALVE, hydraulic auxiliary control (For components see list of parts under detail of "Hydraulic Auxiliary Control Valve") (See note) (C)

1шт.

50474DA

PLUG

drain, holo-chrome, std-hex-socket, 1/4" (See note) (C)

1шт.

444860

KEY

drain, automotive, hex-socket, 1/4" (See note) (C)

1шт.

357874R2

SCREW, cap, auxiliary control valve (See note) (C)

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16NC x 1-7/8" (See note) (C)

1шт.

22

362209R1

LATCH, control valve lever (C)

1шт.

23

362210R1

SCREW, cap, control valve lever latch (C)

2шт.

18411R1

NUT,#10-32, GB

control valve lever latch (C)

2шт.

24

192067

LUBE NIPPLE

NIPPLE, pipe, low pressure hose (3/8 x 1") (C)

1шт.

25

179616

ROD

TEE, reducing pipe, low pressure hose (1/2 x 3/8) (C)

1шт.

26

356809R1

BRACKET, hose support, L.H. (For tractors equipped with one-piece battery box) (C)

1шт.

27

360383R1

BRACKET, hose support, L.H. (For tractors equipped with two-piece battery box) (C)

1шт.

28

356836R1

SPACER, hose bracket (C)

1шт.

29

362290R2

BRACKET, hose support, R.H. (C)

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (C)

1шт.

30

362229R1

CLAMP, hose front (C)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF (C)

1шт.

149495

SCREW,Sl Rnd Hd, 1/4" - 28 x 1/2"

slotted, machine-rd., 1/4-28NF x 1/2" (C)

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (C) 1/4"

1шт.

31

362228R1

GUIDE, hose, rear (C)

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.
