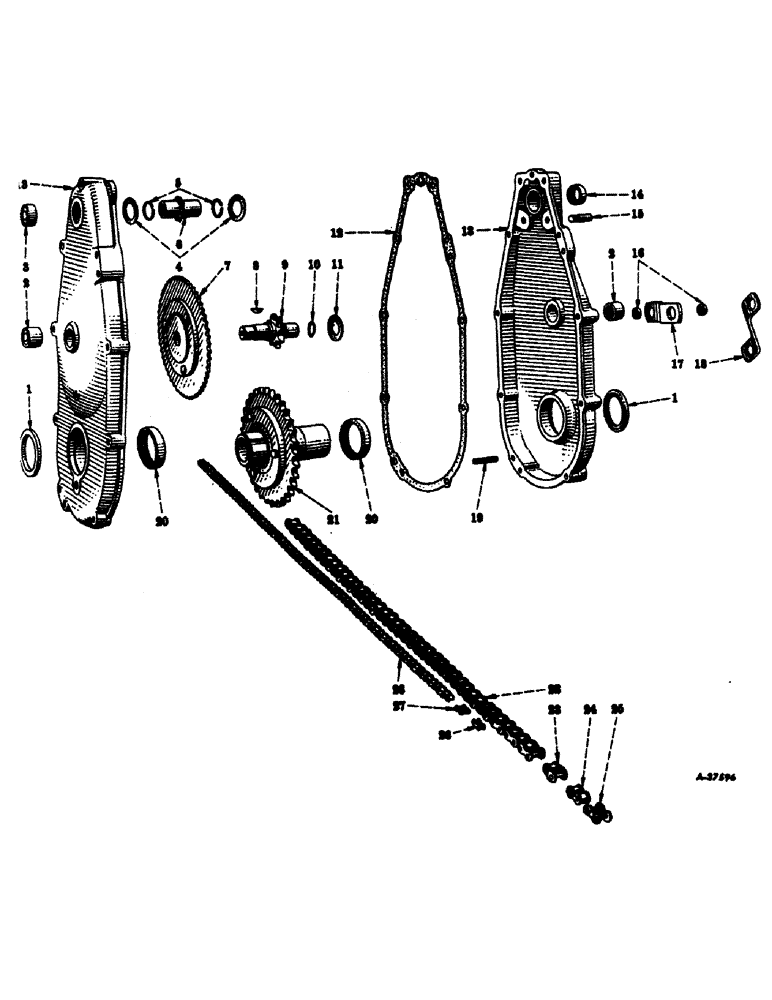

Запчасти Case IH SUPER C (206) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL Attachments

55212D

BEARING

CLUTCH RELEASE BEARING (Aetna ball brg. co. A-801), or

1шт.

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

CLUTCH RELEASE BEARING (Nice 5015-1), or

1шт.

361292R91

BALL BEARING,52.39mm ID x 84.15mm OD x 19.05mm W

CLUTCH RELEASE BEARING (B.C.A. 2062-14)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , CLUTCH RELEASE SLEEVE, or 1/8"-27 x .66 lg

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

CLUTCH RELEASE SLEEVE LUBRICATOR

1шт.

6116D

SLEEVE

CLUTCH RELEASE SLEEVE

1шт.

364681R91

TRANSMISSION, hydra-creeper, assembly (A,B,C), Composed of ref. nos. 1 thru 28 including the attachting parts plus the following -

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

362289R1

GASKET

1шт.

12456

CIRCLIP

KEY

1шт.

362288R91

MOTOR

1шт.

103026

NUT,3/8"-24, G5

4шт.

110730

LOCK WASHER

WASHER

4шт.

1

362255R91

OIL SEAL, driven sprocket (Optional with 362256R91) (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

1

362256R91

OIL SEAL, driven sprocket (Optional with 362255R91) (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

2

362252R91

BEARING, needle, idler pinion (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

3

362253R91

BEARING, needle, drive sprocket (Closed end)

1шт.

4

362259R1

WASHER, drive sprocket retainer (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

5

362260R1

RING, SNAP

RING, drive sprocket retainer (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

6

362261R1

SPROCKET, drive (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

7

362242R11

SPROCKET, idler, w/hub and three rivets, 104083 (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

solid, rd-hd., 1/4 x 3/4" (A,B,C)

3шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Idler pinion #6, 5/32" x 5/8", HT

1шт.

9

362265R1

PINION, idler (8 teeth) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

10

362266R1

RING, idler pinion retainer (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

11

362267R1

WASHER, idler pinion retainer (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

12

362258R1

GASKET, housing (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

13

362249R92

HOUSING AND COVER, assembly (A,B,C), Composed of

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING

1шт.

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING

2шт.

362252R91

BEARING

2шт.

362253R91

BEARING

1шт.

362247R1

COVER (NSS)

1шт.

362258R1

GASKET

1шт.

362246R11

HOUSING (NSS)

1шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

143923

PLUG

1шт.

362255R91

SEAL

2шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

362250R1

STUD

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

143923

PLUG, pipe, sq-hd., stl., 1/8" (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

(A,B,C) Hex, 5/16"-18 x 1 3/8", G5

4шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

(A,B,C) Hex, 5/16"-18 x 1 5/8", G5

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

(A,B,C) Hex, 5/16"-18 x 1 7/8", G5

3шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, (A,B,C) 5/16"

9шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

14

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle, drive sprocket (Open end) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

15

362250R1

STUD, hydraulic motor mounting (A,B,C)

4шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

16

362206R1

SPACER, hydra-creeper transmission support bracket (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

17

362207R1

BRACKET, hydra-creeper transmission support (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(A,B,C) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

350830R31 clutch release assembly subs to 364790R91, when 364790R91 is used springs part number 355795R2 are removed and not used. R. Dunn 13 Aug. 1997

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga. (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) (A,B,C) 3/8"

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

18

362208R1

BRACKET, hydra-creeper transmission support (For tractors equipped with belt pulley attachment) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(A,B,C) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga. (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) (A,B,C) 3/8"

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

19

141223

DOWEL,5/16" x 1"

PIN, dowel, 5/16 x 1" (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

20

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

driven sprocket (A,B,C)

2шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

21

362243R12

SPROCKET, driven, w/hub and three rivets, 104100 (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

18410R1

PIN, roll, driven sprocket (1/8 x 1-3/4") (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

solid, rd-hd., 5/16 x 1-1/8" (A,B,C)

3шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

22

362268R91

CHAIN (AG)

CHAIN, driven sprocket (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

23

1315D

LINK

off-set, assembly (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

1360D

PIN, off-set, link (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

24

1309D

LINK

roller, assembly (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

25

1310D

LINK

connecting, assembly (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

1311D

CLIP, connecting link (5/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

26

1764D

LINK

rollerless, assembly (3/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

27

1765D

LINK

connecting, assembly (3/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

1768D

CLIP, connecting link (3/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.

28

362262R91

CHAIN (AG)

CHAIN, drive sprocket (3/8" pitch) (A,B,C)

1шт.

362202R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system and power take-off attachment)

1шт.

362203R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, hydraulic remote control attachment and power take-off attachment)

1шт.

362204R91 ATTACHMENT, hydra-creeper (for tractors equipped with touch-control system, fast-hitch attachment and power take-off attachment)

1шт.
