(205) - ATTACHMENTS, SWINGING DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH

Запчасти Case IH SUPER C (205) - ATTACHMENTS, SWINGING DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH Attachments

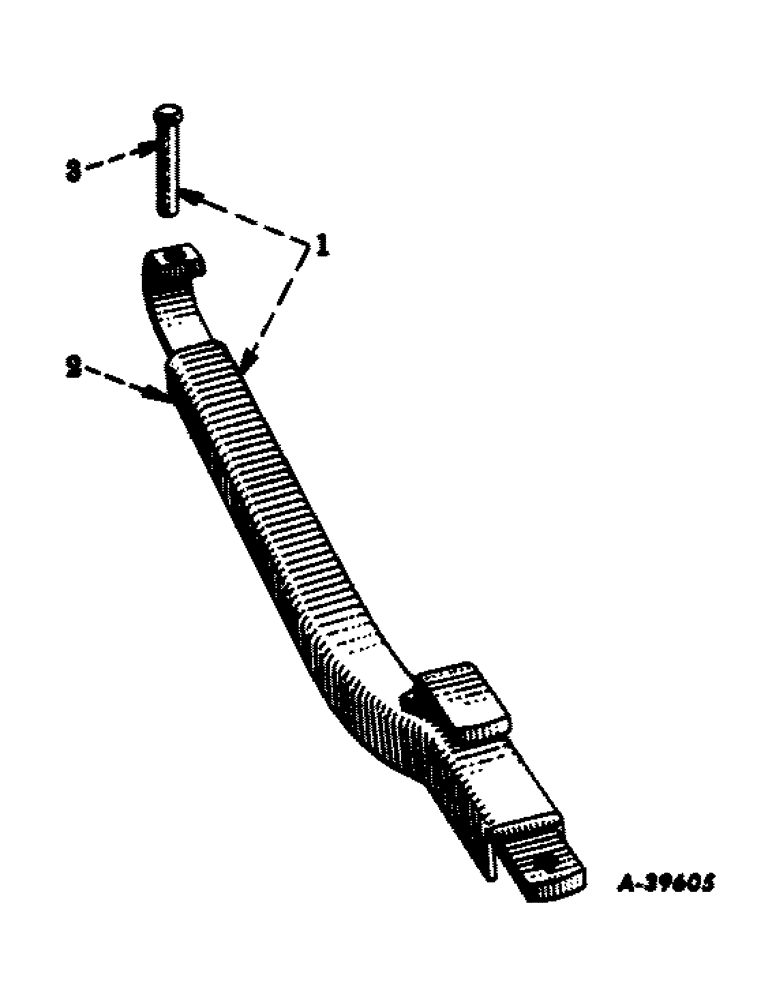

Схема запчастей Case IH SUPER C - (205) - ATTACHMENTS, SWINGING DRAWBAR, FOR TRACTORS EQUIPPED WITH FAST-HITCH Attachments
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

359795R91

ATTACHMENT, swinging drawbar

1шт.

2

359580R11

DRAWBAR, swinging

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

359584R1

PIN, pivot, swinging drawbar

1шт.

PO18499

COTTER PIN

cotter, quick-attachable

1шт.
