Запчасти Case IH SUPER C (201) - ATTACHMENTS, FAST-HITCH, SPECIAL, HYDRAULIC CYLINDER, BELL CRANK ADJUSTING LINK AND ROCKSHAFT Attachments

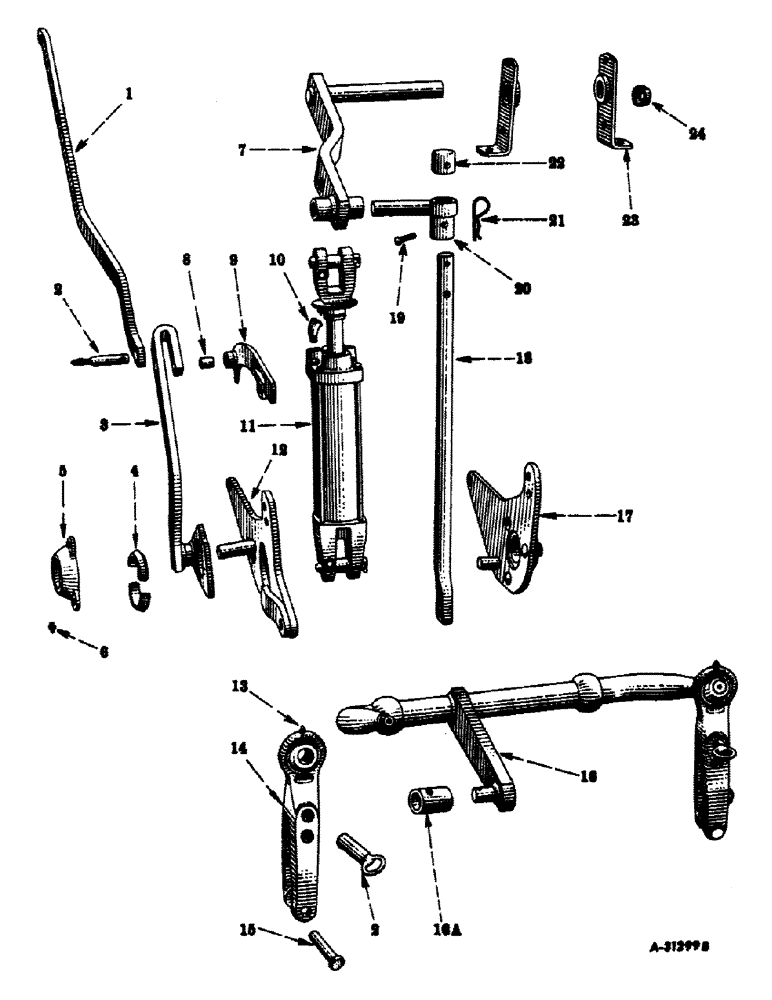

Схема запчастей Case IH SUPER C - (201) - ATTACHMENTS, FAST-HITCH, SPECIAL, HYDRAULIC CYLINDER, BELL CRANK ADJUSTING LINK AND ROCKSHAFT Attachments
5
19
1
22
21
4
2
17
24
7
11
13
16a
9
16
18
3
10
6
12
2
8
15
23
14
20

Артикул

Название

Примечание

Количество

1

517824R1

LINK, bellcrank adjusting (A,B,C,D)

1шт.

2

517810R12

PIN,19.05mm OD x 104.39mm L

quick attachable (A,B,C,D)

3шт.

3

517823R91

BELLCRANK, leveling (A,B,C,D)

1шт.

15583R1

SCREW,#3 Hd, 1/2" - 13 x 1 1/2", G2, Full Thd

BOLT, plow, no. 3, 1/2-13NC x 1-1/2" (A,B,C,D)

3шт.

114774

NUT, hex., 1/2-13NC (A,B,C,D)

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A,B,C,D) 1/2"

3шт.

4

517782R2

BEARING

RACE, bearing, inside (A,B,C,D)

4шт.

5

517783R1

RACE, bearing, outside (Order 518511R1 together with two 517782R2) (A,B,C,D)

2шт.

518511R1

CAP

RACE, bearing, outside (Will work for 517783R1 with two 517782R2) (A,B,C,D)

4шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (A,B,C,D)

2шт.

7

517808R11

ARM, rocker, hydraulic cylinder (A,B,C,D)

1шт.

13158R1

PIN, cotter, self-opening, 5/16 x 2" (A,B,C,D)

1шт.

Q121

WASHER

plain, 1-9/32" I.D. x 2" O.D. x no. 16 ga. (A,B,C,D)

1шт.

8

518482R1

BUSHING, leveling lock arm bearing (Will work for PO20460) (A,B,C,D)

1шт.

9

517825R11

ARM, leveling lock (A,B,C,D)

1шт.

114820

NUT, hex., 5/8-11NC (A,B,C,D)

1шт.

362016R1

SCREW, cap, hex-hd., 5/8-11NC x 3" (A,B,C,D)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C,D) 5/8"

1шт.

10367H

WASHER

plain, 21/32" I.D. x 1-1/8" O.D. x no. 16 ga. (A,B,C,D)

1шт.

10

454097

ELBOW

street, automotive pipe, stl., cd-pltd., 1/4" (45 degrees) (Optional with 360451R1) (A,B,C)

1шт.

10

360451R1

ELBOW, street, check valve to cylinder hose (Optional with 454097) (A,B,C)

1шт.

11

360994R91

CYLINDER

hydraulic (2-1/2 x 8") assembly (Will work for 359561R94) (For components see list of parts under details of hydraulic cylinder) (A,B,C)

1шт.

12

517795R21

PLATE, attaching, L.H. (A,B,C,D)

1шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4" (A,B,C,D)

2шт.

362014R1

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2" (A,B,C,D)

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C,D) 5/8"

3шт.

Q3483

WASHER

plain, 1-9/32" I.D. x 2" O.D. x no. 11 ga. (A,B,C,D)

1шт.

PO12898

WASHER

plain, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga. (A,B,C,D)

1шт.

13

110161

FITTING, lubrication, 3/16" (A,B,C,D)

2шт.

14

517971R92

LINK, lateral, w/fitting, 110161 (A,B,C,D)

2шт.

17077R1

PIN, roll, 3/8" x 1-15/16" (A,B,C,D)

2шт.

15

359577R1

PIN, lateral link (A,B,C,D)

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening (A,B,C,D) 3/16" x 1"

2шт.

16

517803R11

ROCKSHAFT (A,B,C,D)

1шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4" (A,B,C,D)

1шт.

Q162

WASHER

plain, 1-5/32" I.D. x 1-3/4" O.D. x no. 16 ga. (A,B,C,D)

1шт.

16a

517834R1

BUSHING

lift arm stud (A,B,C,D)

1шт.

17

517796R21

PLATE, attaching, R.H. (A,B,C,D)

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, sq-neck, 1/2-13NC x 1-1/2" (A,B,C,D)

3шт.

114774

NUT, hex., 1/2-13NC (A,B,C,D)

3шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4" (A,B,C,D)

1шт.

362014R1

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2" (A,B,C,D)

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A,B,C,D) 1/2"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C,D) 5/8"

3шт.

PO12898

WASHER

plain, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga.

1шт.

18

517802R1

ROD, lift (A,B,C,D)

1шт.

19

517838R1

PIN, lift locking (A,B,C,D)

1шт.

20

517789R11

EYEBOLT, link swivel (A,B,C,D)

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self-opening (A,B,C,D) 1/4" x 1 1/2"

1шт.

Q3481

WASHER

plain, 1-1/32" I.D. x 1-1/2" O.D. x no. 16 ga. (A,B,C,D)

1шт.

21

517843R1

COTTER PIN

PIN, cotter, quick-attachable (A,B,C,D)

1шт.

22

517781R1

CAP, lifting rod (A,B,C,D)

1шт.

17079R1

LOCK PIN,1/2" x 1 7/8", Slotted

Pin, (A,B,C,D) 1/2" x 1 7/8", Slotted

1шт.

23

359585R21

BRACKET, cylinder rocker arm, w/bushing, 359587R1 (A,B,C)

2шт.

103026

NUT,3/8"-24, G5

(A,B,C) 3/8"-24, G5

4шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

(A, B, C) Hex, 3/8"-16 x 2 1/4", G5

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8" (A,B,C)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A,B,C) 3/8"

6шт.

24

359587R1

BUSHING, cylinder rocker arm (A,B,C)

2шт.

Выбрано товаров: 59
