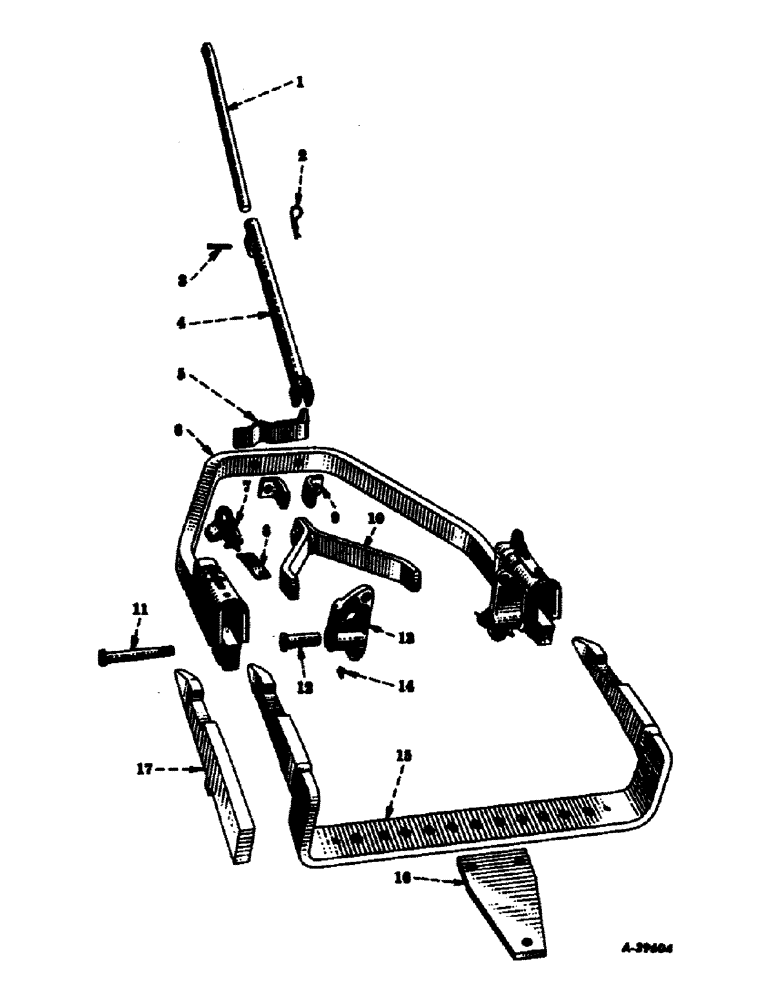

Запчасти Case IH SUPER C (198) - ATTACHMENTS, FAST-HITCH, SPECIAL, DRAWBAR, DRAFT LINK AND YOKE Attachments

1

518144R1

ROD, hitch link (A, B, C, D)

1шт.

2

517843R1

COTTER PIN

PIN, cotter, quick-attachable (A,B,C,D)

1шт.

3

518135R1

PIN, draft link adjusting (Used with 518143R11) (A,B,C,D)

1шт.

3

518477R1

PIN, draft link adjusting (Used with 518476R11) (A,B,C,D)

1шт.

4

518143R11

PIPE, draft link (Will work for 518143R11 with 518477R1) (A,B,C,D)

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, hex., 5/8-11NC x 2-1/2" (A,B,C,D)

1шт.

114820

NUT, hex., 5/8-11NC (A,B,C,D)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C,D) 5/8"

1шт.

5

518138R11

BRACKET, draft link (A,B,C,D)

1шт.

17629R1

BOLT,Hex, 5/8" - 11 x 3"

hex., 5/8-11NC x 3" (A,B,C,D)

1шт.

114820

NUT, hex., 5/8-11NC (A,B,C,D)

2шт.

179936

SCREW,Hex, 5/18" - 11 x 3 1/4"

cap, hex-hd., 5/8-11NC x 3-1/4" (A,B,C,D)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C,D) 5/8"

2шт.

6

518145R12

YOKE (A,B,C,D)

1шт.

7

517786R11

LATCH

w/pin, 576485R1 (A,B,C,D)

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

(A,B,C,D) 1/4" x 1 1/4", Slotted

1шт.

8

517833R1

SPRING

latch (A,B,C,D)

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(A,B,C,D) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A,B,C,D) 3/8"

2шт.

Q1597

WASHER

plain, 13/32" I.D. x 3/4" O.D. x no. 16 ga. (A,B,C,D)

2шт.

9

518134R1

BRACKET, ball joint (A,B,C,D)

2шт.

15193R1

BOLT, carriage, sq-neck, 3/4-10NC x 3-3/4" (A,B,C,D)

1шт.

114821

NUT, hex., 3/4-10NC (A,B,C,D)

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (A,B,C,D) 3/4"

1шт.

10

518141R91

BAIL, hitch adjusting (A,B,C,D)

1шт.

11

517842R1

BOLT, link pivot (A,B,C,D)

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, slotted, hex., 3/4-16NF (A,B,C,D)

2шт.

13092R1

PIN, cotter, self-opening, 1/8 x 1-1/4" (A,B,C,D)

2шт.

518568R1

WASHER, link pivot bolt (A,B,C,D)

2шт.

12

517831R1

BUSHING

link and swivel (A,B,C,D)

2шт.

13

517784R1

STOP, link and swivel (A,B,C,D)

2шт.

14

109350

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (A,B,C,D)

2шт.

15

517829R11

DRAWBAR (A,B,C,D)

1шт.

16

360184R1

PLATE, extension, drawbar (For tractors equipped with drawbar extension plate attachment) (A,B,C)

1шт.

These parts are not included in the fast hitch field attachments.

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF (A,B,C)

2шт.

These parts are not included in the fast hitch field attachments.

1шт.

271636

SEAL KIT

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2" (A,B,C)

2шт.

These parts are not included in the fast hitch field attachments.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (A,B,C) 3/4"

2шт.

These parts are not included in the fast hitch field attachments.

1шт.

17

518576R21

BEAM, coupling (Use to adapt allied implements for use with fast-hitch by welding this to, or by drilling holes and bolting this to the implement) (A,B,C)

1шт.

These parts are not included in the fast hitch field attachments.

1шт.

360378R1

HOOK, latch (Illustrated with tools) (A,B,C)

1шт.

360377R1

CLIP, spring, latch hook (A,B,C)

1шт.

360376R1

CLIP, latch hook hold-down (A,B,C)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(A,B,C) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.
