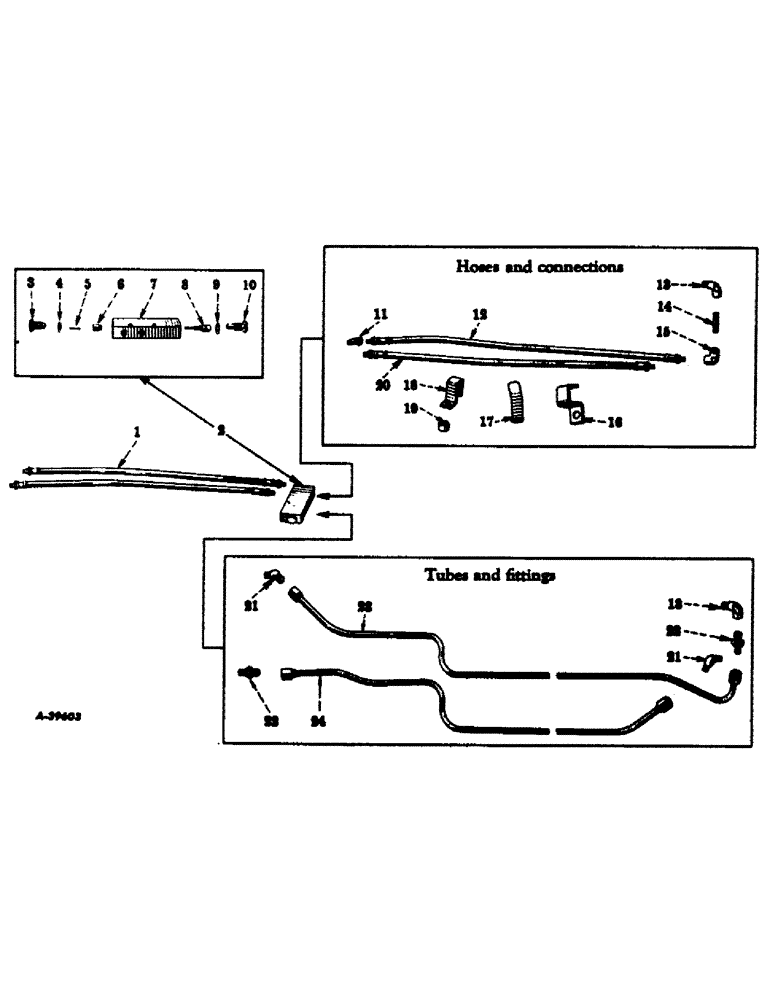

Запчасти Case IH SUPER C (195) - ATTACHMENTS, FAST-HITCH, SPECIAL Attachments
№
Артикул
Название
Примечание
Количество
360185R91
ATTACHMENT, drawbar extension plate, provides standardized power take-off hitch, Composed of
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
360184R1
PLATE
1шт.
218197
NUT,3/4"-16, G5
2шт.
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
SCREW
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
1
360393R91
HOSE,0.25" ID x 29.25", SAE 100R1
HYDRAULIC HOSE - Control valve short, Will work for 361072R91 and 361953R91, Check & connections 0.25" ID x 29.25", SAE 100R1
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
2
360402R92
BLOCK
check valve, assembly, Composed of, connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
353953R1
SHAFT
ACTUATOR, check valve & connections
1шт.
360390R21
BLOCK, check valve & connections
1шт.
360391R1
PLUG, check valve & connections
1шт.
360392R1
PLUG, check valve & connections
1шт.
355967R1
O-RING,0.364" ID x 0.003" Width
RING, check valve & connections
1шт.
350668R1
VALVE SPRING
SPRING, check valve & connections
1шт.
354057R2
VALVE
check valve & connections
1шт.
13727D
GASKET
WASHER, check valve & connections
2шт.
3
360391R1
PLUG, check valve block, short, connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
4
13727D
GASKET
WASHER, plug, check valve block, connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
5
350668R1
VALVE SPRING
SPRING, check valve, connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
6
354057R2
VALVE
check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
7
360390R21
BLOCK, check valve, connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
8
353953R1
SHAFT
ACTUATOR, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
9
355967R1
O-RING,0.364" ID x 0.003" Width
RING, seal, check valve actuator,connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
10
360392R1
PLUG, check valve block, long, connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
11
454097
ELBOW
street, automotive pipe, stl., cd-pltd., 45 degrees, 1/4", optional with 360451R1, check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
11
360451R1
ELBOW, street, check valve to cylinder hose, optional with 454097, connections
1шт.
These parts are not included in battery ignition unit assembly.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
12
360394R91
HOSE ASSY.
HOSE, control valve, long, 1/4" I.D. x 31-3/4" long, check & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
13
444480
ELBOW
street, automotive pipe, brs., 90 degrees, 1/4", optional with 454109, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
13
454109
ELBOW
street, automotive pipe, stl., cd-pltd., 90 degrees, 1/4", optional with 444480, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
14
192053
NIPPLE, pipe, long, cd-pltd., 1/4 x 7/8", check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
15
454085
ELBOW, street, automotive pipe, stl., cd-pltd., 90 degrees, 1/4", optional with 444504, check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
15
444504
ELBOW, street, automotive pipe, brs., 90 degrees, 1/4", optional with 454085, check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
16
360383R1
CLAMP, auxiliary control valve hose, S/N 176523 up, check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
17
356809R1
CLAMP, auxiliary control valve hose, S/N 100001 to 176522, check & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
18
356835R1
BRACKET, auxiliary control valve hose, check & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
413-630
BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5
hex-hd., 3/8-16NC x 1-7/8", Check valve & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
19
356836R1
SPACER, auxiliary control valve hose bracket, check & connections
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
20
360393R91
HOSE,0.25" ID x 29.25", SAE 100R1
HYDRAULIC HOSE - Control valve short, Will work for 361072R91 and 361953R91, Check & connections 0.25" ID x 29.25", SAE 100R1
1шт.
These parts are not included in the fast hitch field attachments.
1шт.
Use only on tractors equipped with hoses and connections.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
21
9402805
ELBOW
control valve to check valve tube, connections
2шт.
Used only on tractors equipped with tubes and fittings.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
22
9402708
HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF
CONNECTOR, control valve to check valve tube, connections
2шт.
Used only on tractors equipped with tubes and fittings.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
23
361191R11
TUBE, control valve to check valve, long, w/two nuts, and two sleeves, connections
1шт.
Used only on tractors equipped with tubes and fittings.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
24
361190R11
TUBE, control valve to check valve short w/two nuts and two sleeves, connections
1шт.
Used only on tractors equipped with tubes and fittings.
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
359552R1
ARM, rockshaft, R.H., illustrated with rockshaft, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
15347D
NUT, rockshaft, check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
359554R1
PIN
rockshaft arm clevis, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
PO18500A
PIN
cotter, quick attachable, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
356831R1
BRACKET, auxiliary control valve lever, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
179801
BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5
Check valve & connections Hex, 1/4"-20 x 1 1/2", G5
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Check valve & connections 1/4"
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
358111R92
CABLE
switch to rear light, illustrated with lighting and starting system, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
61813D
CLIP
rear light cable, illustrated with lighting and starting system, check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
356803R1
GASKET
auxiliary control valve, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
356834R12
GUARD, hose auxiliary control valve, ilustrated with seat, seat support and tool box, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
SCREW, cap, hex-hd., 1/4-20NC x 3/4", check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
95-11028
WASHER,1/4"
plain, 9/32 I.D. x 5/8" O.D. x no. 16 ga., check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
356830R4
HANDLE, auxiliary control valve operating, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
52893H
CLEVIS PIN,3/8" x 1.781"
PIN, rod end, dld., 3/8 x 1-25/32", check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), , Check valve & connections 3/32" x 3/4"
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
360379R1
CHANNEL
LINK, connecting, auxiliary control valve, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
1161Y
PIN, rod end, dld., 5/16 x 23/32", check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), , Check valve & connections 3/32" x 3/4"
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
RING, seal, manifold front flange, illustrated with auxiliary control valve, check & connections
4шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
357874R2
SCREW, cap, auxiliary control valve, illustrated with auxiliary control valve, check & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
360478R11
SUPPORT, rear light, illustrated with headlight and rear light supports, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
103026
NUT,3/8"-24, G5
Check valve & connections 3/8"-24, G5
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
181370
BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5
SCREW, cap, hex-hd., 3/8-24NF x 1-1/4", check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, , Check valve & connections 3/8"
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
359572R92
SUPPORT, seat and tool box, illustrated with seat, seat support and tool box, check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
356779R91
MANIFOLD
TUBES, manifold, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
cap, hex-hd., 3/8-16NC x 1-1/4", Check valve & connections
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, , Check valve & connections 3/8"
2шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
356788R92
VALVE, auxiliary control, assembly, illustrated with auxiliary control valve, check & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
179846
LEVER
hex., 3/8-16NC x 1-7/8", Check valve & connections
1шт.
360434R94 ATTACHMENT, fast hitch (for tractors equipped with touch-control system) (S/N 100001 to 171175) ::1
1шт.
360933R93 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 171176 to 193534) ::1
1шт.
360934R94 ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (S/N 193535 up) ::1
1шт.
Выбрано товаров: 264
