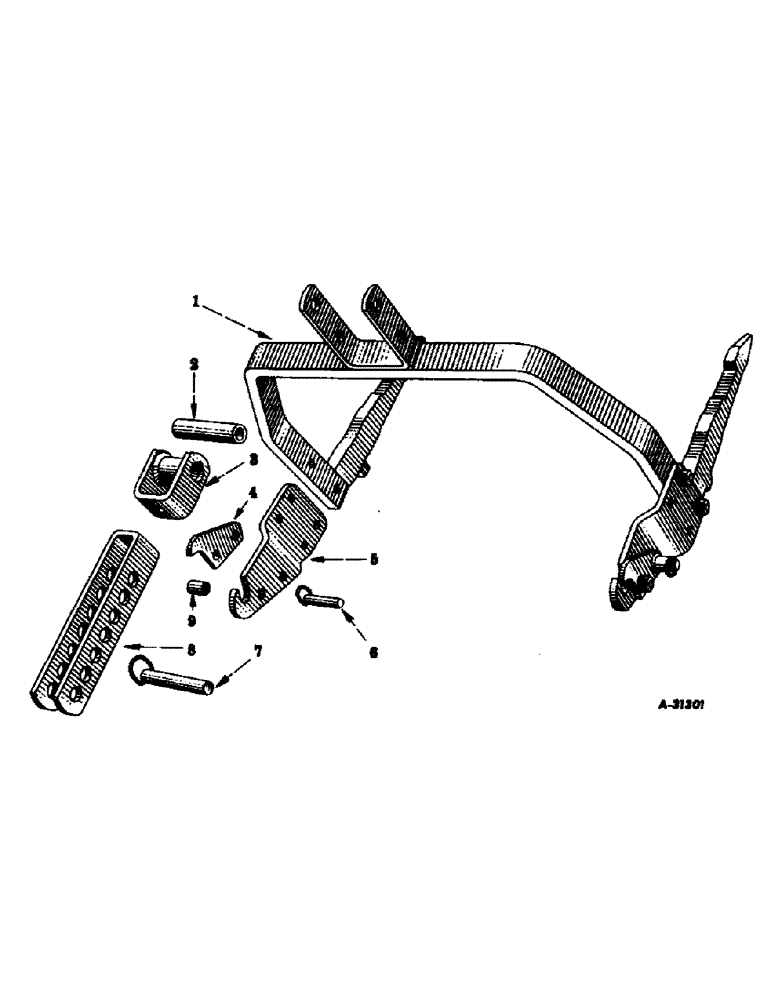

Запчасти Case IH SUPER C (194) - ATTACHMENTS, THREE POINT ADAPTER UNIT, SPECIAL Attachments

518117R91

THREE-POINT-ADAPTER UNIT (For adapting allied implements to Farmall Super-C tractor equipped with fast-hitch)

1шт.

1

517859R12

YOKE, attaching

1шт.

17867R11

BOLT

hex., regular, 3/4-10UNC x 5-3/4", w/nut

1шт.

114821

NUT, hex., 3/4-10NC

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

517867R1

SPACER, yoke bracket

1шт.

3

517854R11

STRAP, pivot

1шт.

4

517865R91

PLATE, latch, left

1шт.

4

517866R91

PLATE, latch, right

1шт.

15058R11

BOLT (SPREADER)

BOLT, carriage, 5/8-11NC x 1-3/4", w/nut

2шт.

218442

NUT, jam, 5/8-11NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

551177R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x no. 16 ga.

2шт.

5

517861R1

PLATE, pivot, left

1шт.

5

517862R1

PLATE, pivot, right

1шт.

17552R11

BOLT

hex., regular, 5/8-11UNC x 2-1/4", w/nut

4шт.

114820

NUT, hex., 5/8-11NC

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

517810R12

PIN,19.05mm OD x 104.39mm L

locking, w/ball and ring

1шт.

7

517853R12

PIN

yoke bracket, w/ball and ring

1шт.

8

517860R1

STRAP, spacing

1шт.

17082R11

BOLT, machine, dld., 5/8-11UNC x 1-3/8", w/nut (Spacing strap to pivot strap)

1шт.

427630

PLUG

NUT, hex., slotted, 5/8-11NC

1шт.

13092R1

PIN, cotter, 1/8 x 1-1/4"

1шт.

9

PO16351

SPACER, latch plate

1шт.
