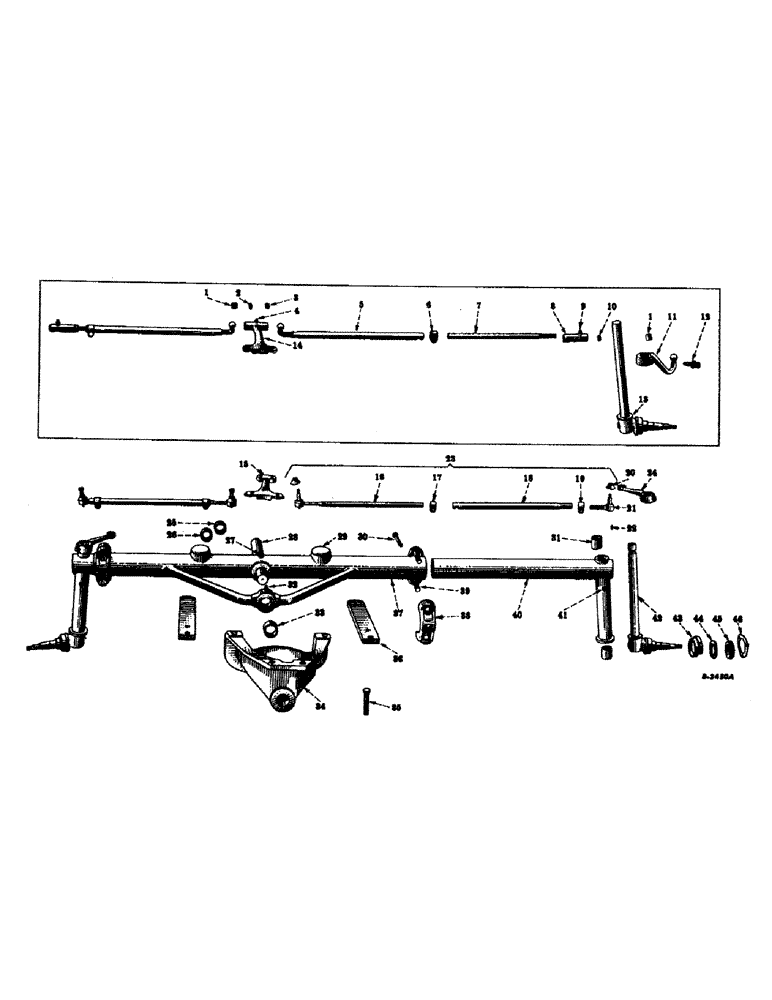

Запчасти Case IH SUPER C (184) - ATTACHMENTS, ADJUSTABLE WIDE FRONT AXLE ATTACHMENT, SPECIAL Attachments

1

57875D

SEAT

adjusting, tie rod ball (A)

3шт.

2

57873D

SEAT, steering arm tie rod ball, center (A)

1шт.

3

57874D

CAP

SEAT, steering arm tie rod ball, end (A)

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (3/4" long) (Optional with 119512) (A) 1/8"-27 x .66 lg

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (3/4" long) (Optional with 109461) (A)

1шт.

5

352493R11

TUBE, tie rod (A)

2шт.

6

352494R1

COLLAR CLAMP

CLAMP, tie rod (A)

2шт.

103027

NUT, hex., 7/16-20NF (A)

2шт.

181406

BOLT,Hex, 7/16" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2" (A)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A) 7/16"

2шт.

7

352492R1

BAR

TIE ROD (A)

2шт.

114499

NUT, hex., jam, 3/4-16NF (A)

2шт.

8

48280DB

END

tie rod (A)

2шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), (A) 1/8" x 2"

2шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (31/64" long) (Optional with 110347) (A) 1/4"-28 NPT x .54" lg

2шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (31/64" long) (Optional with 109454) (A)

2шт.

1

43468D

SEAT

tie rod ball (A)

2шт.

11

351805R1

ARM, steering knuckle, L.H. (A)

1шт.

11

351806R1

ARM, steering knuckle, R.H. (A)

1шт.

12

43466DB

SET SCREW

SCREW, set, steering knuckle arm (A)

2шт.

114498

JAM NUT,Jam, 5/8"-18, G5

(A) Jam, 5/8"-18, G5

2шт.

13

352489R91

SPINDLE

KNUCKLE, steering, w/deflector, 43462D, oil seal, 43463D and washer, 49118DA (A)

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, (A) 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (A) 1/8" x 1 1/4"

2шт.

Q1538

WASHER

steel, plain, 5/8" (A)

2шт.

14

352491R1

ARM, steering gear (A)

1шт.

425-1110

NUT,5/8"-18, G5

(A) 5/8"-18, G5

2шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), (A) 1/8" x 2"

1шт.

181482

SCREW, cap, hex-hd., 5/8-18NF x 1-3/4" (A)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A) 5/8"

2шт.

15

356599R2

ARM, steering gear (B,C)

1шт.

425-1110

NUT,5/8"-18, G5

(B, C) 5/8"-18, G5

2шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-18NF x 1-3/4" (B,C), Fine Thread

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (B,C) 5/8"

2шт.

16

356601R21

ROD

TIE ROD, w/end, cover, 358209R1, nut, 102647 and pin, 103385 (B,C)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, (B,C) 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (B and C) 1/8" x 1"

2шт.

17

43747D

CLAMP

tie rod (B,C)

2шт.

271505

BODY

hex., 7/16-20NF (B,C)

2шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4" (B,C)

2шт.

NLS

NO LONGER SERVICED

LOCK, (B and C) Ext Tooth, 7/16"

2шт.

18

356602R1

TUBE, tie rod (B) 1.005" OD, 18.687" Length

2шт.

18

358419R1

TUBE, tie rod (C) 0.766" ID, 0.875 - 1.005" OD, 21.625" Length

2шт.

19

356543R1

CLAMP

tie rod (B,C)

2шт.

103026

NUT,3/8"-24, G5

(B,C) 3/8"-24, G5

2шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2" (B,C)

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8" (B,C)

2шт.

20

358209R1

COVER

dust, tie rod end (B,C)

4шт.

21

356540R91

END

tie rod, w/cover, 358209R1, nut, 102647 and pin, 103385 (B,C)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, (B,C) 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), (B and C) 1/8" x 1"

2шт.

22

1094545

FITTING, lubrication, straight, 1/4" (31/64" long) (Optional with 110347) (B,C)

4шт.

22

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (31/64" long) (Optional with 109454) (B,C)

4шт.

23

356600R92

TIE ROD, adjustable, assembly (Less reference no. 22) (B), Composed of

2шт.

43747D

CLAMP

1шт.

356543R1

CLAMP

1шт.

356540R91

END

1шт.

103026

NUT,3/8"-24, G5

1шт.

425-117

NUT,7/16"-20, G5

1шт.

356601R21

ROD

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW

1шт.

356602R1

TUBE 1.005" OD, 18.687" Length

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

1шт.

114607

LOCK, Ext Tooth, 7/16"

1шт.

23

358418R92

TIE ROD, adjustable, assembly (Less ref. 22), Composed of

2шт.

43747D

CLAMP

1шт.

356543R1

CLAMP

1шт.

356540R91

END

1шт.

103026

NUT,3/8"-24, G5

1шт.

271505

BODY

1шт.

356601R21

ROD

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW

1шт.

358419R1

TUBE 0.766" ID, 0.875 - 1.005" OD, 21.625" Length

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

1шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

1шт.

24

356535R2

ARM

steering knuckle, L.H. (B,C)

1шт.

34

356536R2

ARM

steering knuckle, R.H. (B,C)

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

(B,C) #15, 1/4" x 1", HT

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2" (B,C)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B,C) 1/2"

2шт.

25

353253R1

BUSHING

front axle pivot, front (A,B,C)

1шт.

26

353252R1

BUSHING

front axle pivot, rear (A,B,C)

1шт.

27

12308R91

FITTING

lubrication, 67-1/2 degree angle (27/32" long) (For tractors equipped with nipple, 352500R1) (A,B,C)

1шт.

27

109357

FITTING, lubrication, 90 degree angle (1-3/16" long) (For tractors not equipped with nipple, 352500R1) (A,B,C)

1шт.

28

352485R2

SHAFT, front axle pivot (A,B,C)

1шт.

29

352482R1

GROMMET

RUBBER, front axle bumper (A,B,C)

2шт.

30

59280D

AXLE PIN

PIN, front axle extension clamp (A,B,C)

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), (A,B,C) 1/8" x 7/8"

2шт.

31

356609R1

BUSHING,31.42mm ID x 35.89mm OD x 44.45mm L

steering knuckle post (Will work for 60385DR) (A,B)

4шт.

32

12309R91

FITTING, lubrication, 67-1/2 degree angle, 1/8" (7/8" long) (Drive type) (Optional with 443571) (A,B,C)

1шт.

32

443571

FITTING

lubrication, 67-1/2 degree angle, 1/8" (7/8" long) (Drive type) (Optional with 12309R91) (A,B,C)

1шт.

33

353254R1

BUSHING

stay rod pivot (A,B,C)

1шт.

34

352475R1

BRACKET, axle mounting (A,B,C)

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4" (A,B,C)

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A,B,C) 5/8"

4шт.

35

6749

PIN

headed, 1/2 x 3-5/16" (A,B,C)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (A,B,C) 3/16" x 1"

1шт.

36

352495R1

STOP, front axle bumper (A,B,C)

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4" (A,B,C)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A,B,C) 1/2"

4шт.

37

352476R91

AXLE, front (46-3/8") w/stay rod, assembly, (A,C), Composed of

1шт.

352477R11

AXLE (NSS)

1шт.

352481R1

BRACKET (NSS)

2шт.

353253R1

BUSHING

1шт.

353252R1

BUSHING

1шт.

353254R1

BUSHING

1шт.

352483R1

ROD (NSS)

1шт.

352482R1

GROMMET

RUBBER

2шт.

37

356593R91

AXLE, front (40-3/8") w/stay rod, assembly (B), Composed of

1шт.

356594R11

AXLE (NSS)

1шт.

352481R1

BRACKET (NSS)

2шт.

353252R1

BUSHING

1шт.

353253R1

BUSHING

1шт.

353254R1

BUSHING

1шт.

352483R1

ROD (NSS)

1шт.

352482R1

GROMMET

RUBBER

2шт.

38

59279D

CLAMP, front axle extension (A,B,C)

4шт.

39

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

front axle extension clamp (A,B,C)

4шт.

425-1110

NUT,5/8"-18, G5

(A, B, C) 5/8"-18, G5

4шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8" (Will work for 103325) (A,B,C)

4шт.

40

352486R92

EXTENSION, front axle, w/two bushings, 356609R1 (A,C)

2шт.

40

356595R92

EXTENSION, front axle, w/two bushings, 356609R1 (B)

2шт.

41

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (3/4" long) (Optional with 119512) (Will work for 16949R91) (For tractors equipped with front axle extension, 352486R91 or 356595R91) (A,B,C) 1/8"-27 x .66 lg

2шт.

41

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (3/4" long) (Optional with 109461) (For tractors equipped with front axle extension, 352486R91 or 356595R91) (A,B,C)

2шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (31/64" long) (Optional with 110347) (Tractors equipped with front axle extension, 352486R92 or 356595R92) (A,B,C) 1/4"-28 NPT x .54" lg

2шт.

41

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (31/64" long) (Optional with 109454) (Tractors equipped with front axle extension, 352486R92 or 356595R92) (A,B,C)

2шт.

42

356597R92

KNUCKLE, steering, w/deflector, 43462D, oil seal, 43463D and washer, 49118DA (B,C)

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, (B and C) 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1538

WASHER

steel, plain, 5/8" (B,C)

2шт.

43

43462D

DEFLECTOR

dust, steering knuckle (A,B,C)

2шт.

44

49118DA

WASHER,46.02mm ID x 64.29mm OD x 4.78mm Thk

felt, front wheel (A,B,C)

2шт.

45

43463D

OIL SEAL

OIL SEAL, front wheel (Optional with 358769R91 and 359788R91) (A,B,C)

2шт.

45

358769R91

OIL SEAL

front wheel (Optional with 43463D and 359788R91) (A,B,C)

2шт.

45

359788R91

OIL SEAL

front wheel (Optional with 43463D and 358769R91) (A,B,C)

2шт.

46

49116D

GASKET,0.79mm Thk

front wheel hub cap (A,B,C)

2шт.

352496R93

CRANK, starting, w/pin, 15204D (Special) (A,B,C)

1шт.

352500R1

FITTING

NIPPLE, grease, front axle pivot (Order 109357) (A,B,C)

1шт.

15204D

PIN, starting crank (A,B,C)

1шт.
