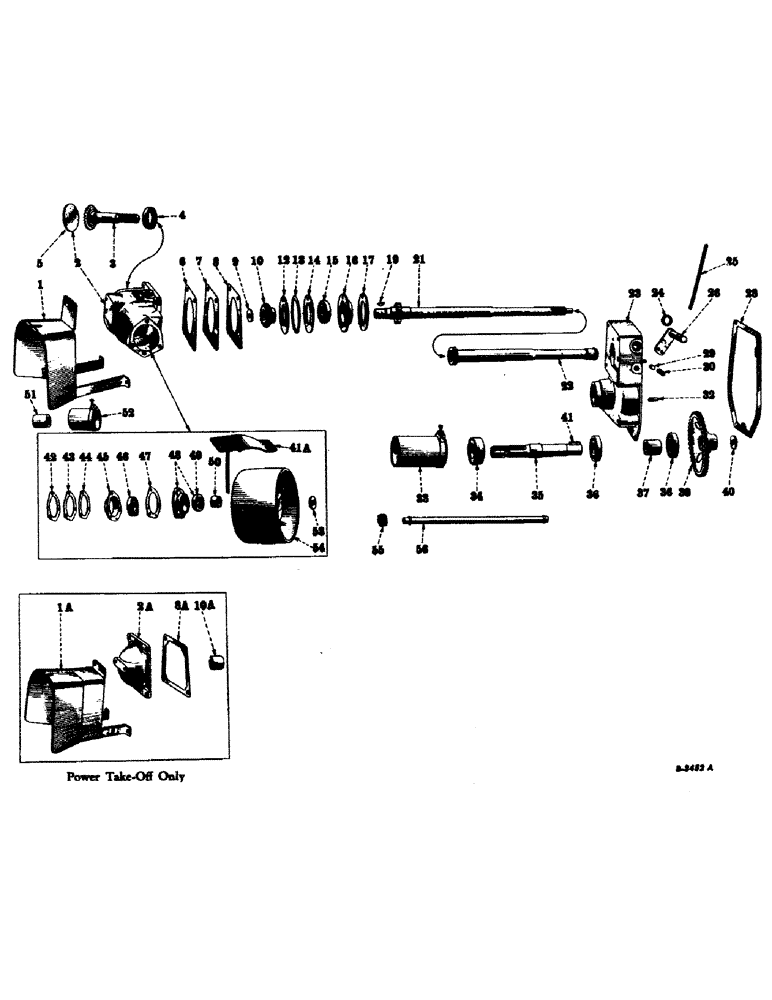

Запчасти Case IH SUPER C (180) - ATTACHMENTS, BELT PULLEY AND POWER TAKE-OFF ATTACHMENT, SPECIAL Attachments

1

55398DB

SHIELD

safety, power take-off (A,C)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A,C)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A,C) 3/8"

2шт.

1a

55403DC

SHIELD

safety, power take-off (B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (B)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

2шт.

2

9090DX

HOUSING, belt pulley drive, w/plug, 43670D and one plug, 103865 and one plug, 144000 or 103876 (A,C)

1шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (A)

1шт.

144000

PLUG

pipe, csk-hdls. stl., 1" (Optional with 103876) (A)

1шт.

103876

PLUG, pipe, csk-hd., 1" (Optional with 144000) (A)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (A)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A) 7/16"

4шт.

2a

9092D

COVER

power take-off (B)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (B)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (B) 7/16"

4шт.

3

351627R1

SHAFT

belt pulley (23 teeth) (A,C)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A,C)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A,C) 7/16"

1шт.

4

63441H

BEARING, ROLLER, CYL,44.01mm ID x 72mm OD x 17mm W

inner, belt pulley shaft (Hyatt 1207-TS) (Optional with 350500R91) (A,C)

1шт.

4

350500R91

ROLLER BEARING,44.026 mm ID x 71.971 mm OD x 0.6693"

inner, belt pulley shaft (Bower M-1207-EL) (Optional with 63441H) (A,C)

1шт.

5

43670D

PLUG

belt pulley drive housing end (A)

1шт.

6

60582D

SHIM

belt pulley drive housing, light (A,C)

1шт.

6

355143R1

SHIM

belt pulley drive housing, extra light (A,C)

1шт.

7

60583D

SHIM

belt pulley drive housing, medium (A,C)

1шт.

8

60584D

SHIM

belt pulley drive housing, heavy (A,C)

1шт.

8a

60581D

GASKET

power take-off cover (B)

1шт.

9

43262DA

WASHER

power take-off drive shaft (A,B,C)

1шт.

10

351626R1

PINION

bevel, belt pulley drive (19 teeth) (A,C)

1шт.

10a

48152D

SPACER

power take-off shaft (B)

1шт.

12

63780D

RETAINER

belt pulley drive housing seal ring (A,C)

1шт.

13

358208R1

SEALING RING

RING, seal, belt pulley drive housing (Will work for 58419D) (A,C)

1шт.

14

63778D

RETAINER, power take-off drive shaft bearing (A,B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A,B)

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8" (A,B)

3шт.

15

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, power take-off drive shaft (A,B)

1шт.

16

60588D

CAGE, power take-off drive shaft bearing (A,B)

1шт.

17

63779D

GASKET

power take-off drive shaft bearing cage (A,B)

1шт.

19

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, Woodruff 3/16 x 7/8" (A,C)

1шт.

21

351311R1

SHAFT

power take-off drive (16 teeth) (A,B)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A,B)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A,B) 7/16"

1шт.

22

351305R91

TUBE

SHIFTER, power take-off (A,B)

1шт.

23

9091DCX

HOUSING

power take-off drive, w/two pins, 357215R1 and plug, 103884 (A,B)

1шт.

103884

PLUG,Slotted, 1/4" NPT

pipe, slotted-hd., 1/4" (A,B)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" (A,B)

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2" (A,B)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A,B) 7/16"

3шт.

24

43645D

WASHER

felt, power take-off shifter lever (A,B)

1шт.

25

351256R1

LEVER, power take-off shifter (A,B)

1шт.

26

53517DBX

SHAFT

power take-off shifter lever (A,B)(replaces 53517DA)

1шт.

note item #26, 53517da shaft, a good sub is 53517dbx djo 7/2/97

1шт.

Q3478

WASHER

plain, 3/4" (A,B)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (A,B) 5/32" x 1 1/4"

1шт.

28

60589DA

GASKET

power take-off drive housing (A,B)

1шт.

29

48102D

PIN

POPPET, power take-off shifter (A,B)

1шт.

30

48103D

VALVE SPRING

SPRING, power take-off shifter poppet (A,B)

1шт.

32

357215R1

PIN

dowel, power take-off drive housing (Will work for 17581D) (A,B)

2шт.

33

51484DX

GUARD, power take-off shaft, w/clamp (A,B)

1шт.

34

48114D

SEAL

OIL SEAL, power take-off shaft (Optional with 358776R91 and 358816R91) (A,B)

1шт.

34

358776R91

OIL SEAL

power take-off shaft (Optional with 48114D and 358816R91) (A,B)

1шт.

34

358816R91

SEAL

OIL SEAL, power take-off shaft (Optional with 48114D and 358776R91) (A,B)

1шт.

35

66184D

SHAFT

power take-off (1-3/8" spline) (A,B)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A,B)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A,B) 7/16"

1шт.

36

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, power take-off shaft (A,B)

2шт.

37

48092D

BUSHING

SPACER, power take-off shaft bearing (A,B)

1шт.

39

351310R1

PINION

GEAR, power take-off (49 teeth) (A,B)

1шт.

40

43262DA

WASHER

power take-off shaft (A,B)

1шт.

41

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, Woodruff, power take-off gear 3/16 x 2-1/8" (A,B)

1шт.

41a

351309R91

GUARD, belt pulley (A,C)

1шт.

103026

NUT,3/8"-24, G5

(S/N 100001 to 189456) (A,C) 3/8"-24, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A, C) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (S/N 100001 to 189456) (A,C)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (S/N 100001 to 189456) (A,C) 3/8"

4шт.

42

47284D

SHIM

belt pulley shaft bearing cage, light (A,C)

1шт.

43

47285D

SHIM

belt pulley shaft bearing cage, medium (A,C)

1шт.

44

47286D

SHIM

belt pulley shaft bearing cage, heavy (A,C)

1шт.

45

47281D

CAGE

belt pulley shaft bearing (A,C)

1шт.

46

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, outer, belt pulley shaft (A,C)

1шт.

47

47283D

GASKET, belt pulley shaft bearing cage (A,C)

1шт.

48

48085DBX

FLANGE

RETAINER, belt pulley shaft bearing, w/oil seal, 48954D (A,C)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A,C)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A,C) 3/8"

3шт.

49

48954D

SEAL

OIL SEAL, belt pulley shaft (Optional with 358781R91 and 358820R91) (A)

1шт.

49

358781R91

OIL SEAL

belt pulley shaft (Optional with 48954D and 358820R91) (A)

1шт.

49

358820R91

OIL SEAL

belt pulley shaft (Optional with 48954D and 358781R91) (A)

1шт.

50

43630D

SPACER

belt pulley shaft (A,C)

1шт.

51

48087DB

SPACER

belt pulley (A,C)

1шт.

52

54001DX

GUARD

belt pulley shaft, w/clamp (A,C)

1шт.

53

43262DA

WASHER

belt pulley shaft (A)

1шт.

54

8257D

PULLEY, belt (8-1/2" dia. - 6" face) (A,C)

1шт.

54

58514DA

PULLEY, belt (6-1/2" dia. - 6-1/2" face) (A,C)

1шт.

54

58515D

PULLEY, belt, 7-1/2" dia. - 6-1/2" face) (Special) (See note A) (A,C)

1шт.

54

356946R1

PULLEY, belt (7-1/2" dia. - 6-1/2" face) (Special) (See note A) (A,C)

1шт.

54

358262R91

PULLEY, belt (7-1/2" dia. - 6-1/2" face) (Special) (See note A) (A,C)

1шт.

55

351251R1

NUT, belt pulley oil tube (See note B) (A,B) .75" Length

1шт.

56

351252R1

TUBE, oil, belt pulley (See note B) (A,B) .75" OD, 19.25" Length

1шт.
