Запчасти Case IH SUPER C (177) - ATTACHMENTS, ENGINE HOUR METER, SPECIAL Attachments

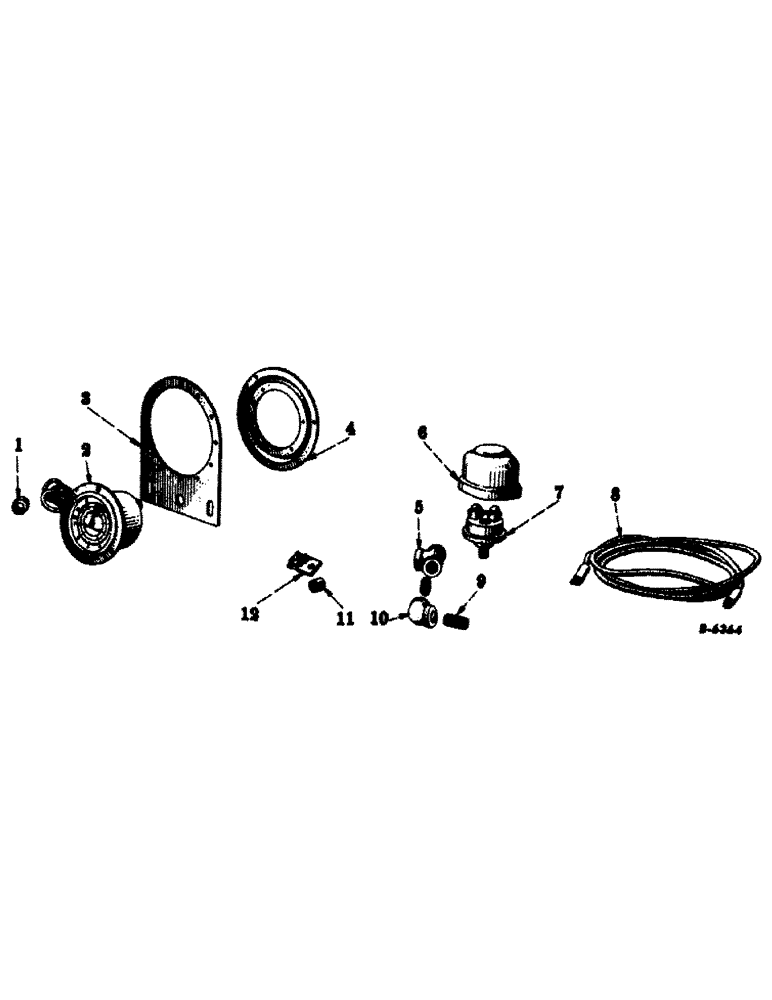

Схема запчастей Case IH SUPER C - (177) - ATTACHMENTS, ENGINE HOUR METER, SPECIAL Attachments
7
3
12
4
6
2
1
10
9
11
5
8

Артикул

Название

Примечание

Количество

356735R91

ATTACHMENT, engine hour meter

1шт.

1

33560D

GROMMET, rubber (Optional with 187540)

1шт.

1

187540

GROMMET, rubber (Optional with 33560D) 1/4" ID x 5/8" x .125", Diag Cut

1шт.

2

356736R91

METER, hour

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"

3шт.

138526

LOCK WASHER

lock, internal-tooth, cd-pltd., no. 6

3шт.

3

356738R1

BRACKET, mounting, hour meter

1шт.

171589

SCREW, self-tapping, slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"

2шт.

125751

WASHER,Ext Tooth, #10

lock, external-tooth, cd-pltd., no. 12

2шт.

446179

WASHER,#12

plain, cd-pltd., 1/2" O.D. x 1/4" I.D. x no. 18 ga.

2шт.

4

356737R91

DAMPER

hour meter vibration

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

slotted-rd-hd., cd-pltd., no. 6-32 x 1/2"

3шт.

138526

LOCK WASHER

lock, internal-tooth, cd-pltd., no. 6

3шт.

5

105416

TEE,1/8" NPT, Fem

pipe, 1/8"

1шт.

6

354558R1

SHIELD

pressure switch

1шт.

7

356739R91

SWITCH

pressure, hour meter

1шт.

8

358581R91

CABLE, pressure switch to junction block (Will work for 70261D)

1шт.

9

144580

NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"

NIPPLE, 1/8 x 7/8" (Close)

2шт.

10

105412

ELBOW,90 Degree, 1/8" NPT

M.I., 1/8" (90 degrees)

1шт.

11

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.

12

42915D

BLOCK

junction slotted-rd-hd., cd-pltd., no. 10-32 x 7/8"

1шт.

132919

SCREW,Sl Rnd Hd, #10 - 32 x 7/8"

slotted-rd-hd., cd-pltd., no. 10-32 x 7/8"

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Выбрано товаров: 24
