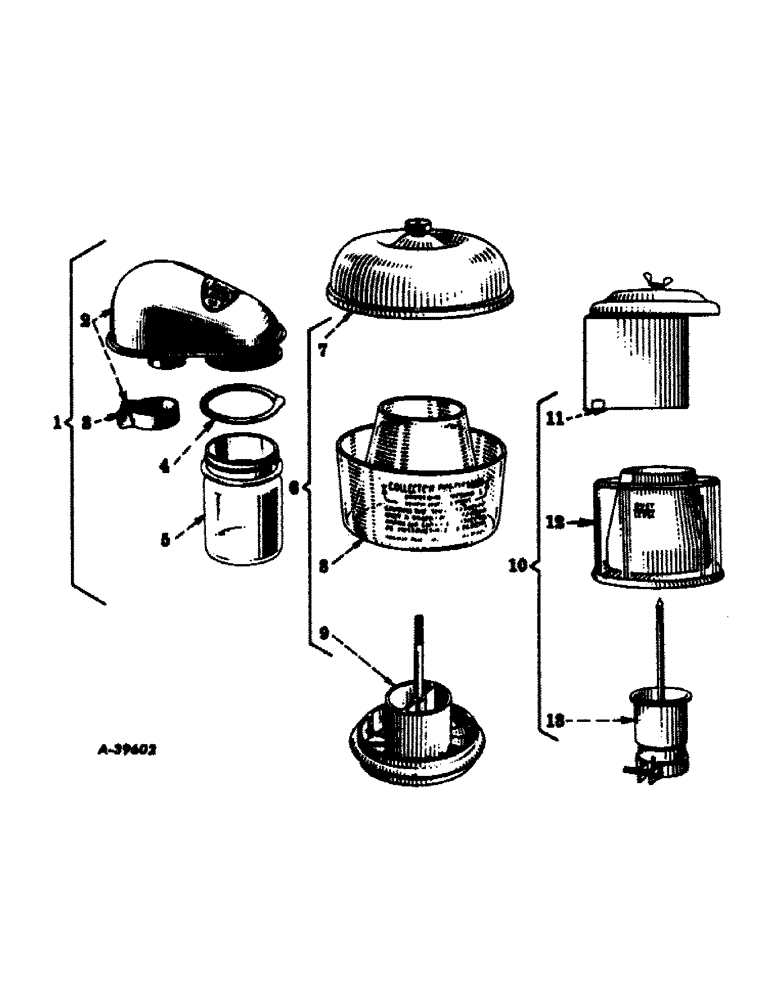

Запчасти Case IH SUPER C (174) - ATTACHMENTS, PRE-CLEANER, SPECIAL Attachments

362993R91

PRECLEANER

ATTACHMENT, pre-cleaner (Collector type) (Will work for 352613R91) (Consists of pre-cleaner, 362997R91)

1шт.

1

352612R91

PRECLEANER

PRE-CLEANER (Collector type w/jar) (Order 362997R91)

1шт.

2

BODY, collector pre-cleaner (Order 362997R91)

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

3

352687R91

CLAMP, pre-cleaner, w/bolt, 13269R1 and nut, 114502

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

13269R1

BOLT, sq-hd., 5/16-18NC x 1-1/4"

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

4

64177D

GASKET

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

5

64178D

CONTAINER

JAR, dust

1шт.

Used with P/N 352612R91 Ref. 1.

1шт.

6

362997R91

PRECLEANER

PRE-CLEANER (Collector type, w/plastic body) (Composed of ref. nos. 7, 8 and 9) (Will work for 352612R91 and 352686R91)

1шт.

7

362999R91

COVER

CAP, top with nut

1шт.

8

363000R1

BODY

dust receptacle

1шт.

9

363002R91

SLEEVE

w/bolt

1шт.

359318R92

PRECLEANER

ATTACHMENT, pre-cleaner (Detachable sleeve type)

1шт.

10

356249R92

CLEANER

PRE-CLEANER, detachable sleeve type (Composed of ref. nos. 11, 12 and 13)

1шт.

11

361408R91

CAP, tow with nut and shield

1шт.

12

361409R91

CLEANER

BODY, pre-cleaner

1шт.

13

361411R91

SLEEVE

w/clamp, nut, 114380, screw, 114359, and stud

1шт.

114380

NUT

sq., 1/4-20NC

1шт.

114359

SCREW, machine, slotted fillister head, 1/4-20NC x 1-1/4"

1шт.
