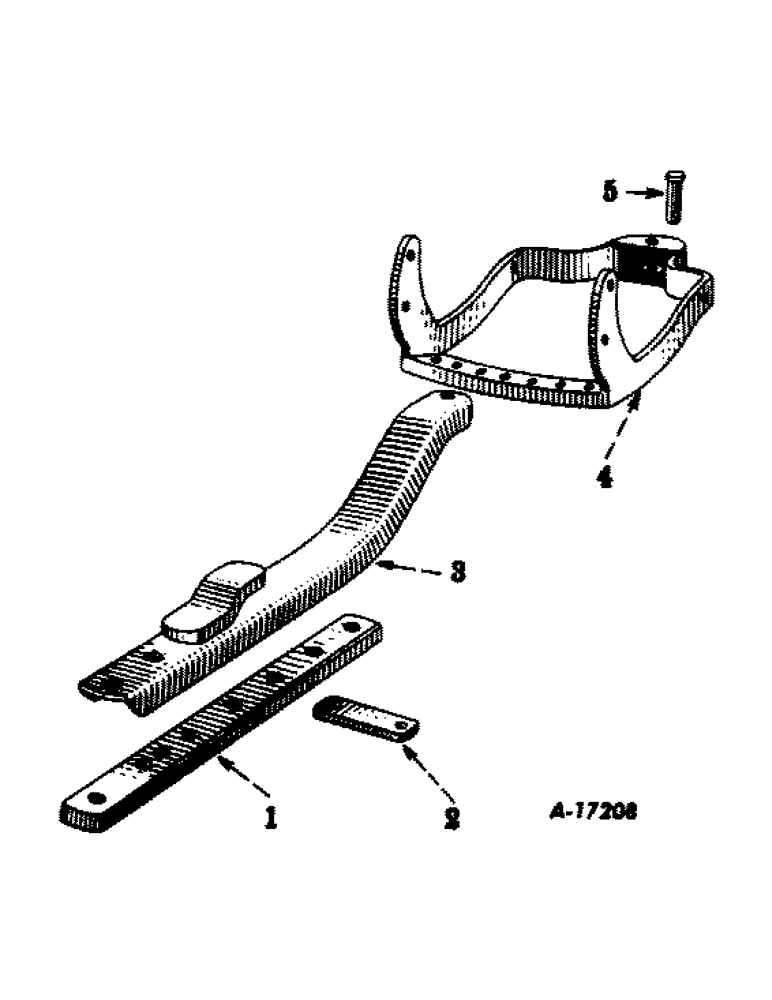

Запчасти Case IH SUPER C (133) - CHASSIS, SWINGING DRAWBAR (12) - CHASSIS

1

351232R2

PLATE, swinging drawbar hitch

1шт.

2

352418R1

PLATE, drawbar clamp

1шт.

114820

NUT, hex., 5/8-11NC

2шт.

271571

SEALING RING COLLAR

cap, hex-hd., 5/8-11NC x 4-1/4"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

351228R11

DRAWBAR, swinging

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

2шт.

271635

CYLINDER

cap, hex-hd., 3/4-16NF x 2-1/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

352050R11

DRAWBAR

1шт.

362014R1

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2"

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4"

2шт.

5

351231R1

PIN, swinging drawbar pivot

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

357428R91

PACKAGE, service swinging drawbar hitch plate (Will work for 351232R1), Consists of

1шт.

351232R2

PLATE

1шт.

103031

TROUGH

NUT

2шт.

271635

CYLINDER

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
