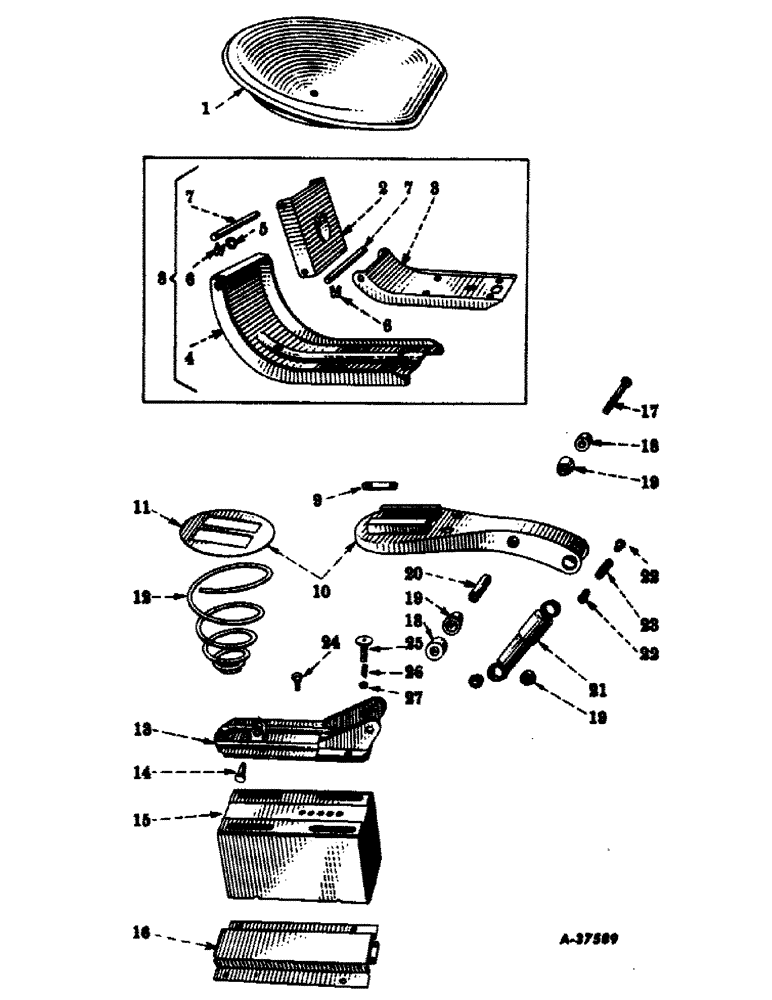

Запчасти Case IH SUPER C (130) - CHASSIS, SEAT, SEAT SUPPORT AND TOOL BOX (12) - CHASSIS

1

351925R93

SEAT

deluxe upholstered

1шт.

181392

BOLT,Hex, 7/16" - 20 x 11/16"

SCREW, cap, hex-hd., 7/16-20NF x 11/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

356895R2

SUPPORT

HINGE

1шт.

3

356896R2

RETAINER, seat

1шт.

4

356897R3

BRACKET, seat adjustment

1шт.

271500

SOCKET

hex., 7/16-14NC

4шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

80158H

WASHER

SPACER (Will work for 356894R1)

2шт.

6

356893R2

WASHER

"X"

4шт.

7

356892R2

PIN

hinge

2шт.

8

356890R92

ATTACHMENT, tilt back seat bracket (Consists of tilt back seat bracket, 356891R93 and nut, 271500, screw, 179856 and washer, 103322)

1шт.

8

356891R93

BRACKET, tilt back seat, Composed of

1шт.

356897R3

BRACKET

1шт.

356895R2

SUPPORT

HINGE

1шт.

356892R2

PIN

2шт.

356896R2

RETAINER

1шт.

80158H

WASHER

SPACER

2шт.

356893R2

WASHER

4шт.

9

352118R1

CLIP, trip rope

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

Used only with tilt back bracket attachments.

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4"

1шт.

Used only with tilt back bracket attachments.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Used only with tilt back bracket attachments.

1шт.

10

352599R94

BRACKET, seat support, w/gasket, 352100R1

1шт.

11

352100R1

GASKET

conical spring

1шт.

12

352598R2

SPRING

conical (4 identifying notches) (For medium weight operators)

1шт.

12

354671R2

SPRING

conical (3 identifying notches) (For light weight operators)

1шт.

12

354670R2

VALVE SPRING

SPRING, conical (5 identifying notches) (For heavy weight operators)

1шт.

13

355750R12

PLATE, seat mounting (Will work for 352601R1)

1шт.

14

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor, lower

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

359572R92

SUPPORT, seat and tool box (Will work for 356826R92) (For tractors equipped with fast hitch or hydraulic remote control)

1шт.

(Standard tractor) (S/N 193534 up)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

356834R12

GUARD, hose, auxiliary control valve (For tractors equipped with fast hitch or remote control)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 3/4"

2шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x no. 16 GA.

2шт.

17

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

cap, hex-hd., 7/16-20NF x 3-1/2" (Shock absorber anchor, upper)

1шт.

354732R1

NUT, lock, shock absorber anchor bolt (Upper)

1шт.

18

354731R1

TUBE

SPACER, shock absorber bushing

2шт.

19

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot

4шт.

20

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing

1шт.

21

351750R93

SHOCK ABSORBER

ABSORBER, shock

1шт.

22

352650R1

WASHER,15.93mm ID x 23.02mm OD x 2.38mm Thk

seat support pivot and rod (S/N, Serial Range: 100001-178783)

2шт.

22

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING, seat support pivot rod, 5/8" I.D. x 1" O.D., 1-3/16" long (Will work for 355574R1) (S/N 178784 up)(replaces 361140)

2шт.

23

352616R1

PIN,17.46mm OD x 88.9mm L

ROD, seat support pivot (S/N 100001to 178783)

1шт.

23

355753R1

PIN,15.88mm OD x 88.9mm L

ROD, seat support pivot (S/N 178784 up)

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

24

358268R2

BOLT,1/2" - 20 x 1 1/2"

seat mounting

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

353649R1

WASHER, steel, 21/32" I.D. x 1-5/16" O.D. x no. 13 GA.

4шт.

353309R1

SPACER

seat mounting

4шт.

25

352600R91

PIN

LOCATOR, seat

1шт.

26

352105R1

SPRING

seat locator

1шт.

27

351128R1

WASHER

RETAINER, seat locator (Will work for 352122R1)

1шт.

350513R1

RIVET, fl-hd., al., 7/64 x 3/8" (Used for attaching serial number plate)

4шт.

357820R92

ATTACHMENT, deluxe type upholstered seat (Consists of seat, 357518R91)

1шт.

351440R93

PAD

ATTACHMENT, detachable seat pad (Consists of one pad, 351438R93)

1шт.

359555R91

PAD

ATTACHMENT, detachable seat pad (Consists of pad, 359483R91)

1шт.

354672R92

ATTACHMENT, seat spring (Consists of one spring, 354670R2) (For heavy weight operators)

1шт.

354673R92

ATTACHMENT, seat springs (Consists of one spring, 354671R2) (For light weight operators)

1шт.

360083R91

SPRING

ATTACHMENT, seat spring (Consists of one spring, 352598R2) (For medium weight operator)

1шт.

359483R91

PAD

detachable seat (Jute)

1шт.

355749R93

UNIT, seat suspension, assembly (Will work for 352749R93), Composed of

1шт.

351750R93

SHOCK ABSORBER

ABSORBER

1шт.

351751R1

BOLT,7/16" - 20 x 2 7/32"

1шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

BOLT

1шт.

352599R94

BRACKET

1шт.

72696R1

SHOCK ABSORBER

BUSHING

4шт.

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING

2шт.

362671R1

LEVER

1шт.

352600R91

PIN

LOCATOR

1шт.

354732R1

NUT

1шт.

425-117

NUT,7/16"-20, G5

1шт.

551172R1

NUT

1шт.

355750R12

PLATE

1шт.

351128R1

WASHER

RETAINER

1шт.

355753R1

PIN,15.88mm OD x 88.9mm L

ROD

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW

2шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

1шт.

354731R1

TUBE

SPACER

2шт.

352105R1

SPRING

1шт.

354671R2

SPRING

2шт.

354730R1

TUBE,.625" OD, 2.25" Length

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

351807R1

CLIP, starting crank (S/N, Serial Range: 100001-193534)

1шт.

110637

RIVET, rd-hd., stl., 1/8 x 5/16"

4шт.

360710R92

PACKAGE, service, seat and tool box support (Consists of guard, 356834R12 and support 359710R92) (Will work for 352086R91) (S/N, Serial Range: 100001-193534)

1шт.
