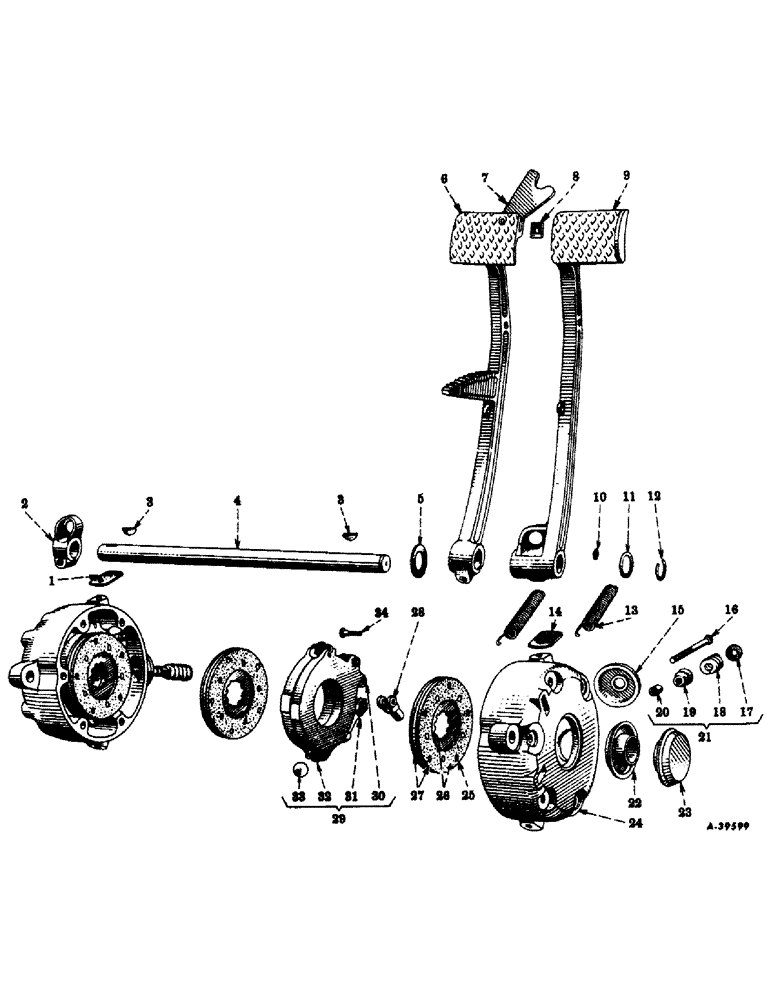

Запчасти Case IH SUPER C (127) - CHASSIS, BRAKES AND CONNECTIONS (12) - CHASSIS

1

355812R1

ANCHOR, clutch pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

355974R1

LEVER, brake shaft

1шт.

271500

SOCKET

hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, ni-stl. 13, 3/16 x 1"

2шт.

4

355971R1

SHAFT, brake pedal

1шт.

5

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

6

355972R21

PEDAL, brake. L.H. (Will work for 357736R91), Composed of

1шт.

355972R2

PEDAL (NSS)

1шт.

43751DB

LATCH, PEDALS

PLATE

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

51293D

SPRING

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

8

51293D

SPRING

tension, brake pedal lock plate

1шт.

9

355973R2

PEDAL, brake, R.H. (Will work for 357737R91)

1шт.

10

66584D

FITTING

lubrication

1шт.

11

40435D

WASHER, brake pedal shaft

1шт.

12

351215R1

RING, snap, brake shaft

1шт.

13

351210R1

SPRING

return brake pedal

2шт.

14

355812R1

ANCHOR, brake pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

355976R1

BOOT

enclosure

2шт.

16

355977R1

ROD

operating brake

2шт.

114494

NUT,Jam, 3/8"-24, G5

6шт.

17

575807R1

WASHER

steel, plain, 13/32" I.D. x 1" O.D. x no. 11 GA.

2шт.

18

355978R1

SPRING

brake operating rod

2шт.

19

355980R1

BALL

brake operating rod

2шт.

20

355979R1

SPACER

brake operating rod

2шт.

21

355977R11

ROD

operating, brake, assembly, Composed of

2шт.

355980R1

BALL

1шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

355977R1

ROD

1шт.

355979R1

SPACER

1шт.

355978R1

SPRING

1шт.

575807R1

WASHER

1шт.

22

355970R1

RETAINER

PLUG, cup brake housing (Open end plug)

2шт.

23

357101R1

PLUG

cup brake housing (Closed end plug)

2шт.

24

355969R12

HOUSING, brake, w/plug, 355970R1, and plug, 357101R1

2шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2"

10шт.

25

356073R1

RIVET

tubular, steel, 3/16 x 1/2"

40шт.

26

1975456C3

BRAKE DISC

DISC, middle, w/linings

4шт.

27

356527R91

LINING SET, brake (Consists of four linings, w/twenty rivets, 356073R1)

2шт.

28

355975R1

CLEVIS COUPLING

YOKE, brake operating rod

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, rod end, 3/8 x 1-3/32"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

29

356853R91

DISC

actuating, assembly, Composed of

2шт.

16028R1

BALL

3шт.

DISC (Not serviced separately, order 356853R91)

2шт.

356069R1

LINK

1шт.

356070R1

DRAG LINK

LINK

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

354627R1

SPRING

2шт.

354625R1

STUD

2шт.

30

356070R1

DRAG LINK

LINK, actuating (Plain)

2шт.

31

356069R1

LINK, actuating (Yoke)

2шт.

32

354627R1

SPRING

extension

4шт.

33

16028R1

BALL

7/8" dia.

6шт.

34

354625R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.
