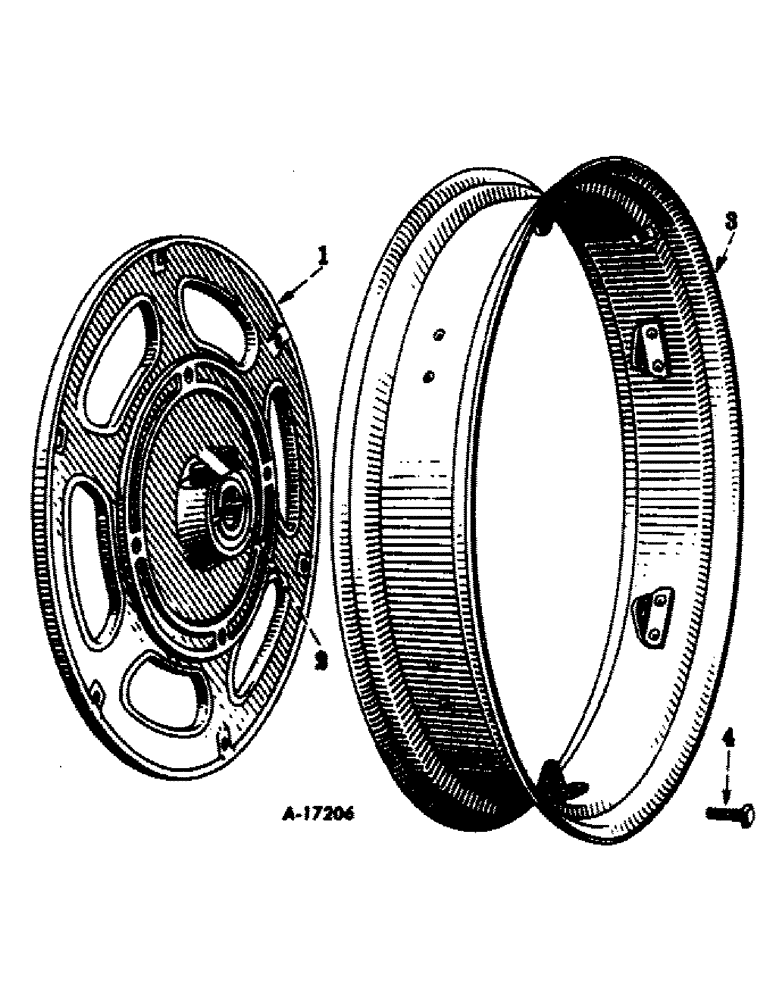

Запчасти Case IH SUPER C (125) - CHASSIS, REAR WHEEL (12) - CHASSIS

1

351244R2

WHEEL, rear

2шт.

2

351246R1

COLLAR CLAMP

CLAMP, rear wheel hub

2шт.

362618R1

CAPSCREW

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

plain, 3/4"

8шт.

3

351665R91

RIM, rear wheel, w/clamps (W8-36 rim size) (8-36, 9-36 tire size)

2шт.

3

352803R92

RIM, rear wheel, w/clamps (W9-36 rim size) (10-36, 11-36 tire size)

2шт.

3

357497R91

RIM, rear wheel, w/clamps (DW8-42 rim size) (9-42 tire size)

2шт.

4

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT, rear wheel rim

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

356177R92

WHEEL AND RIM, rear, assembly (W8-36 rim size) (8-36, 9-36 tire size), Composed of

2шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

351665R91

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

351244R2

WHEEL

1шт.

356178R93

WHEEL AND RIM, rear, assembly (W9-36 rim size) (10-36, 11-36 tire size), Composed of

2шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

352806R92

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

351244R2

WHEEL

1шт.

357498R91

WHEEL AND RIM, rear, assembly (DW8-42 rim size) (9-42 tire size), Composed of

2шт.

351245R1

BOLT (MACHINE),Wheel, 5/8" - 18 x 2"

BOLT

6шт.

351246R1

COLLAR CLAMP

CLAMP

1шт.

357099R2

NUT

6шт.

357497R91

RIM

1шт.

362618R1

CAPSCREW

SCREW

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

351244R2

WHEEL

1шт.

357099R2

NUT

rear wheel rim

12шт.
