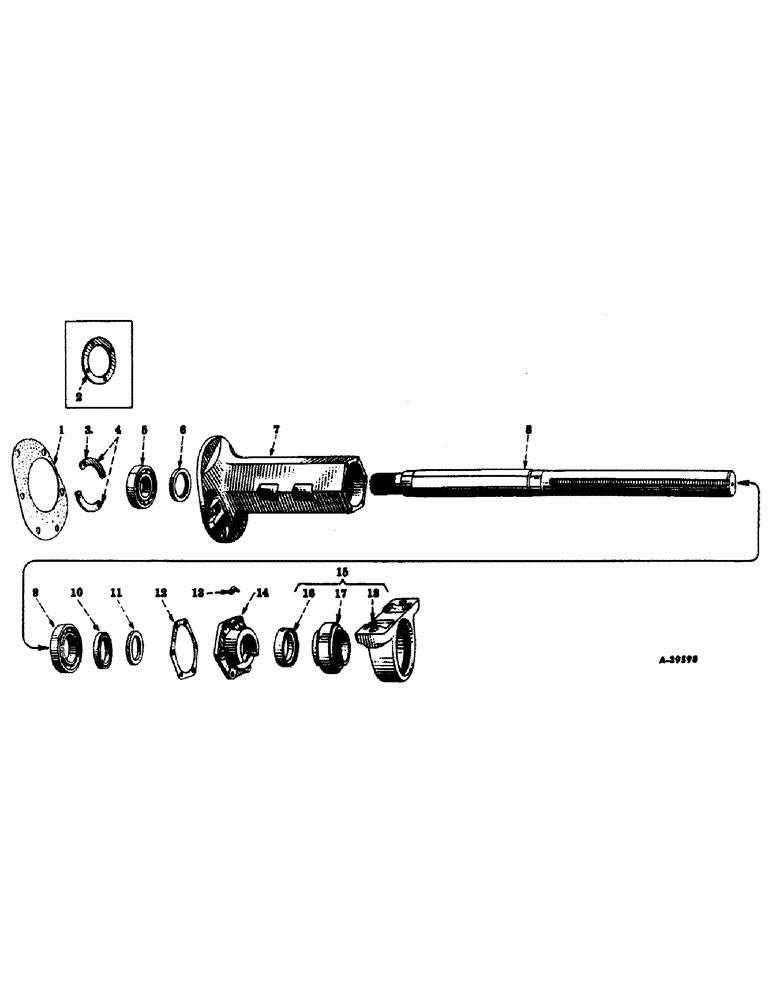

Запчасти Case IH SUPER C (123) - CHASSIS, REAR AXLE (12) - CHASSIS

1

351113R1

GASKET

rear axle carrier

2шт.

2

351114R1

RETAINER, rear axle inner bearings (One piece type) (Order 360465R91)

2шт.

192278

BOLT, self-locking, hex-hd., 3/8-16NC x 3/4"

8шт.

3

351114R2

RETAINER, rear axle inner bearing (Two piece type)

4шт.

4

360465R91

PACKAGE, rear axle inner bearing retainer (Consists of two 351114R2) (Will work for 351114R1)

2шт.

5

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

rear axle, inner

2шт.

6

46983D

OIL SEAL

OIL SEAL, rear axle carrier, inner (Optional with 358774R91 and 358811R91)

2шт.

6

358774R91

SEAL

OIL SEAL, rear axle carrier, inner (Optional with 46983D and 358811R91)

2шт.

6

380768R91

OIL SEAL

OIL SEAL, rear axle carrier, inner (Optional with 46983D and 358774R91)(replaces 358811R91)

2шт.

7

351111R31

CARRIER

rear axle, L.H., w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

351112R31

CARRIER

rear axle, R.H., w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

351496R31

CARRIER, rear axle, L.H., w/oil seal, 46983D (For tractors equipped with 100" wide tread rear axle)

1шт.

7

351497R31

CARRIER, rear axle, R.H., w/oil seal, 46983D (For tractors equipped with 100" wide tread rear axle)

1шт.

8

351115R2

AXLE

rear (80" tread) (Standard)

2шт.

8

351479R2

SHAFT

AXLE, rear (88" tread) (Special)

2шт.

8

351493R2

SHAFT

AXLE, rear (100" tread) (Special)

2шт.

9

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, outer

2шт.

10

60254D

SEAL

OIL SEAL, rear axle, outer (Optional with 358791R91 and 358826R91)

2шт.

10

358791R91

OIL SEAL

rear axle, outer (Optional with 60254D and 358826R91)

2шт.

10

358826R91

OIL SEAL

rear axle, outer (Optional with 60254D and 358791R91)

2шт.

11

351118R1

SEALING WASHER

WASHER, felt, rear axle

2шт.

12

351117R1

GASKET

rear axle carrier cap

2шт.

13

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree angle

2шт.

14

351116R11

CAP, rear axle carrier, w/washer, 351118R1 and oil seal, 60254D

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

658605R91

BEARING, pillow block, front frame axle support assembly (Optional with 658964R91), Composed of

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

658608R91

BEARING

1шт.

658609R11

COLLAR

1шт.

658607R1

HOUSING

1шт.

15

658964R91

BEARING, pillow block, front frame axle support assembly (Optional with 658605R91), Composed of

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

657379R92

BEARING

1шт.

657382R11

COLLAR

1шт.

657380R1

HOUSING

1шт.

16

657382R11

COLLAR, bearing, w/set screw (Fafnir)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

16

658609R11

COLLAR, bearing, w/set screw (Link Belt)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

17

657379R92

BEARING, ball self-aligning, w/seals (Fafnir)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

17

658608R91

BEARING, ball self-aligning, w/seals (Link Belt)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

18

657380R1

HOUSING, pillow block (Fafnir)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

18

658607R1

HOUSING, pillow block (Link Belt)

2шт.

For tractors equipped with cotton picker mounting attachment.

1шт.

351495R94

ATTACHMENT, 100" wide tread rear axle (Special), Composed of

1шт.

351493R2

SHAFT

AXLE

2шт.

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING

2шт.

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

BEARING

2шт.

351116R11

CAP

2шт.

351496R31

CARRIER

1шт.

351497R31

CARRIER

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

351113R1

GASKET

2шт.

351117R1

GASKET

2шт.

351114R2

RETAINER

4шт.

192278

SCREW

8шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

351498R93

ATTACHMENT, 88" wide tread rear axle (Special) (Consists of two rear axles, 351479R2)

1шт.
