Запчасти Case IH SUPER C (121) - CHASSIS, REAR AXLE AND DIFFERENTIAL (12) - CHASSIS

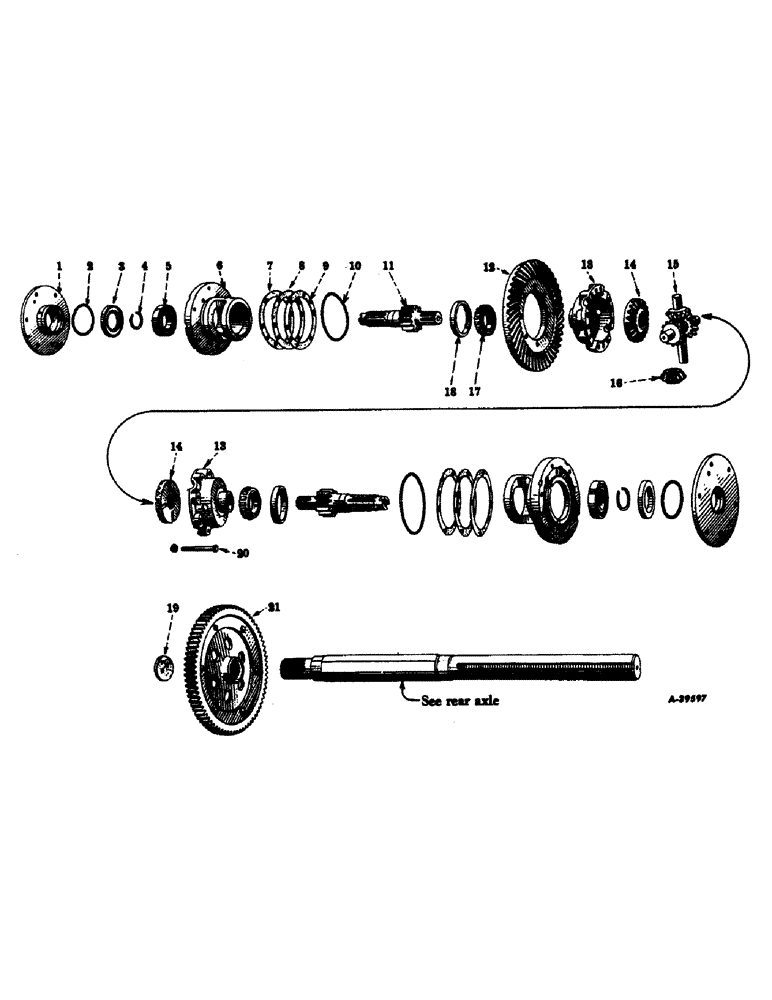

Схема запчастей Case IH SUPER C - (121) - CHASSIS, REAR AXLE AND DIFFERENTIAL (12) - CHASSIS
4
19
10
11
1
17
13
3
15
14
21
9
12
2
13
14
18
6
5
20
8
7
16

Артикул

Название

Примечание

Количество

1

355985R11

RETAINER, bull pinion shaft bearing, assembly, Composed of

2шт.

75260H

SEAL ASSY.

OIL SEAL

1шт.

443767

AXLE PIN

PIN

1шт.

350793R1

O-RING

RING

1шт.

443767

AXLE PIN

PIN, dowel, 1/4 x 1/2"

2шт.

2

285723R1

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

RING, seal, bull pinion shaft bearing retainer (Will work for 350793R1)

2шт.

3

75260H

SEAL ASSY.

OIL SEAL, bull pinion shaft bearing retainer (Optional with 359790R91)

2шт.

3

359790R91

SEAL

OIL SEAL, bull pinion shaft bearing retainer (Optional with 75260H)

2шт.

4

355984R1

RING

snap, bull pinion shaft

2шт.

5

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

(Bull pinion and brake shaft)

2шт.

6

355981R11

CAGE, bull pinion shaft bearing, w/ring, 59385D and cup, ST874A or 29008H)

2шт.

355982R1

SCREW, cap, bull pinion shaft bearing cage

12шт.

7

351102R1

SHIM

bull pinion shaft bearing cage, light

2шт.

7

351105R1

SHIM, bull pinion shaft bearing cage, extra light

1шт.

8

351103R1

SHIM, bull pinion shaft bearing cage, medium

2шт.

9

351104R1

SHIM, bull pinion shaft bearing cage, heavy

2шт.

10

59385D

RING

seal, bull pinion shaft bearing cage

2шт.

11

355983R2

PINION, bull (12 teeth) and brake shaft (Optional with 357429R1)

2шт.

11

357429R1

PINION, bull (12 teeth) and brake shaft (Optional with 355983R2)

2шт.

12

351096R1

GEAR, differential drive (47 teeth)

1шт.

13

351445R91

CASE, differential (2 halves) L.H. and R.H.

1шт.

14

351631R2

PINION

GEAR, differential bevel (24 teeth)

2шт.

15

356589R1

SPIDER, differential

1шт.

16

351630R2

GEAR

PINION, differential (13 teeth)

4шт.

17

ST775A

ROLLER BEARING,2.0005" ID x 3.5010" OD x 0.8265"

CONE, tapered roller bearing differential case bearing

2шт.

18

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP, differential case bearing

2шт.

19

351110R1

RETAINER, bull gear

2шт.

221595

SCREW

cap, self-locking, hex-hd., 3/8-24NF x 7/8"

4шт.

20

351095R1

BOLT

differential case

8шт.

353790R1

NUT

hex., lock, 7/16NF

8шт.

21

351109R31

GEAR AND HUB, bull

2шт.

104119

RIVET, rd-hd., 3/8 x 1-3/4"

6шт.

Выбрано товаров: 32
