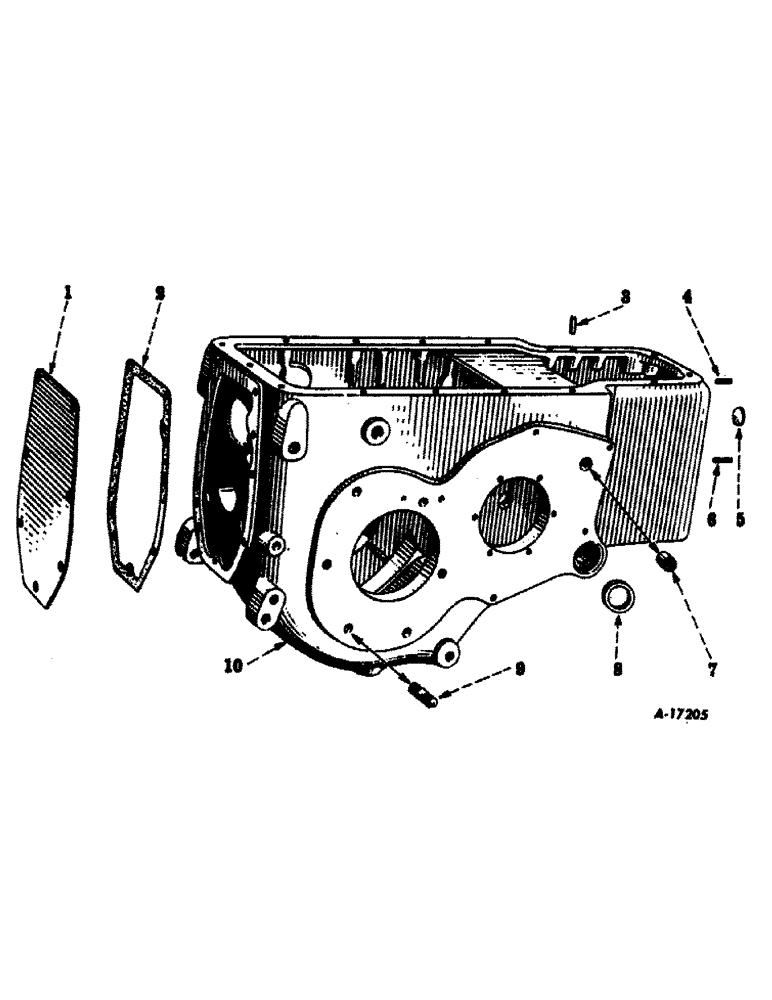

Запчасти Case IH SUPER C (120) - CHASSIS, REAR FRAME (12) - CHASSIS

1

46060D

PLATE, rear frame cover

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

2

60589DA

GASKET

rear frame cover plate

1шт.

3

357124R1

DOWEL

PIN, dowel, rear frame cover (Will work for 29588D)

2шт.

4

357232R1

PIN

dowel, rear frame clutch housing (Will work for 15945D)

2шт.

5

172558

PLUG,Exp, 1 1/4"

expansion, rear frame idler shaft hole, 1-1/4"

1шт.

6

356514R1

STUD, countershaft bearing cage

3шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

brake band lever shaft

2шт.

8

360076R92

SEAL

OIL SEAL, brake pedal shaft

2шт.

9

356608R1

STUD, rear axle carrier

12шт.

10

351131R33

FRAME, rear, assembly, Composed of

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

2шт.

357124R1

DOWEL

2шт.

351131R3

FRAME (NSS)

1шт.

360076R92

SEAL

OIL SEAL

2шт.

357232R1

PIN

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

143999

PLUG

1шт.

172558

PLUG,Exp, 1 1/4"

1шт.

356608R1

STUD

12шт.

356514R1

STUD

3шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.I., 1/4"

1шт.

143999

PLUG

pipe, csk-hdls., stl., 3/4"

1шт.
