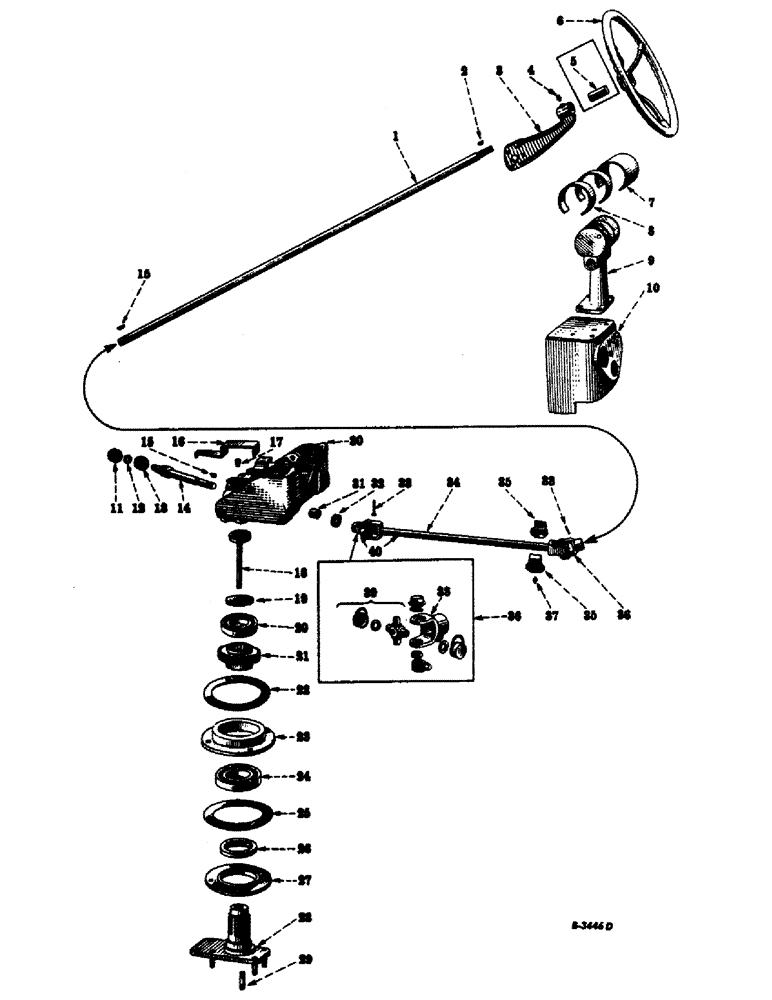

Запчасти Case IH SUPER C (110) - CHASSIS, STEERING MECHANISM (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
351127R2
SHAFT, steering
1шт.
122403
NUT, hex. jam, 3/4-16NF
1шт.
2
112139
WOODRUFF KEY,#A, 1/4" x 7/8"
KEY, Woodruff 1/4 x 7/8"
1шт.
3
360363R11
BEARING, steering shaft, rear, w/fitting, 66584D (Will work for 351313R92)
1шт.
NLS
NO LONGER SERVICED
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING, lubrication, straight, 1/8" (Optional with 109461) (S/N 100001 to 191630)
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, (Optional with 119512) (S/N 100001 to 191630) 1/8"-27 x .66 lg
1шт.
4
66584D
FITTING
lubrication, straight, drive type, 3/16" (S/N 191631 up)
1шт.
5
23858D
BUSHING, steering shaft rear bearing (S/N, Serial Range: 100001-191630)
1шт.
6
29118DC
WHEEL
steering, 18" (Optional with 60070D)
1шт.
6
60070D
STEERING WHEEL
WHEEL, steering, 18" (Optional with 29118DC)
1шт.
7
351364R1
COVER, steering shaft support bracket (For tractors not equipped with touch-control)
1шт.
8
351403R1
COVER, hydraulic lift control and steering shaft bracket support (Tractors equipped with touch-control)
1шт.
9
354741R1
BRACKET, steering shaft support
1шт.
181361
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
SCREW, cap, hex-hd., 3/8-24NF x 7/8"
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
10
355479R92
SUPPORT, steering shaft and instrument panel
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
432465
PLUG, dust, electrical instrument mounting panel 17/32" (Fuse housing pipe) (For tractors equipped with cotton picker mounting attachment)
1шт.
432491
PLUG, dust, electrical instrument mounting panel 2-31/32" (Lighting switch hole) (For tractors equipped with cotton picker mounting attachment)
1шт.
11
6660DA
BEARING CAP
steering worm bearing
1шт.
12
69442D
NUT
steering worm
1шт.
13
ST225BT
BALL BEARING
BEARING, ball, steering worm shaft
1шт.
14
351123R2
CAPSCREW
WORM, steering
1шт.
108635
PIN,1/8" x 1 1/8"
Split (Cotter), 1/8" x 1 1/8"
1шт.
15
103462
KEY
Woodruff 3/16 x 1"
2шт.
16
351121R21
BRACKET, starting crank
1шт.
179814
SPACER
4шт.
17
356568R1
PLUG, steering gear housing vent (Will work for 53218DX)
1шт.
18
52953DX
SHAFT
WASHER, steering worm wheel shaft upper bearing and stud
1шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
19
352417R1
WASHER
SEAL, steering worm wheel shaft
1шт.
21
351122R1
GEAR
WHEEL, worm, steering (38 teeth)
1шт.
20
ST278
BEARING, BALL,49.99mm ID x 90mm OD x 20mm W
BEARING, upper, steering worm wheel shaft
1шт.
22
52951D
GASKET
steering worm wheel shaft lower bearing cage
1шт.
23
8324D
CAGE
steering worm wheel shaft lower bearing
1шт.
24
ST269A
BALL BEARING,60mm ID x 110mm OD x 22mm W
BEARING, lower, steering worm wheel shaft
1шт.
25
52952D
GASKET
steering worm wheel shaft lower bearing cage cover
1шт.
26
360457R91
SEAL
OIL SEAL, steering worm wheel shaft (Will work for 48776D, 358780R91 and 358819R91)
1шт.
27
350009R1
COVER
steering worm wheel shaft lower bearing cage
1шт.
179862
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5
SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"
4шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
28
53001DX
SHAFT, steering worm wheel, w/four studs, 53002D
1шт.
25-118
NUT,1/2"-20, G5
hex., 1/2-20NF
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
29
53002D
STUD
steering worm wheel shaft
4шт.
30
357159R92
HOUSING, steering gear, 351120R71, w/bracket, 351121R21, assembly (Will work for 351120R51) (S/N, Serial Range: 100001-128314)
1шт.
30
351120R71
HOUSING, steering gear, assembly (S/N 128315 up), Composed of
1шт.
41096DB
BUSHING
1шт.
351120R7
HOUSING (NSS)
1шт.
43800DA
SEAL
OIL SEAL
1шт.
356568R1
PLUG
1шт.
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
103867
PLUG
1шт.
425-1110
NUT,5/8"-18, G5
1шт.
9617020
PLUG,1/4" - 18 x 0.48"
pipe, sq-hd., 1/4"
1шт.
103867
PLUG
pipe, sq-hd., C.I. 3/8" (Optional with 103879)
1шт.
103879
PLUG, pipe, sq-hd., stl., 3/8" (Optional with 103867)
1шт.
359258R2
SCREW, cap, hex-hd., 5/8-11NC x 3" (Will work for 179935)
2шт.
359259R1
BOLT,Hex, 5/8" - 11 x 2"
SCREW, cap, hex-hd., 5/8-11NC x 2" (Will work for 179931)
1шт.
359260R1
SCREW, cap, hex-hd., 5/8-18NF x 2-3/4" (Will work for 181487)
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
31
41096DBR
BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L
steering worm
1шт.
32
43800DA
SEAL
OIL SEAL, steering worm shaft (Optional with 359042R91 and 359257R91)
1шт.
32
359042R91
OIL SEAL
steering worm shaft (Optional with 43800DA and 359257R91)
1шт.
32
359257R91
OIL SEAL
steering worm shaft (Optional with 43800DA and 359042R91)
1шт.
33
112055
PIN,3/16" x 1 1/2"
steering shaft universal joint
2шт.
34
351316R93
SHAFT AND YOKE, universal joint
1шт.
35
351126R12
BEARING CARRIER
steering shaft center, assembly, Composed of
1шт.
351126R1
BEARING (NSS)
1шт.
351125R2
BEARING
CAP (NSS)
1шт.
66584D
FITTING
LUBRICATOR
1шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
36
351930R92
YOKE
JOINT, steering universal (Order 351124R94)
2шт.
37
66584D
FITTING
lubrication, straight, drive type, 3/16"
1шт.
38
350256R1
YOKE
steering universal joint
2шт.
39
363321R91
BEARING
AND SPIDER, steering universal joint (Will work for 350254R91) (Optional with 363313R91)
2шт.
39
363313R91
BEARING
AND SPIDER, steering universal joint (Will work for 357439R91) (Optionanl with 363321R91)
2шт.
40
351124R94
SHAFT
steering, 351316R93, w/two bearing and spider and two yoke, 350256R1
1шт.
361157R91
ATTACHMENT, front end weight (For tractors equipped with fast-hitch attachment), Composed of
1шт.
361158R1
WEIGHT L.H.
1шт.
361159R1
WEIGHT R.H.
1шт.
361160R1
BOLT
6шт.
Выбрано товаров: 90
