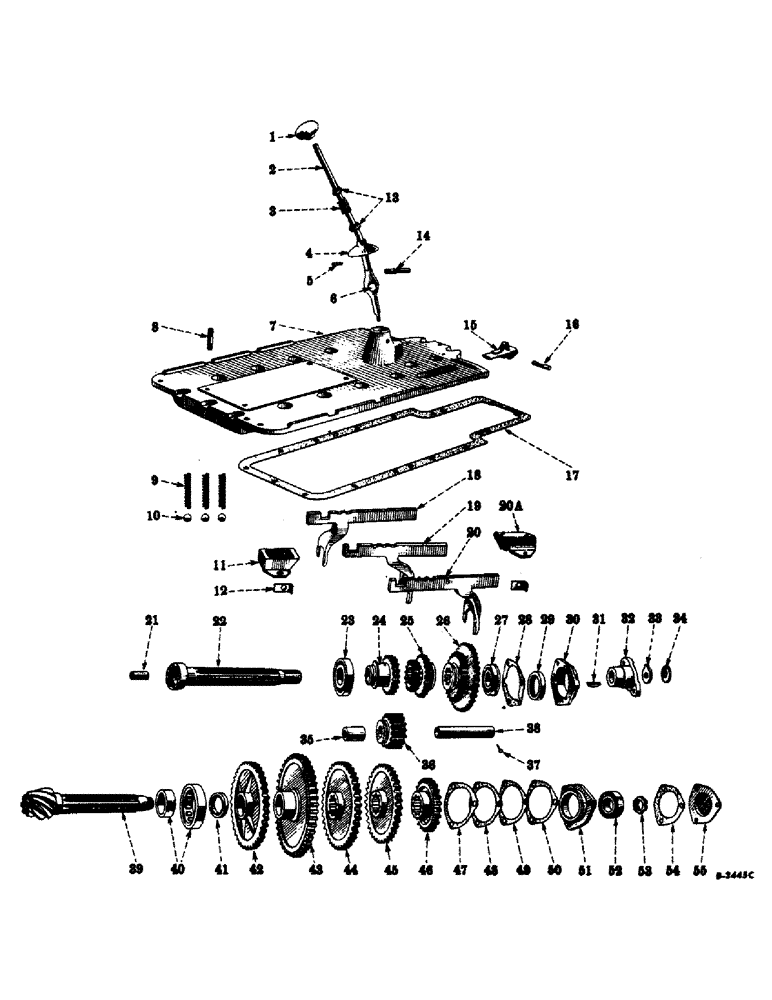

Запчасти Case IH SUPER C (106) - CHASSIS, GEAR SHIFTER MECHANISM AND TRANSMISSION (12) - CHASSIS

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

49493D

LEVER

gear shift

1шт.

3

43578D

SPRING

gear shift swivel

1шт.

4

49489D

SHIELD

gear shift swivel

1шт.

5

43580D

PIN

gear shift spring retainer

1шт.

6

49488D

PIN

SHAFT, gear shift lever swivel, large

1шт.

7

351132R21

COVER, rear frame, w/four studs, 352106R1 and one plug, 144000

1шт.

144000

PLUG

pipe, csk-hd., 1" (Optional with 103876)

1шт.

103876

PLUG, pipe, csk-hd., 1" (Optional with 144000)

1шт.

NLS

NO LONGER SERVICED

(15 used on tractors equipped with remote control attachment) Hex, 3/8"-16 x 1 1/2", G5

17шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4" (Tractors equipped with remote control attachment)

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (Tractors equipped with remote control attachment)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

17шт.

8

352106R1

STUD, seat support and tool box

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

41058DA

SPRING

gear shift poppet ball

3шт.

10

13722D

BALL

gear shift poppet (Optional with D2616)

3шт.

10

D2616

BALL

gear shift poppet (Optional with 13722D)

3шт.

11

47289DA

GUIDE, gear shift rail, rear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

48567D

SUPPORT

LOCK, gear shift rail guide cap screw

4шт.

13

43579D

RETAINER

gear shift swivel spring

2шт.

14

49492D

AXLE PIN

SHAFT, gear shift lever swivel, small

1шт.

15

359989R91

PAWL

brake pedal (Will work for 49208D)

1шт.

16

49209D

SHAFT

brake pedal pawl

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

17

351133R1

GASKET

rear frame cover

1шт.

18

51178DBX

FORK

AND RAIL, reverse speed gear shifter

1шт.

19

48833DBX

FORK

AND RAIL, first and second speed gear shifter

1шт.

20

48834DBX

FORK

AND RAIL, third and fourth speed gear shifter

1шт.

20a

357538R91

GUIDE

gear shift rail, front (Will work for 47289DA)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

351144R1

BUSHING

transmission spline shaft

1шт.

22

351143R11

SHAFT

transmission spline (10 teeth), w/bushing, 351144R1

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

23

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

transmission spline shaft, rear

1шт.

24

351063R11

GEAR

reverse spline (20 teeth), w/rivet, 105088

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

rd-hd., 3/16 x 2-1/4"

1шт.

25

351064R1

GEAR

sliding, first and second speed (16 and 22 teeth)

1шт.

26

359979R1

GEAR, sliding, third and fourth speed (31 and 37 teeth) (For 7 m.p.h. third speed forward attachment)

1шт.

26

351065R1

PINION

GEAR, sliding, third and fourth speed (26 and 37 teeth)

1шт.

27

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, transmission spline shaft, front

1шт.

28

46503D

GASKET,0.79mm Thk

transmission spline shaft bearing retainer

1шт.

29

381907R91

OIL SEAL,39.24mm ID x 62mm OD x 8mm Thk

OIL SEAL, transmission spline shaft (Optional with 358765R91 and 355808R91)(replaces 42177D)

1шт.

REF#29 42177D SHOULD READ 381907R91 10/30/96

1шт.

29

358765R91

SEAL

OIL SEAL, transmission spline shaft (Optional with 42177D and 355808R91)

1шт.

29

355808R91

OIL SEAL, transmission spline shaft (Optional with 42177D and 358765R91)

1шт.

30

6425DX

RETAINER

transmission spline shaft bearing, w/oil seal, 42177D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

31

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, Woodruff 3/16 x 2-1/8"

1шт.

32

43548D

CLAMP

FLANGE, transmission drive

1шт.

33

359992R1

GASKET

transmission drive flange

1шт.

34

43262DA

WASHER

transmission drive flange

1шт.

35

51177DR

BEARING

BUSHING, reverse idler gear

1шт.

36

351058R11

GEAR, reverse idler (16 teeth) w/bushing (Optional with 364490R11)

1шт.

36

364490R11

GEAR, reverse idler (16 teeth) w/bushing (Optional with 351058R11)

1шт.

37

61082D

SCREW, reverse idler shaft lock

1шт.

38

351816R1

SHAFT

reverse idler

1шт.

39

351134R1

COUNTERSHAFT AND BEVEL PINION (8 teeth)

1шт.

40

43284D

BEARING ASSY,39.99mm ID x 80mm OD x 18mm W

roller, countershaft (Optional with 352399R91)

1шт.

40

352399R91

CUP

BEARING, roller, countershaft (Optional with 43284D)

1шт.

41

351135R2

SPACER

first speed gear

1шт.

42

354643R11

PINION

GEAR, transmission oiler, w/bushing

1шт.

43

351059R1

GEAR, first speed (45 teeth)

1шт.

44

351060R1

GEAR

second speed (39 teeth)

1шт.

45

351061R1

PINION

GEAR, third speed (35 teeth)

1шт.

45

359978R1

GEAR, third speed (30 teeth) (For 7 m.p.h. third speed forward attachment)

1шт.

46

351062R1

PINION

GEAR, fourth speed (24 teeth)

1шт.

47

351137R1

CAGE

SHIM, countershaft bearing cage, light

2шт.

48

351138R1

SHIM

countershaft bearing cage, medium

1шт.

49

351139R1

SHIM, countershaft bearing cage, heavy

1шт.

50

351140R1

SHIM

countershaft bearing cage, extra heavy

1шт.

51

351136R2

CAGE, countershaft bearing

1шт.

52

21557D

BALL BEARING

BEARING, ball, countershaft

1шт.

53

4221D

NUT

countershaft and bevel pinion shaft

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

54

351142R1

GASKET

countershafat bearing cage retainer

1шт.

55

351141R1

CAP

RETAINER, countershaft bearing cage

1шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

359977R91

ATTACHMENT, seven m.p.h. third speed forward, Consists of

1шт.

359978R1

GEAR

1шт.

359979R1

GEAR

1шт.
