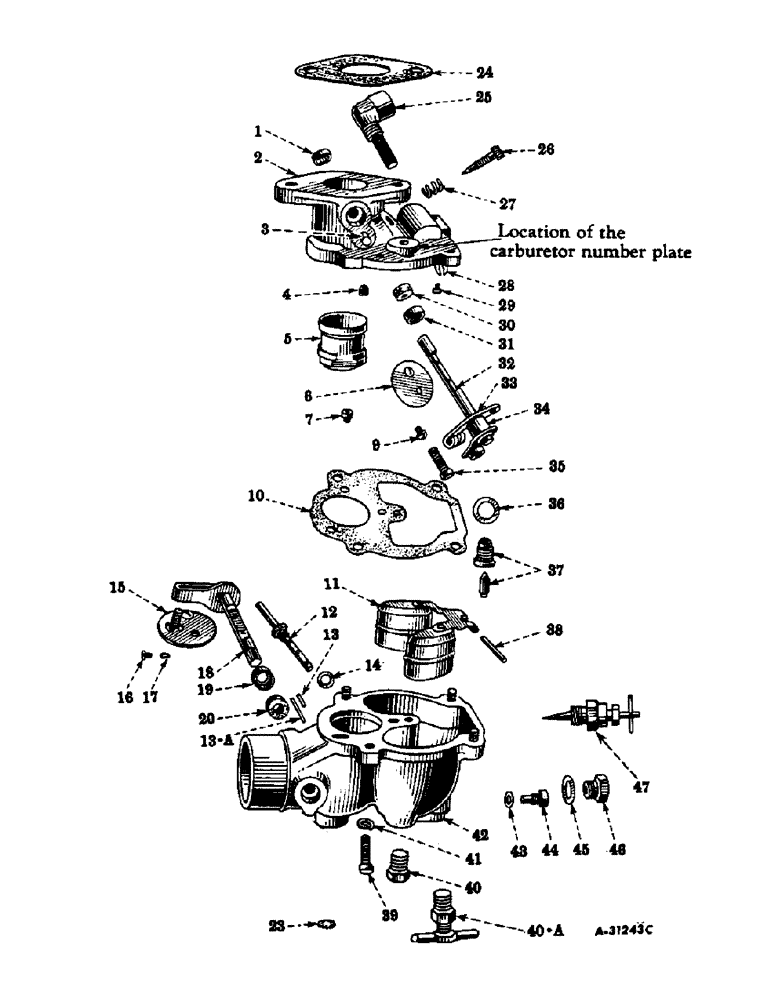

Запчасти Case IH SUPER AV-1 (048) - ENGINE, CARBURETOR, ZENITH MODEL, 161 X 7, 3 X 4 FEET, C-113 ENGINE (01) - ENGINE

48616DC

CARBURETOR

assembly (distillate or kerosene) (see Note) (optional with Marvel-Schebler carburetor, 69402D), Serial Range: 250001-255417

1шт.

352377R92

CARBURETOR

assembly distillate or kerosene) (see Note) (order 357156R91), 255418 up

1шт.

9635082

NUT,5/16" - 18, Gr 5

(Not part of carburetor assembly) 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Not part of carburetor assembly) 5/16"

2шт.

52499DB

CARBURETOR

assembly (gasoline) (see Note) (optional with Marvel- Schebler carburetor, 69401D), Serial Range: 250001-255417

1шт.

352376R92

CARBURETOR

assembly (gasoline) (see Note) (order 355485R91), 255418 up

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(Not part of carburetor assembly) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Not part of carburetor assembly) 5/16"

2шт.

1

53797D

PLUG

throttle shaft hole

1шт.

2

62167DA

1шт.

BODY, throttle, assembly (distillate or kerosene), 250001 to 255417 (composed of - (1) body (NSS), (1) bracket 53789D, (1) pin 54061D, (1) plate 62169D, (1) plug 53797D, (1) retainer 42191D, (2) screw 145371, (2) screw 357155R91, (1) shaft 62170D, (1) spacer 54062D, (1) washer 21210D)

1шт.

2

62181DA

1шт.

BODY, throttle, assembly (gasoline), 250001 to 255417 (composed of - (1) body (NSS), (1) bracket 53789D, (1) pin 54061D, (1) plate 62169D, (1) plug 53797D, (1) retainer 42191D, (2) screw 145371, (2) screw 357155R91, (1) shaft 62170D, (1) spacer 54062D, (1) washer 21210D)

1шт.

2

352886R92

1шт.

BODY, throttle, assembly (gasoline), 255418 up (distillate or kerosene) 255418 up (composed of - (1) body (NSS), (1) bracket 53789D, (1) pin 54061D, (1) plate 62169D, (1) plug 53797D, (1) retainer 42191D, (2) screw 145371, (2) screw 357155R91, (1) shaft 62170D, (1) spacer 54062D, (1) washer 21210D)

1шт.

3

54061D

PIN, throttle stop

1шт.

4

62172D

JET, idling, Serial Range: 250001-255417

1шт.

4

352891R1

JET, idling, 255418 up

1шт.

5

62171D

VENTURI, Serial Range: 250001-255417

1шт.

5

352890R1

VENTURI

255418 up

1шт.

6

62169D

PLATE, throttle valve

1шт.

7

94039H

VENT, well, Serial Range: 255001-255417

1шт.

7

55603D

VENT, well (gasoline), 255418 up

1шт.

7

94091H

VENT, well (distillate or kerosene), 255418 up

1шт.

9

357155R91

SCREW, throttle valve plate, w/washer (will work for 426217, 31858D and 31859D)

2шт.

10

53788DA

GASKET

, Serial Range: bowl-body

1шт.

11

53783D

FLOAT

1шт.

12

62173D

JET, main discharge, Serial Range: 250001-255417

1шт.

12

352892R91

JET, main discharge (gasoline), 255418 up

1шт.

12

352897R91

JET, main discharge (distillate or kerosene)

1шт.

13

53799D

PIN, locating, choke valve plate lever

1шт.

13a

54060D

PIN, stop, choke valve

1шт.

14

31847D

WASHER, main discharge jet

1шт.

15

352895R91

PLATE, choke valve (will work for 53784D)

1шт.

16

31858D

SCREW, choke valve plate

2шт.

17

426217

FUEL FILTER

WASHER, lock, no. 5 (same as 31859D)

2шт.

18

55802D

SHAFT ASSY.

SHAFT, choke valve, w/lever

1шт.

19

42191D

RETAINER

packing, choke valve shaft

2шт.

20

21210D

WASHER

packing, choke valve shaft

2шт.

23

274897R1

FILTER

drip plug

1шт.

24

24520D

GASKET

carburetor (not part of carburetor assembly)

1шт.

25

53796D

ELBOW

w/strainer

1шт.

26

30593D

VALVE, needle, idle adjusting, Serial Range: 250001-255417

1шт.

26

13873D

NEEDLE

VALVE, needle, idle adjusting, 255418 up

1шт.

27

30594D

SPRING, idle adjusting needle valve, Serial Range: 250001-255417

1шт.

27

12472D

SPRING

idle adjusting needle valve, 255418 up

1шт.

28

53789D

BRACKET, float

1шт.

29

145371

SCREW, drive, rd-hd., no. 2 x 1/4" (same as 29888D)

2шт.

30

21210D

WASHER

packing, throttle shaft

1шт.

31

42191D

RETAINER

packing, throttle shaft

1шт.

32

62170D

SHAFT, throttle, w/lever, screw, 12455D and pin, 135645H

1шт.

33

54062D

WASHER

throttle lever

1шт.

34

135645H

PIN, taper (will work for 12428D)

1шт.

35

12455D

SCREW, throttle stop

1шт.

36

53792D

WASHER

fuel valve

1шт.

37

53782D

VALVE

fuel, Serial Range: 250001-255417

1шт.

37

353241R91

VALVE

fuel, 255418 up

1шт.

38

62174D

PIN

AXLE, float

1шт.

39

132119

SCREW

bowl to body (same as 12460D)

4шт.

40

54063D

PLUG

drain (gasoline)

1шт.

40a

53791D

COCK, drain (distillate or kerosene)

1шт.

41

106497

LOCK WASHER,#10

WASHER, LOCK, (same as 12453D) #10

4шт.

42

62168D

BOWL, fuel, assembly, 250001 to 255417 (composed of - (1) bowl (NSS), (1) plug 53797D, (1) retainer 40535D, (1) retainer 42191D, (1) washer 12469D, (1) washer 21210D, (1) washer 40534D)

1шт.

42

352887R91

BOWL, fuel, assembly, 255418 up (composed of - (1) bowl (NSS), (1) pin 53799D, (1) pin 54060D, (1) retainer 40535D, (2) retainer 42191D, (1) washer 12469D, (2) washer 21210D, (1) washer 40534D)

1шт.

43

12435D

SEALING WASHER

WASHER, main jet

1шт.

44

55728D

JET, main (gasoline), Serial Range: 250001-255417

1шт.

44

55594D

JET, main (distillate or kerosene), Serial Range: 250001-255417

1шт.

44

55609D

JET, main (gasoline), 255418 up

1шт.

44

62177D

JET

main (distillate or kerosene), 255418 up

1шт.

45

12433D

WASHER

lower plug (gasoline)

1шт.

45

12433D

WASHER

main jet adjustment (distillate or kerosene)

1шт.

46

16825D

PLUG

lower (gasoline) (main jet passage)

1шт.

47

53786D

ADJUSTER

VALVE, needle main jet adjustment, w/body and sleeve (distillate or kerosene)

1шт.

352896R1

GASKET SET (not part of carburetor assembly) (consists of - (1) gasket 53788DA, (1) washer 12433D, (1) washer 12435D, (1) washer 31847D, (1) washer 53792D)

1шт.

355262R91

KIT

1шт.

PACKAGE, overhaul, carburetor (not part of carburetor assembly) (consists of - (1) axle 62174D, (1) elbow 53796D, (1) filter 274897R1, (1) gasket 24520D, (1) gasket 53788DA, (1) shaft 62170D (1) plug 53797D, (3) retainer 42191D, (4) screw 31858D, (4) screw 132119, (1) spring 12472D, (1) valve 13873D, (1) valve 353241R91, (1) washer 12433D, (1) washer 12433D, (1) washer 12435D, (3) washer 21210D, (1) washer 31847D, (1) washer 53792D, (4) washer 106497, (4) washer 426217)

1шт.
