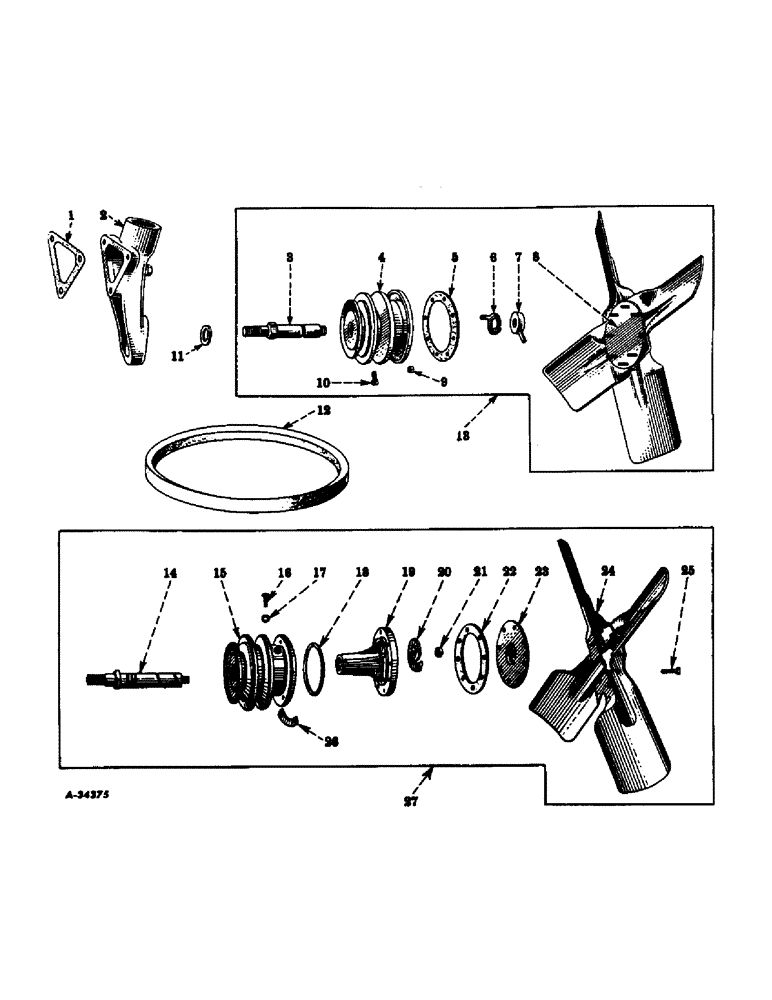

Запчасти Case IH SUPER AV-1 (026) - ENGINE, FAN, SERVICE PRODUCTS, 3 X 4 FEET, C-113 ENGINE (01) - ENGINE

1

43294D

GASKET

fan bracket

1шт.

2

6432DA

BRACKET, fan and water outlet

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

25957DA

STUD

SPINDLE, fan, Serial Range: 250001-317191

1шт.

3

360706R1

SPINDLE, fan, Serial Range: 345446-348598

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

4

28318DA

HUB, fan, Serial Range: 250001-317191

1шт.

4

360704R91

HUB, fan, Serial Range: 345446-348598

1шт.

4

362603R91

HUB, fan, assembly, 345446 to 348598 (composed of - (1) gasket 360703R1, (1) hub 360704R91, (1) nut 360705R91, (1) spindle 360706R1)

1шт.

5

11154VA

GASKET

fan hub, Serial Range: 250001-317191

1шт.

5

360703R1

GASKET

fan hub, Serial Range: 345446-348598

1шт.

6

12470VA

WASHER, thrust, bronze (used only with fan hub bronze bearing), Serial Range: 250001-317191

1шт.

7

62786VX

NUT, thrust, w/oil tube, Serial Range: 250001-317191

1шт.

7

360705R91

NUT, thrust, w/oil tube, Serial Range: 345446-348598

1шт.

8

32984DA

FAN, Serial Range: 250001-317191

1шт.

8

360707R91

FAN, Serial Range: 345446-348598

1шт.

103101

CLEVIS

NUT, square, no. 10-32NF

8шт.

12922R1

SCREW, machine, slotted-fil-hd., no. 10-32NF x 9/16"

8шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

9

32606H

PLUG, oil retaining (used only with fan hub with bronze bearing), Serial Range: 250001-317191

1шт.

10

359683R91

SCREW, oil plug, w/washer (used only with gray iron fan hub), 250001 to 317191, Serial Range: 345446-348598

1шт.

11

43293D

WASHER

fan shaft

1шт.

12

46869D

V-BELT,0.78" W

Fan (Regular duty) (Optional with 368083R1) 0.78" W

1шт.

12

368083R1

BELT

fan (cog type) (heavy duty) (optional with 46869D)

1шт.

13

28821DB

FAN AND HUB, assembly (optional with 70136D), 250001 to 317191 (composed of - (1) fan 32984DA, (1) gasket 11154VA, (1) hub 28318DA, (1) nut 62786VX, (8) nut 103101, (8) screw 12922R1, (1) screw 359683R91, (1) spindle 25957DA, (8) washer 106497)

1шт.

13

358169R91

FAN AND HUB, assembly (order 356843R91), Serial Range: 345446-348598

1шт.

14

SPINDLE, fan (order 251647R91), Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

Fan, Schwitzer-Cummins, 3 x 4' C-113 engine Jam, 5/8"-18, G5

1шт.

15

HUB, fan (order 251645R91), 250001 to 317191, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

15

HUB, fan (order 357904R91), 317192 up, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

16

70206D

SCREW, oil retaining, fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

17

70208D

GASKET

oil retaining screw, fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

18

70207D

GASKET

fan hub, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

19

BEARING, fan (order 251647R91), Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

20

IMPELLER, oil (order 251647R91), fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

21

70209D

NUT

lock, fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

22

70200D

GASKET

fan bearing, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

23

70204D

CAP

fan bearing, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

24

70212D

FAN

Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

25

70202D

SCREW, fan bearing cap, Schwitzer-Cummins, 3 x 4' C-113 engine

8шт.

106498

LOCK WASHER,#12

Washer, Lock, , Fan, Schwitzer-Cummins, 3 x 4' C-113 engine #12

8шт.

26

70203D

NUT, double, fan, Schwitzer-Cummins, 3 x 4' C-113 engine

4шт.

27

70136D

FAN

AND HUB, assembly (optional with 28821DB), 250001 to 317191 (composed of - (1) fan 70212D, (1) hub 251645R91, (4) nut 70203D, (8) screw 70202D, (1) spindle and bearing 251647R91, (8) washer 106498), Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

27

356843R91

FAN

AND HUB, assembly (will work for 358169R91), 317192 up (composed of - (1) fan 70212D, (1) hub 357004R91, (4) nut 70203D, (8) screw 70202D, (1) spindle and bearing 251647R91, (8) washer 106498), Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

251645R91

HUB

assembly, 250001 to 317191 (composed of - (1) gasket 70200D, (1) gasket 70207D, (1) gasket 70208D), (1) hub (NSS), (1) screw 70206D), fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

357004R91

HUB CAP

HUB, assembly, 317192 up (composed of - (1) gasket 70200D, (1) gasket 70207D, (1) gasket 70208D, (1) hub (NSS), (1) screw 70206D), fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.

251647R91

SPINDLE AND BEARING, assembly (composed of - (1) bearing (NSS), (1) cap 70204D, (1) gasket 70200D, (1) gasket 70207D, (1) impeller (NSS), (1) nut 70204D, (1) spindle (NSS)), fan, Schwitzer-Cummins, 3 x 4' C-113 engine

1шт.
