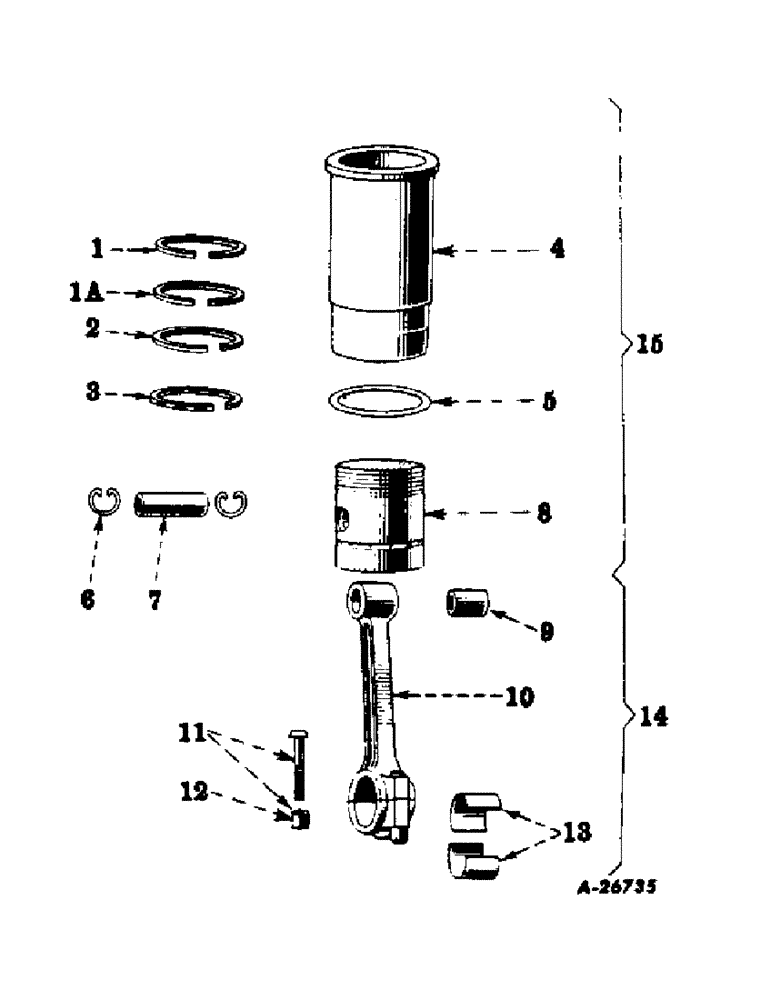

Запчасти Case IH SUPER AV-1 (016) - ENGINE, CONNECTING RODS, PISTONS, AND CYLINDER SLEEVES (01) - ENGINE

1

366800R1

O-RING

RING, compression, piston (top of first groove) (gasoline, distillate or kerosene) (chrome) (will work for 24416DA) (see note A and B)

4шт.

1

366291R1

RING

compression, piston (top of first groove) (gasoline or distillate) (chrome) (see note C)

4шт.

1

366642R1

RING, compression, piston (top of first groove) (gasoline distillate or kerosene) (chrome) (see note D)

4шт.

1

370154R1

RING

compression, piston (top of first groove) (chrome) (gasoline or distillate) (see note E)

4шт.

1a

24416DA

RING, compression, piston (second groove) (see note A and B)

4шт.

1a

366292R1

RING

compression, piston (second groove) (see note C and D)

4шт.

1a

370155R1

RING

compression, piston (second groove) (see note C)

4шт.

2

35493D

RING

compression, piston (third groove) (gasoline, distillate or kerosene) (see note A and B)

4шт.

2

366292R1

RING

compression, piston (third groove) (gasoline, distillate or kerosene) (see note D)

4шт.

3

366636R91

RING

oil, piston (third or bottom groove) (chrome) (gasoline, distillate) (see note D)

4шт.

3

366802R91

RING

oil, piston (fourth groove) (gasoline or distillate) (chrome) (will work for 32030DA) (see note A)

4шт.

3

366801R91

RING, oil, piston (fourth groove) (kerosene) (chrome) (will work for 43276DA) (see note B)

4шт.

3

366636R91

RING

oil, piston (fourth groove) (gasoline or distillate) (chrome) (see note D)

4шт.

3

366293R91

RING, oil, piston (fourth groove) (kerosene) (chrome) (see note D)

4шт.

3

370156R91

RING, oil, piston (third or bottom groove) (chrome) (gasoline or distillate) (see note E)

4шт.

4

SLEEVE, cylinder (order cylinder sleeve, w/piston for standard or high altitude)

4шт.

5

24434D

RING,6.04mm Thk x 134.94mm ID

RING, packing, cylinder sleeve, Serial Range: 250001-310299

4шт.

5

354881R1

SEAL ASSY.

RING, packing, cylinder sleeve, 310300 up

4шт.

6

359321R1

RING, SNAP

RING, piston pin retainer

8шт.

7

24414DB

AXLE PIN

PIN, piston (standard)

4шт.

7

53159D

PIN

piston (.005" oversize)

4шт.

8

PISTON (distillate, gasoline or kerosene) (order cylinder sleeve, w/piston and rings, for standard or high altitude)

1шт.

9

64508D

BUSHING,23.82mm ID x 25.22mm OD x 30.96mm L

BUSHING, piston pin

4шт.

10

30926DFXA

ROD

connecting, w/two bolts, 363465R11 and bushing, 64508D and cap

4шт.

11

363465R11

BOLT,3/8" - 24 x 2 5/16"

connecting rod, w/nut, 363466R1 (will work for 24412DX)

8шт.

12

24413D

NUT, connecting, rod bolt (without identifying notches)

8шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

8шт.

12

363466R1

NUT

connecting, rod bolt (with identifying notches)

8шт.

13

356304R11

BEARING

connecting rod (2 halves) (will work for 35578DBX)

4шт.

13

356305R11

CRANKSHAFT BEARING

connecting rod (2 halves) (.030" undersize) (will work for 35578DBX)

4шт.

13

356306R11

CRANKSHAFT BEARING

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

13

360196R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

13

356307R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

13

367876R91

BEARING SET, connecting rod (standard) (consists of four bearings, 356304R11)

1шт.

13

372115R91

KIT

BEARING SET, connecting rod (.030" undersize) (consists of four bearings, 356305R11)

1шт.

14

30926DFYA

ROD

connecting, 30926DFXA, w/bearing, 356304R11

4шт.

15

366288R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, with pistons and rings, 366289R91) (gasoline-standard altitude) (order 374899R91), Serial Range: 250001-310299

1шт.

15

366687R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 366837R91) (distillate-standard altitude) (will work for 43286DB and 43287DB), Serial Range: 250001-310299

1шт.

15

366652R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 366651R91) (kerosene-standard altitude) (will work for 351606R92 and 351657R92), Serial Range: 255418-310299

1шт.

15

374377R91

SLEEVE SET, crankcase ("fire crater increased power") (consists of four sleeves, w/pistons and rings 374338R91) (gasoline- standard altitude), Serial Range: 250001-310299

1шт.

15

374338R91

SLEEVE

4шт.

SLEEVE CYLINDER, w/pistons and rings, assembly ("fire crater increased power") (gasoline-standard altitude) 250001 to 310299, (composed of - (1) pin 24414DB, (1) piston 374339R1 (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

374887R91

SLEEVE ASSY

SLEEVE SET, crankcase (part of ("fire crater increased power package") 374259R91) (consists of four sleeves, w/pistons and rings 374293R91) (gasoline-standard altitude), 310300 up

1шт.

15

370158R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 367901R91) (distillate-standard altitude) (will work for 356315R92 and 356316R92), 310300 up

1шт.

15

356904R93

SLEEVE CYLINDER

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, with pistons and rings, 356903R93) (kerosene-standard altitude) (will work for 3563211R92 and 356343R92), 310300 up

1шт.

15

366289R91

SLEEVE ASSY

4шт.

SLEEVE, cylinder, w/pistons and rings, assembly (thinwall) (gasoline-standard altitude) 250001 to 310299 (composed of (1) pin 24414DB, (1) piston 362867R1 (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

366837R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (distillate - standard altitude) (see note) 250001 to 310299 (composed of (1) pin 24414DB, (1) piston 366669R1 (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

366651R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (kerosene - standard altitude) (see note) 250001 to 310299 (composed of (1) pin 24414DB, (1) piston 356899R2 (NSS), (1) ring 24434D, (2) ring 366292R1, (1) ring 366293R91, (1) ring 366642R1, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

374293R91

PISTON

4шт.

SLEEVE, cylinder, w/piston and rings, assembly ("fire crater increased power") (gasoline-standard altitude) (used with crankcase, 354898R92 (NSS) (see note) 310300 up (composed of (1) pin 24414DB, (1) piston 374294R1 (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 370156R1, (1) sleeve 370152R1 (NSS), (2) spring 359321R1)

1шт.

15

370160R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (distillate-standar altitude) (see note) 310300 up (composed of (1) pin 24414DB, (1) piston 370149R1 (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 370156R91, (1) sleeve 370152R1 (NSS), (2) spring 359321R1)

1шт.

15

356903R93

SLEEVE CYLINDER

4шт.

SLEEVE, cylinder, w/pistons and rings, assembly (thinwall) (kerosene-standard altitude) (see note), 310300 up (composed of - (1) pin 24414DB, (1) piston 356899R2 (NSS), (1) ring 354881R1, (2) ring 366292R1, (1) ring 366293R91, (1) ring 3666642R1, (1) sleeve 356301R1, (2) spring 359321R1)

1шт.

15

374492R91

PISTON ASSY.

SLEEVE SET, crankcase ("fire crater increasd power") (consists of four sleeves, w/pistons and rings, 374493R91) (gasoline-high- altitude), Serial Range: 250001-310299

1шт.

15

366653R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 366658R91) (distillate-high-altitude) (will work for 351518R92, 351519R92, 351523R92, 351527R92, 351593R92 and 351613R92), Serial Range: 255418-310299

1шт.

15

366655R91

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 366657R91) (kerosene-high altitude) (will work for 351592R92, 351594R92, 351602R92 and 351614R92), Serial Range: 255418-310299

1шт.

15

374493R91

PISTON

4шт.

SLEEVE CYLINDER, w/piston and rings, assembly ("fire crater increased power") (gasoline high-altitude) (see note), 250001 to 310299 (composed of - (1) pin 24414DB, (1) piston 374495R1 (NSS), (1) ring 34434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

366658R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (distillate-high-altitude) (see note) 255418 to 310299 (composed of (1) pin 24414DB, (1) piston 363375R1 (NSS), (1) ring 24434D, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

366657R91

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (kerosene-high-altitude) (see note), 255418 to 310299 (composed of (1) pin 24414DB, (1) piston 356916R2 (NSS), (1) ring 24434D, (2) ring 366292R1, (1) ring 366293R91, (1) ring 366642R1, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

15

374888R91

SLEEVE SET, crankcase ("fire crater increased power") (consists of four sleeves, w/pistons and rings, 374450R91) (gasoline-high- altitude), 310300 up

1шт.

15

363368R92

SLEEVE ASSY

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and ring, 363371R92) (distillate-high altitude) (will work for 356637R92, 356639R92, 356642R92, 356643R92, 356651R92, 354654R92, 356655R92), 310300 up

1шт.

15

356907R93

SLEEVE SET, crankcase (thinwall) (consists of four sleeves, w/pistons and rings, 356914R93) (kerosene-high altitude) (will work for 356641R92, 356647R92, 356653R92 and 356656R92) 310300 up

1шт.

15

374450R91

PISTON

4шт.

SLEEVE CYLINDER, w/pistons and rings, assembly ("fire crater increased power") (gasoline-high altitude) (see note), 310300 up, (composed of - (1) pin 24414DB, (1) piston 374451R1 (NSS), (1) ring 354881R1, (1) ring 370154R1, (1) ring 370155R1, (1) ring 370156R91, (1) sleeve 370152R1 (NSS), (2) spring 359321R1)

1шт.

15

363371R92

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (distillate-high altitude) (see note). 3103300 up (composed of - (1) pin 24414DB, (1) piston 363375R1 (NSS), (1) ring 354881R1, (1) ring 366291R1, (1) ring 366292R1, (1) ring 366636R91, (1) sleeve 356301R1 (NSS), (2) spring 359321R1)

1шт.

15

356914R93

4шт.

SLEEVE, cylinder, w/piston and rings, assembly (thinwall) (kerosene-high altitude) (see note), 310300 up (composed of - (1) pin 24414DB, (1) piston 356916R2 (NSS), (1) ring 354881R1, (2) ring 366292R1, (1) ring 366292R91, (1) ring 366642R1, (1) sleeve 366205R1 (NSS), (2) spring 359321R1)

1шт.

69791D

SET OF RINGS

RING SET, piston (gasoline or distillate) (optional with 70356D and 357677R91) (perfect circle) (see note A)

1шт.

69792D

RING SET, piston (kerosene) (optional with 70357DA and 357676R91) (wilkening) (see note B)

1шт.

70356D

RING SET, piston (gasoline or distillate) (optional with 69791D and 357677R91) (wilkening) (see note A)

1шт.

70357DA

RING SET, piston (kerosene) (optional with 69792D and 357676R91) (perfect circle) (see note B)

1шт.

357677R91

SET OF RINGS

RING SET, piston (gasoline or distillate) (optional with 69791D and 357676R91) (perfect circle 2-in-1 chrome) (see note A)

1шт.

357676R91

SET OF RINGS

RING SET, piston (kerosene) (optional with 69792D and 70357DA) (perfect circle 2-in-1 chrome) (see note B)

1шт.

364788R91

RING

SET, piston (gasoline or distillate) (perfect circle 2-in-1 chrome) (see note C)

1шт.

357076R91

RING SET, piston (kerosene) (perfect circle) (optional with 357080R91) (see note D)

1шт.

354893R92

PISTON RING SET

RING SET, piston (gasoline or distillate) (perfect circle) (optional with 354894R92 and 357679R91) (see note D)

1шт.

354894R92

PISTON RING SET

RING SET, piston (gasoline or distillate) (wilkening) (optional with 354893R92 and 357679R91) (see note D)

1шт.

357679R91

SET OF RINGS

RING SET, piston (gasoline or distillate) (perfect circle 2-in-1 chrome) (optional with 354892R92 and 354894R92) (see note D)

1шт.

357080R91

RING SET, piston (kerosene) (wilkening) (optional with 357076R91) (see note D)

1шт.

370422R91

RING

SET, piston (gasoline or distillate) (perfect circle 2-in-1 chrome) (see note E)

1шт.

374899R91

PACKAGE ("fire crater increased power") (consists of distributor change-over kit and sleeve set, 374337R91) (gasoline-standard altitude), Serial Range: 250001-310299

1шт.

374900R91

PACKAGE ("fire crater increased power") (consists of distributor change-over kit and sleeve set, 374492R91) (gasoline-high altitude), Serial Range: 250001-310299

1шт.

374259R91

PISTON ASSY.

PACKAGE ("fire crater increased power") (consists of distributor change-over kit and sleeve set, 374887R91) (gasoline-standard altitude), 310300 up

1шт.

374449R91

PACKAGE ("fire crater increased power") (consists of distributor change-over kit and sleeve set, 374888R991) (gasoline high altitude), 310300 up

1шт.
