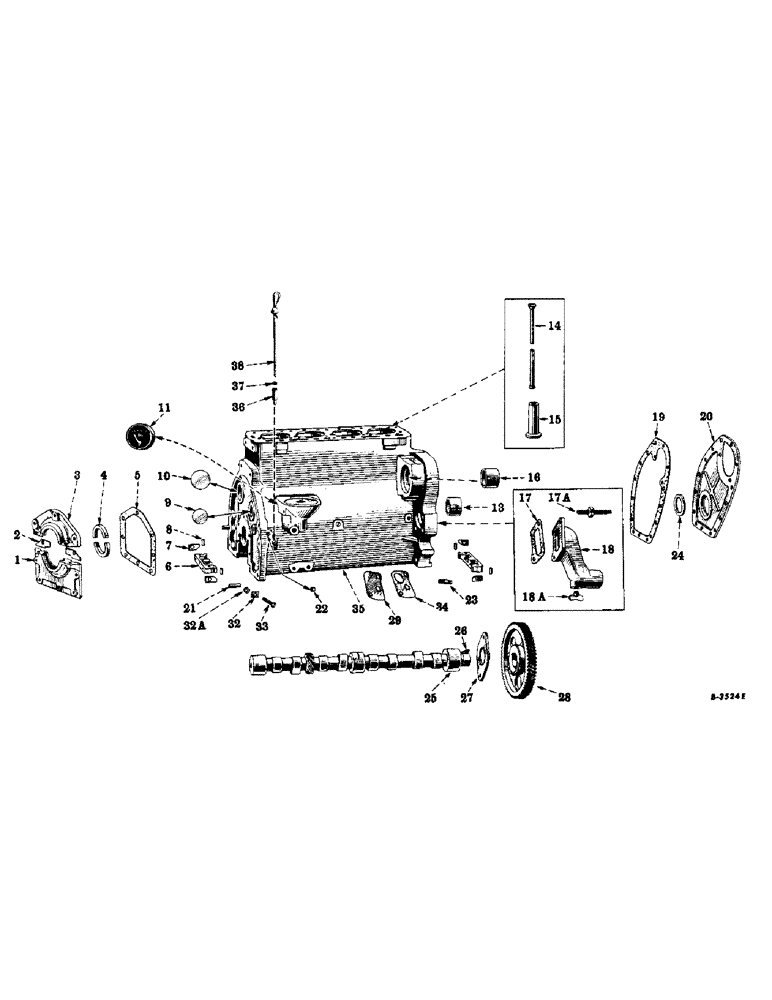

Запчасти Case IH SUPER AV-1 (012) - ENGINE, CRANKCASE, FRONT COVER, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

6102D

RETAINER

crankshaft rear oil seal, lower

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 7/8"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

43447D

GASKET

crankshaft rear oil seal retainer, center

2шт.

3

6101D

RETAINER

crankshaft rear oil seal, upper

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

OIL SEAL, felt, crankshaft, rear

2шт.

5

43448D

GASKET

crankshaft rear oil seal retainer

1шт.

6

6100D

PLATE, crankshaft oil seal retainer, front and rear

2шт.

7

43446D

GASKET

crankshaft oil seal retainer plate

4шт.

8

43445D

PLUGS, felt, crankshaft oil seal retainer plate

4шт.

9

172576

PLUG,Exp, 1 5/8"

expansion, 1-5/8"

1шт.

10

172592

SUPPORT

expansion, 2"

1шт.

11

364665R91

INDICATOR

GAUGE, oil pressure

1шт.

106649

ELBOW,45 Degree, 1/8" NPT Street

street, 45deg., M.I. 1/8" (oil pressure gauge)

1шт.

13

373102R1

BUSHING

camshaft front (used only with 366204R3 (NSS) crankcase)

1шт.

14

47386D

ROD

push valve (optional with 357548R1 and 360213R91)

8шт.

14

357548R1

ROD

push valve (optional with 47386D and 360213R91)

8шт.

14

360213R91

ROD

push valve (optional with 47386D and 357548R1)

8шт.

15

47384D

TAPPET

valve (optional with 356979R1)

8шт.

15

356979R1

TAPPET

valve (optional with 47384D)

8шт.

16

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

magneto and governor pinion

1шт.

17

46871D

GASKET

water inlet elbow (3 x 4" C-113 engine)

1шт.

17a

49279D

STUD, generator brace (3 x 4" C-113 engine)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

351962R11

ELBOW

water inlet w/plug, 103868 and plug, 143162 (will work for 6501DA, 6764DAX or 351963R1) (3 x 4" C-113 engine)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

143162

PLUG

pipe, sq-socket-hd., stl., 3/8" (optional with 444660)

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, pipe, sq-socket-hd., stl., 3/8" (optional with 143162)

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18a

45314DC

PLUG

water drain (3 x 4" C-113 engine)

1шт.

19

46179DD

GASKET

crankcase front cover

1шт.

20

46122DCX

COVER

crankcase, front, w/oil seal, 49177D and pointer

1шт.

179814

SPACER

11шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga

11шт.

21

15945D

DOWEL, clutch housing

2шт.

22

365101R1

PLUG

crankcase oil header, 1/8"

3шт.

23

251066R1

STUD, crankcase front cover

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga

1шт.

24

49177D

SEAL

OIL SEAL, crankcase front cover

1шт.

25

353609R2

PACKAGE

CAMSHAFT (will work for 9315D or 43251DA)

1шт.

26

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

woodruff, no. 91

1шт.

27

43249D

PLATE

thrust, camshaft (optional with 374704R1)

1шт.

27

374704R1

PLATE ASSY.

PLATE, thrust, camshaft (optional with 43249D)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

6779DB

GEAR

camshaft (66 teeth)

1шт.

29

251067R1

COVER

touch-control pump pad (for tractors not equipped with touch-control)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

30638D

BAR

LOCK, crankshaft bearing cap bolt, Serial Range: 250001-356774

6шт.

32a

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap, 356775 up

6шт.

33

24430D

BOLT, crankshaft bearing cap, Serial Range: 250001-340000

6шт.

33

360077R91

BOLT

crankshaft bearing cap, 17091R1, w/washer, 58516H (will work for 357937R1), Serial Range: 340001-356774

6шт.

33

17091R1

BOLT, hex-hd. self-locking, 1/2-13NC x 3" (crankshaft bearing cap), 356775 up

6шт.

34

350708R1

GASKET

touch-control pump pad cover (for tractors not equipped with touch-control)

1шт.

35

366294R93

1шт.

CRANKCASE, assembly (see note A) (composed of (6) bolt 17091R1, (9) bolt 364789R1, (1) bushing 43439DBR, (1) bushing 373102R1, (2) cap 8073DA (NSS), (1) cap 8074DA (NSS), (1) cover 251067R1, (1) crankcase 366204R3 (NSS), (2) dowel 15945D, (1) elbow 106649, (1) gage 362611R11, (1) gasket 350708R1, (1) plug 103866, (2) plug 143997, (1) plug 172576, (1) plug 172592, (3) 365101R1, (2) screw 179837, (1) sleeve 365936R1, (15) washer 58516H, (2) washer 103321)

1шт.

143997

PLUG

pipe, sq-socket, stl. 1/4"

2шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq.-hd. C1, 1/4" (optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd. stl. 1/4" (optional with 103866)

1шт.

36

361555R1

SLEEVE, oil level gage (for tractors equipped with oil level gage)

1шт.

37

34259H

WASHER, felt, oil level gage (for tractors equipped with oil level gage)

1шт.

38

362611R11

GAUGE

GAGE, bayonet type, engine oil level, w/shield and washer, 34259H (for tractors equipped with oil level gage)

1шт.

374899R91

PACKAGE ("fire crater increased power") (gasoline-standard altitude)

1шт.

374900R91

PACKAGE ("fire crater increased power") (gasoline-high altitude)

1шт.

366687R91

SLEEVE SET, crankcase (distillate-standard altitude)

1шт.

366653R91

SLEEVE SET, crankcase (distillate-high altitude)

1шт.

366652R91

SLEEVE SET, crankcase (kerosene-standard altitude)

1шт.

366655R91

SLEEVE SET, crankcase (kerosene-standard altitude)

1шт.
