Запчасти Case IH SUPER AV (148) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD, SERIAL NO. 356001 AND UP (12) - CHASSIS

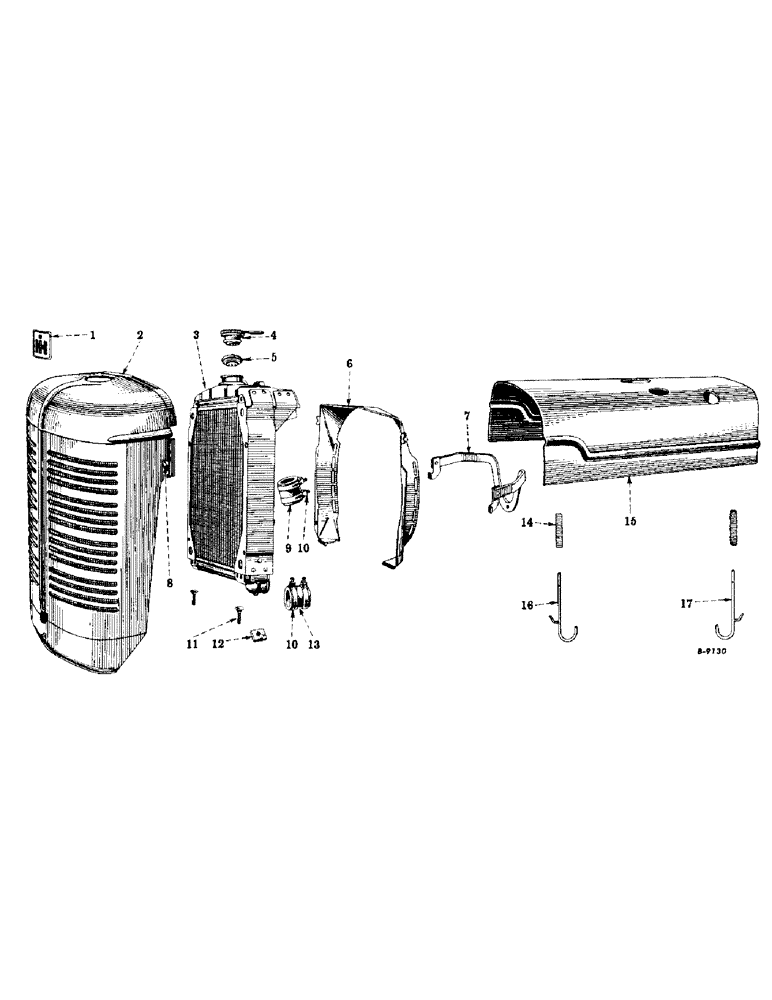

Схема запчастей Case IH SUPER AV - (148) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD, SERIAL NO. 356001 AND UP (12) - CHASSIS
5
10
11
7
9
1
2
12
4
6
15
3
13
10
14
8
16
17

Артикул

Название

Примечание

Количество

1

352580R1

PRODUCT GRAPHIC

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted-csk-fl-hd., no. 6 x 1/2"

1шт.

2

362455R91

GRILLE, radiator

1шт.

3

356356R94

RADIATOR

(optional with 358421R93)

1шт.

3

358421R93

RADIATOR (optional with 356356R94)

1шт.

4

37448DD

CAP, radiator filler (optional with 356710R91)

1шт.

4

356710R91

RADIATOR CAP

CAP, radiator filler (optional with 67448DD)

1шт.

5

352639R91

GASKET

radiator filler cap (used with 67448DC)

1шт.

6

351182R2

HOUSING, fan

4шт.

1033025

NUT, hex., 5/16-24NF

4шт.

217220

SCREW, cap, hex-hd., 5/16-24NF x 3-3/4"

2шт.

NLS

NO LONGER SERVICED

SCREW, cap, hex-hd., 5/16-24NF x 4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

356357R12

BRACE, radiator

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

58141DA

SCREW, radiator grille fastener

2шт.

9

355688R1

HOSE

radiator inlet (2-3/8" I.D. x 2-3/4" long, 3 ply)

1шт.

10

357870R91

CLAMP

radiator hose

4шт.

11

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

425-117

NUT,7/16"-20, G5

hex., 7/16-20NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

47240D

PAD

radiator

2шт.

13

351964R1

HOSE, radiator outlet (2" I.D. x 3" long, 3 ply)

1шт.

14

48707DA

SPRING

hood clamp hook

4шт.

15

351090R11

HOOD, w/brackets (gasoline)

1шт.

15

352051R11

HOOD, w/brackets (kerosene or distillate)

1шт.

16

58146D

CLAMP

hood, L.H., front

1шт.

16

58147D

CLAMP

hood, R.H., front

1шт.

16

363669R91

CLAMP

hood, R.H., rear (kerosene or Distillate) (will work for 60754D)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

351091R91

CLAMP, hood, L.H., rear

1шт.

17

351092R91

CLAMP

hood, R.H., rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

Выбрано товаров: 34
