Запчасти Case IH SUPER AV (146) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD, SERIAL NO. 25001 TO 355669 (12) - CHASSIS

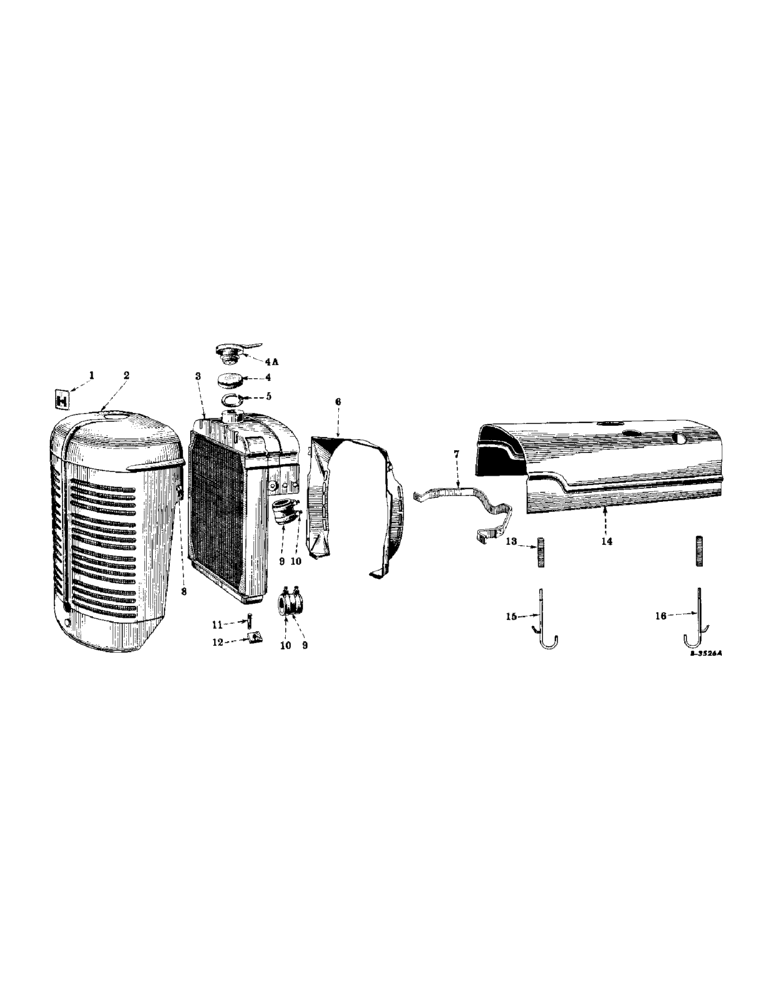

Схема запчастей Case IH SUPER AV - (146) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD, SERIAL NO. 25001 TO 355669 (12) - CHASSIS
9
15
7
13
11
1
9
14
4
6
3
16
10
8
5
12
4a
2
10

Артикул

Название

Примечание

Количество

1

352580R1

PRODUCT GRAPHIC

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted-fl-hd., csk, no. 6 x 1/2"

1шт.

2

58139DAX

GRILLE, radiator

1шт.

3

358104R93

RADIATOR, w/two studs, 47232DA (together with cap, 352631R91, (non-pressure) or cap, 358105R91 (pressure type) will work for 58124DBX) (optional with 358437R92 and 359644R91)

1шт.

3

358437R92

RADIATOR, w/two studs, 47232DA (together with cap, 352631R91 (non-pressure) or cap, 358105R91 (pressure type) will work for 58124DBX) (optional with 358104R93 and 359644R910

1шт.

3

359644R91

RADIATOR, w/two studs, 47232DA (together with cap, 352631R91 (non-pressure) or cap, 358105R91 (pressure type) will work for 58124DBX) (optional with 358104R93 and 358437R92)

1шт.

4

43983D

CAP

radiator, w/gasket, 43984D, Serial Range: 250001-336710

1шт.

4

43983DGV

RADIATOR CAP

Value, Radiator Cap

1шт.

4

352631R91

CAP

radiator, (non-pressure type), 336711 up

1шт.

4a

358105R91

ATTACHMENT, radiator pressure cap (consists of cap 67448DD) (used with 358104R93), 336711 up

1шт.

4a

67448DD

CYLINDER END CAP

CAP, radiator (pressure type) (optional with 356710R91), 336711 up

1шт.

4a

356710R91

RADIATOR CAP

CAP, radiator (pressure type) (optional with 67448DD), 336711 up

1шт.

5

43984D

GASKET

radiator cap, Serial Range: 250001-336710

1шт.

6

58130D

HOUSING, fan

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

186304

BOLT,Hex, 5/16" - 24 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 3-1/2"

2шт.

217220

SCREW, cap, hex-hd., 5/16-24NF x 3-3/4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

359170R12

BRACE, radiator (will work for 58129D)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

58141DA

SCREW, fastener, radiator grille (3 used-250001 to 355669) 356001 up

2шт.

9

351964R1

HOSE, radiator, 2" I.D. x 3" long, 3 ply

2шт.

10

357870R91

CLAMP

radiator, hose (will work for 91406HA)

4шт.

11

47232DA

STUD, mounting, radiator

2шт.

120370

NUT, hex., cd-pltd., 7/16-20NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

47240D

PAD

radiator

2шт.

13

48707DA

SPRING

hood clamp

4шт.

14

58144DX

HOOD (gasoline)

1шт.

14

58145DX

HOOD, w/bracket (distillate or kerosene)

1шт.

15

58147D

CLAMP

hood, R.H.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

15

363699R91

CLAMP, hood, R.H., rear (distillate or kerosene) (will work for 60754D)

1шт.

16

58146D

CLAMP

hood, L.H.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Выбрано товаров: 36
