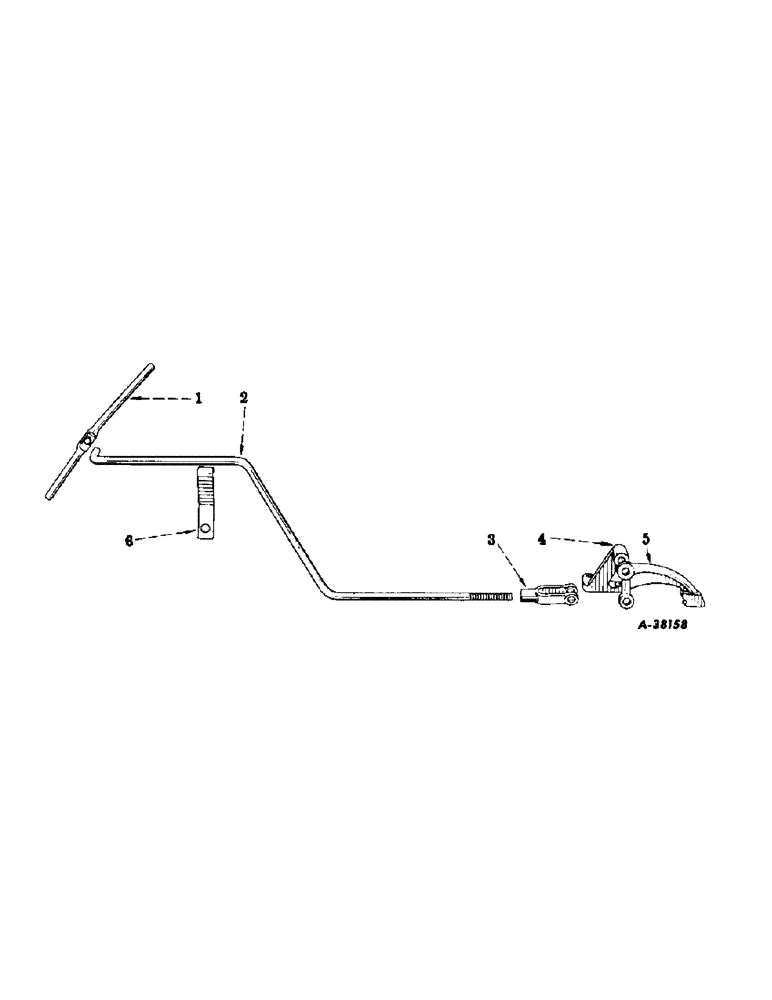

Запчасти Case IH SUPER AV (252) - HYDRAULIC SYSTEM, HYDRA-CREEPER, SPECIAL, CLUTCH INTERLOCK AND POWER TAKE-OFF SHIFTER LEVER, A & B (07) - HYDRAULIC SYSTEM

1

363757R1

LEVER, P.T.O. and clutch interlock shifter

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

2

363758R1

ROD, clutch interlock

1шт.

103026

NUT,3/8"-24, G5

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

3

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, rod end, adjustable (3/8")

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

114785

PIN, rod end, 3/8"

1шт.

4

363760R11

SUPPORT, clutch interlock, w/shaft

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

1шт.

181342

BOLT,Hex, 5/16" - 24 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 1-3/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

363759R1

ARM, clutch pedal interlock

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

615029R1

WASHER

3/8" I.D. x 3/4" O.D.

1шт.

6

363762R1

CLAMP, clutch interlock (on seat support mounting bracket)

1шт.
