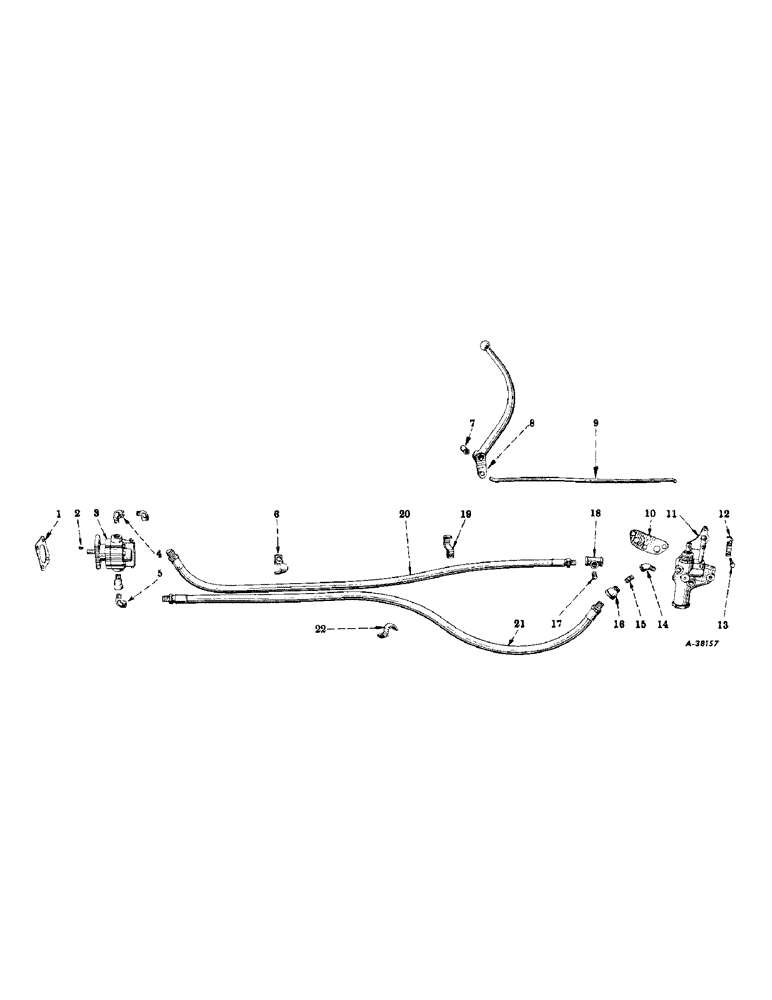

Запчасти Case IH SUPER AV (250) - HYDRAULIC SYSTEM, HYDRA-CREEPER, SPECIAL, HYDRAULIC MOTOR, HOSE CONNECTIONS AND REMOTE CONTROL (07) - HYDRAULIC SYSTEM

1

362289R1

GASKET, hydraulic motor mounting

1шт.

2

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

362288R91

MOTOR, hydraulic (for components see list of parts under detail of "hydraulic motor")

1шт.

103026

NUT,3/8"-24, G5

4шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8"

4шт.

4

364148R1

ELBOW

street, automotive pipe, 90deg., 1/2"

2шт.

5

444496

ELBOW, street, automotive pipe, 45deg., 1/2"

2шт.

6

362290R2

BRACKET, rear hose support

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

1шт.

7

356805R1

SLEEVE, auxiliary control valve lever, (A only)

1шт.

8

356804R2

LEVER, hydraulic auxiliary control valve remote control (A only)

1шт.

181351

BOLT,Hex, 5/16" - 24 x 3", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 3" (A only)

1шт.

Q243

WASHER

plain, 21/64" I.D. x 3/4" O.D. x no. 16 ga. (A only)

1шт.

9

363756R1

ROD, hydraulic auxiliary control valve lever connecting

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

10

356803R1

GASKET

hydraulic auxiliary control valve (A only)

1шт.

11

356788R92

VALVE, hydraulic auxiliary control (for components see list of parts under detail of "hydraulic auxiliary control valve") (A only)

1шт.

357874R2

SCREW, cap, auxiliary control valve (A only)

2шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (A only)

1шт.

444691

PLUG

pipe, automotive hex-socket, st., 1/4" (optional with 362355R2) (A only)

1шт.

362355R2

PLUG

pipe, auxiliary control valve (optional with 444691) (A only)

1шт.

217-459

DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF

drain, automotive hex-socket, stl, 1/4"

1шт.

12

362209R1

LATCH, control valve lever

1шт.

13

362210R1

SCREW, cap, control valve lever latch

2шт.

18411R1

NUT,#10-32, GB

control valve lever latch

2шт.

14

444492

ELBOW, street, automotive pipe, 45deg., 1/4"

1шт.

15

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, pipe, cd-pltd., 1/4 x 7/8"

1шт.

16

179752

COUPLING, reducing pipe

1шт.

17

192067

LUBE NIPPLE

NIPPLE, pipe, low pressure hose (3/8 x 1")

1шт.

18

179616

ROD

TEE, reducing pipe, low pressure hose (1/2 x 3/8")

1шт.

19

356809R1

BRACKET, front, hose support, L.H. (for tractors equipped with one piece battery box) (not illustrated) 250001 to 348643 (A only)

1шт.

19

363986R1

BRACKET, front hose support, L.H. (will work for 360383R1) (for tractors equipped with two piece battery box) 348644 up (A only)

1шт.

20

362216R91

HOSE, touch control cylinder block to motor, 1/2" I.D. x 54"

1шт.

21

352236R91

HOSE

hydraulic auxiliary control valve, 1/2" I.D. x 49-1/2" (will work for 362222R91)

1шт.

22

362290R2

BRACKET, front hose support, R.H.

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, cap, hex-hd., 7/16-14NC x 1-5/8"

1шт.

356803R1

GASKET

auxiliary control valve plate, 250001 to 275022 (A only)

1шт.

357209R1

PLATE, auxiliary control valve plate, 250001 to 275022 (A only)

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, manifold flange (illustrated with auxiliary control valve) (A only)

4шт.

356779R91

MANIFOLD

TUBES, manifold (illustrated with auxiliary control valve) (A only)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

2шт.
