Запчасти Case IH SUPER AV (241) - HYDRAULIC SYSTEM, ROCKSHAFT ARMS AND EXTENSION, SPECIAL, CONVERSION PARTS FOR A1-23 HIGHWAY MOWER (07) - HYDRAULIC SYSTEM

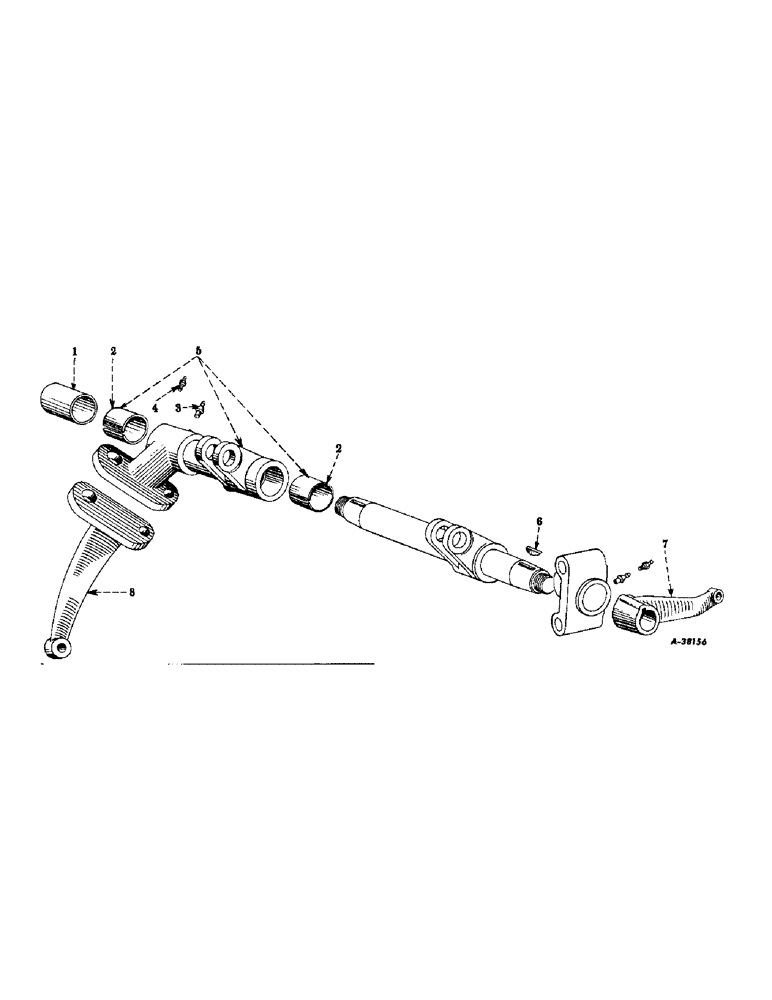

Схема запчастей Case IH SUPER AV - (241) - HYDRAULIC SYSTEM, ROCKSHAFT ARMS AND EXTENSION, SPECIAL, CONVERSION PARTS FOR A1-23 HIGHWAY MOWER (07) - HYDRAULIC SYSTEM
4
5
1
6
7
8
2
2
3

Артикул

Название

Примечание

Количество

358119R91

PACKAGE, touch-control conversion parts for use of A1-23 highway mower (for tractors equipped with touch-control) (consists of parts listed below except as noted)

1шт.

1

353742R1

SHIELD, rockshaft taper

1шт.

2

350693R1

BUSHING

rockshaft arm inner

2шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (optional with 15239E) (used in rockshaft arm with plain fitting hole) (see note)

1шт.

3

15239E

FITTING

lubrication, drive type, straight, 3/16" (optional with 443566) (used in rockshaft arm with plain fitting hole) (see note)

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (optional with 119512) (used in rockshaft arm with threaded fitting hole) (see note) 1/8"-27 x .66 lg

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (used in rockshaft arm with threaded fitting hole) (see note)

1шт.

5

451860R21

ARM, rockshaft, L.H., w/two bushings, 350693R1

1шт.

6

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, woodruff, 1/4 x 2-1/8" (see note)

1шт.

7

451861R1

ARM, rockshaft, R.H.

1шт.

8

451862R1

EXTENSION, rockshaft arm, left

1шт.

13354R1

BOLT, machine, sq-hd., drilled 1/2-13NC x 2-1/8"

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/8-10NC

1шт.

L64

NUT

horned, 1/2-13NC

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

1шт.

353739R1

ACTUATOR, check valve, front (illustrated with touch-control cylinder block)

2шт.

353741

ACTUATOR, check valve, rear (illustrated with touch-control cylinder block)

2шт.

Выбрано товаров: 18
