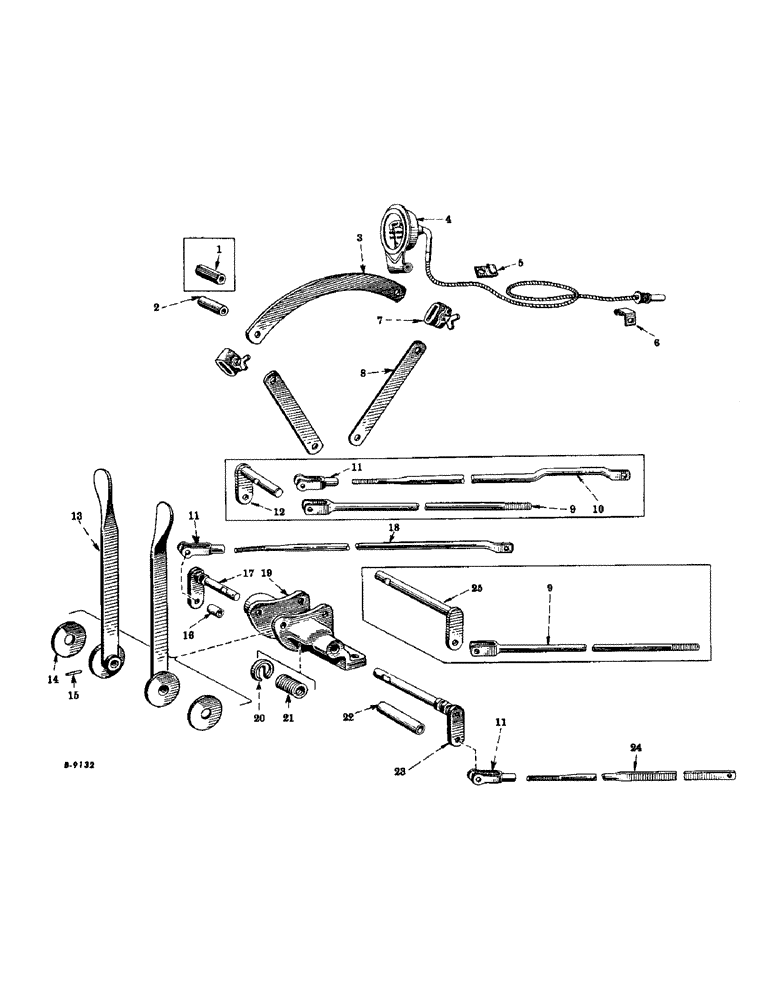

Запчасти Case IH SUPER AV (230) - HYDRAULIC SYSTEM, TOUCH-CONTROL, LEVERS, SHAFTS, ARMS AND RODS (07) - HYDRAULIC SYSTEM

1

351129R1

SPACER

touch-control quadrant support arm (hex shaped) (order 354138R1, screw, 181325 washer, 103319 and nut, 103024) 250001 to 277988 (A only)

2шт.

2

354138R1

SPACER

touch-control quadrant suppor;t arm (round (2 used on tractors not equipped with heat indicator) 277989 up

1шт.

2

354138R1

SPACER

touch-control quadrant support arm (round) (2 used on tractors not equipped with heat indicator) 277989 up

2шт.

3

350712R1

SECTOR

QUADRANT, touch-control

2шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF (used with round spacer)

2шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 5/8" (used with hex spacer) (A only)

4шт.

181325

BOLT,Hex, 1/4" - 28 x 2 1/2", Gr 5

(used with round spacer) Hex, 1/4"-28 x 2 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (4 used with hex., spacer) 1/4"

2шт.

4

355840R91

DIPSTICK

INDICATOR, heat, assembly (optional with 356465R91) (for tractors equipped with heat indicator) (A only)

1шт.

4

356465R91

INDICATOR

heat, assembly (optional with 355840R91) (for tractors equipped with heat indicator) (A only)

1шт.

5

61813D

CLIP

heat indicator cable (on steering shaft support) (will work for 355846R1) (for tractors equipped with heat indicator) (A only)

1шт.

6

355847R1

CLIP, heat indicator cable (on one-piece battery box hold-down bolt) (for tractors equipped with heat indicator) (A only)

1шт.

6

359526R1

CLIP, heat indicator cable (on two-piece battery box mounting bolt) (for tractors equipped with heat indicator) (A only)

1шт.

7

350717R91

INDICATOR

touch-control stop, w/thumb screw (will work for 350713R91)

4шт.

8

350711R1

ARM, touch-control quadrant support

4шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

350725R11

ROD, touch-control, w/yoke, Serial Range: 250001-2750220

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF (A only)

4шт.

53368VA

PIN, rod end., dld., 1/4 x 5/8", Serial Range: 250001-275022

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

10

354377R2

ROD, touch-control, L.H., Serial Range: 275023-288435

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

11

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, adjustable rod end, 1/4-28NF, 275023 up

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rod end, dld., 1/4 x 51/64", 275023 up

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

12

350721R11

SHAFT, hand control lever, L.H., w/3/16" thick arm, 250001 to 275002 (A only)

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

12

354370R91

SHAFT, hand control lever, L.H., w/9/32" thick arm, 275023 to 288435 (A only)

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A only) 3/32" x 3/4"

1шт.

Q1510

WASHER

plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga. (A only)

1шт.

13

350719R13

LEVER

hand control

2шт.

14

63090D

WASHER,13.1mm ID x 41.27mm OD x 3.97mm Thk

DISC, friction, hand control lever (1-5/8" O.D. x 5/32" thick) 275023 up

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

14

350912R1

DISC, friction, hand control lever (1-3/4" O.D. x 1/16" thick) 25001 to 275022 (A only)

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

15

142486

PIPE

PIN, roll, 1/8 x 3/4", 250001 to 275022 (A only)

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

15

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, , 275023 up 5/32" x 3/4", Slotted

2шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

16

354752R1

SPACER, hand control lever shaft, L.H. (for adjustable shaft) 288436 up

1шт.

17

354750R11

LEVER

SHAFT, hand control lever, L.H., w/arm and two nuts 288436 up

1шт.

Q1510

WASHER

plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga.

1шт.

18

354754R1

ROD, touch-control, L.H., 288436

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

19

350710R1

BRACKET, touch-control support (for non-adjustable shafts) (order 354755R91) 250001 to 288435 (A only)

1шт.

19

354749R1

BRACKET, touch-control support (for adjustable shafts) 288436 up

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

351128R1

WASHER

RETAINER, spring, control lever shaft

2шт.

21

350724R1

SPRING, friction, hand control lever (for non-adjustable shafts) 250001 to 288435 (A only)

2шт.

21

354746R1

SPRING

friction, hand control lever (for adjustable shafts) 288436 up

2шт.

22

354753R1

SPACER

hand control lever shaft, R.H. 288436 up

1шт.

23

354751R11

LEVER

SHAFT, hand control lever, R.H., w/arm and two nuts, 288436 up

1шт.

Q1510

WASHER

plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga.

1шт.

24

354376R2

ROD

touch-control, R.H., 275023 up

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

25

350723R11

SHAFT, hand control lever, R.H., w/3/16" thick arm, Serial Range: 250001-275022

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

25

354371R91

SHAFT, hand control, lever R.H., w/9/32" thick arm, 275023 to 288435 (A only)

1шт.

256439, 268264, 268265, 272330, 272804 thru 272807, 273128, 273371, 273372, 273889 thru 273891, 274457 thru 274463, 274473, 274581, 274583, 274585 thru 274594, 274790, 274799, 274825 thru 274836, 274858, 274860, 274861, 274863 thru 274866, 274878 thru 274976, 274978 thru 274987, 274997 thru 275022

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A only) 3/32" x 3/4"

1шт.

Q1510

WASHER

steel, plain, 15/32" I.D. x 13/16" O.D. x no. 14 ga. (A only)

1шт.

354741R1

CLIP, cable harness (on cylinder block mounting bolts) (B only)

4шт.

351699R1

CLIP, magneto ignition switch cable (B only)

2шт.

350633R3

CLIP

choke rod, front (illustrated with governor and choke controls) (B only)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16" (B only)

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (B only) 1/4"

1шт.

357693R91

PACKAGE, field, hydraulic lift heat indicator (consists of - (1) clip 61813D, (2) clip 355847R1, (1) clip 359526R1, (1) indicator 355840R91, (1) strainer 355844R91) (A only)

1шт.

354755R91

PACKAGE, service, touch-control support bracket (will work for 350710R1) (consists of - (1) bracket 354749R1, (2) pin 17157R1, (1) shaft 354750R11, (1) shaft 354751R11, (1) spacer 354752R1, (1) spacer 354753R1, (2) spring 354746R1), Serial Range: (250001-288435)

1шт.
