Запчасти Case IH SUPER AV (125) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHTS, SEALED BEAM (06) - ELECTRICAL SYSTEMS

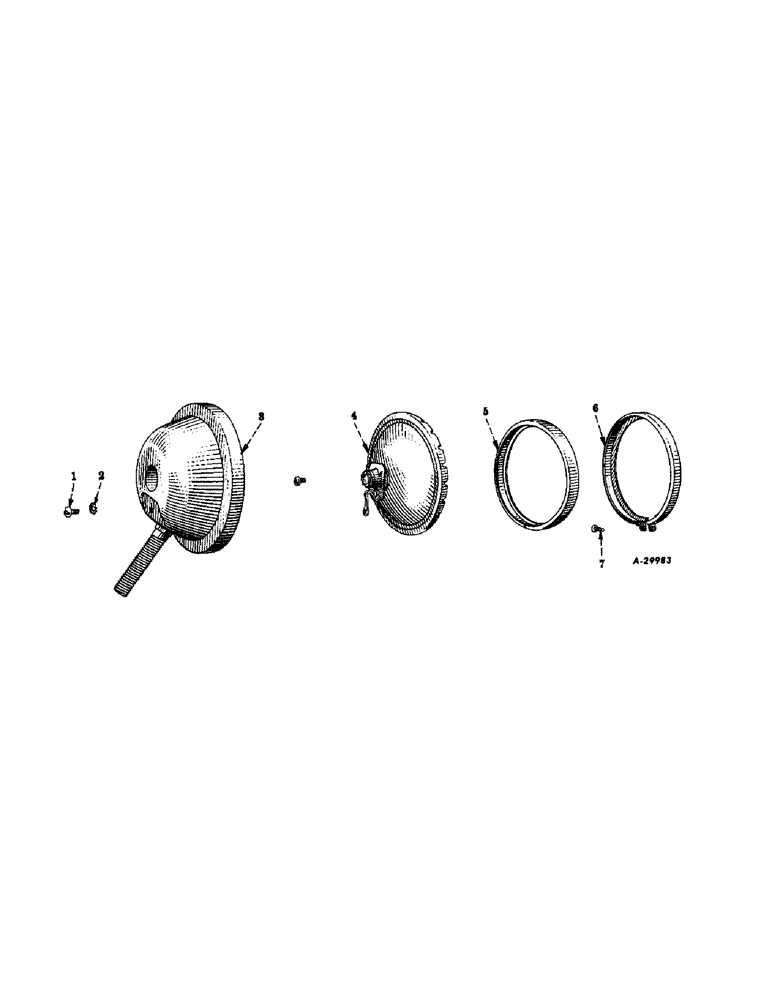

Схема запчастей Case IH SUPER AV - (125) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHTS, SEALED BEAM (06) - ELECTRICAL SYSTEMS
1
3
4
5
7
2
6

Артикул

Название

Примечание

Количество

357884R93

HEADLIGHT OR REAR LIGHT (sealed beam), assembly (6 volt)

1шт.

1

455347

SCREW, machine, slotted-pan-hd., brs., ni-bright 8-32NC x 1/4"

2шт.

2

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

3

BODY (not serviced separately - order light, assembly)

1шт.

4

358890R92

LAMP, sealed, beam, w/screw, 455347 and washer, 138530 (6 volt)

1шт.

5

358892R91

CABLE PULLING GRIP

GASKET

1шт.

6

358891R92

MOLDING

MOULDING

1шт.

7

53526D

SCREW

moulding

1шт.

Выбрано товаров: 8
