Запчасти Case IH SUPER AV (122) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHTS AND SUPPORTS (06) - ELECTRICAL SYSTEMS

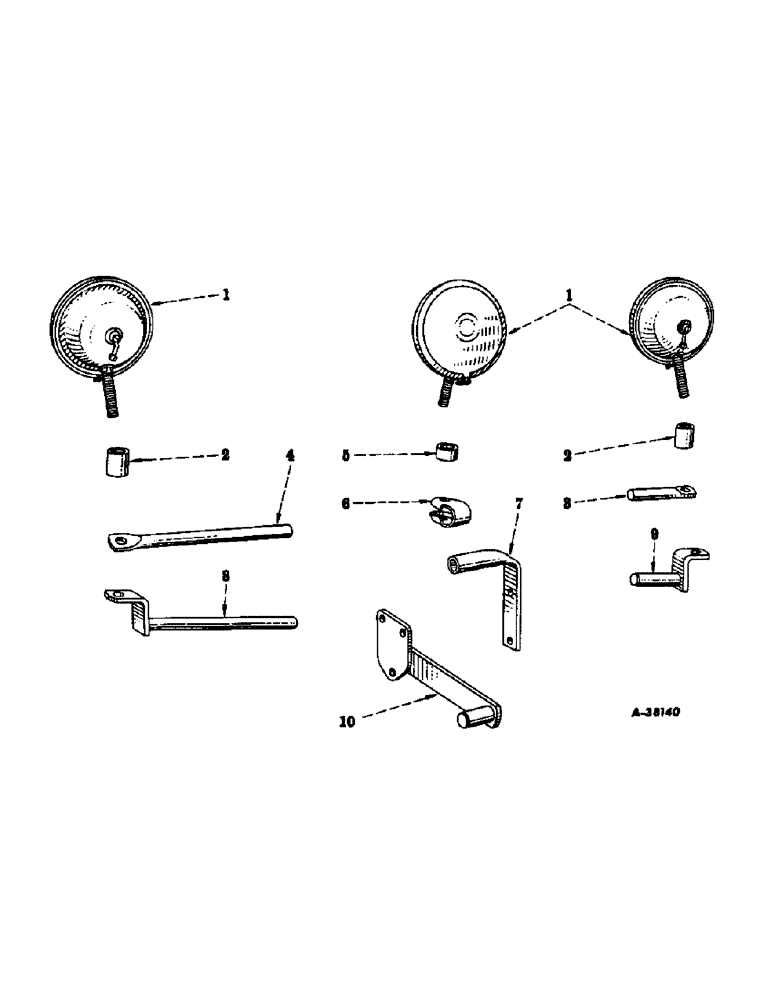

Схема запчастей Case IH SUPER AV - (122) - ELECTRICAL SYSTEM, HEADLIGHTS OR REAR LIGHTS AND SUPPORTS (06) - ELECTRICAL SYSTEMS
8
3
1
2
9
4
1
2
6
10
7
5

Артикул

Название

Примечание

Количество

1

45640DB

LAMP

HEADLIGHT or rear light (conventional) assembly (for components see list of parts under detail of "Headlights or Rear Light Unit")

3шт.

1

357884R93

HEADLIGHT or rear light (sealed beam), assembly (for components see list of parts under detail of "Headlights or Rear Light Unit")

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

2

45569D

SPACER

headlight

1шт.

3

49393D

POST

light, right front (Super A and A-1) (not used on tractors equipped with adjustable front axle and 6:00 - 16 tires)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

4

49394D

ROD

POST, light, left front (Super A and A-1) (not used on tractor equipped with adjustable front axle and 6:00 - 16 tires)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

5

49069D

SPACER

rear light

1шт.

6

350920R1

CLAMP

rear light

1шт.

7

512699R1

BRACKET, rear light (for tractors equipped with fast-hitch)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

60393DX

POST, front light, L.H. (Super AV and AV-1) (also Super "A" and A-1 equipped with adjustable front axle and 6:00 - 16 tires)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

9

60394DX

POST, front light R.H. (Super AV and AV-1) (also Super "A" and A-1 equipped with adjustable front axle and 6:00 - 16 tires)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

10

350016R21

POST, rear light (not used on tractors equipped with fast-hitch)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Выбрано товаров: 27
