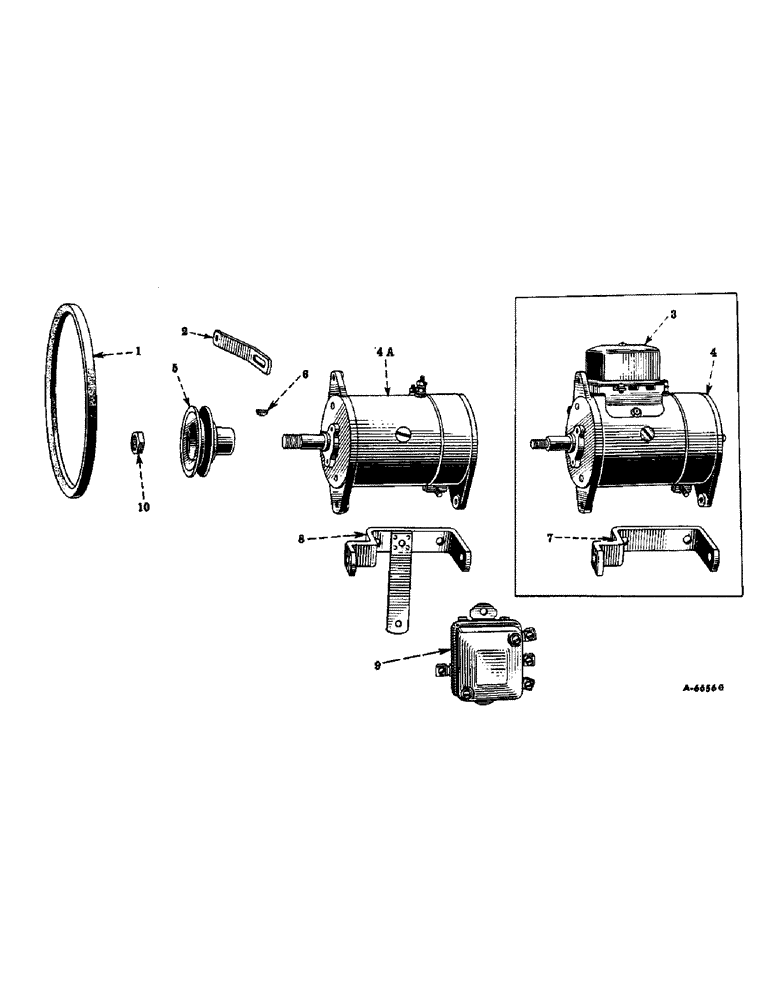

Запчасти Case IH SUPER AV (108) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

49291D

V-BELT,0.53" W

Generator, 250001 to 317191

1шт.

1

52318DA

V-BELT,0.55" W

Generator, 317192 up

1шт.

2

49288DA

SPARE PART BRACE, generator

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

3

46412D

GENERATOR

RELAY, generator, assembly (see note A)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 3/8" (see note A)

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, external-tooth, cd-pltd., no. 10 (see note A)

2шт.

120391

WASHER,#10

WASHER, cd-pltd., 7/32" I.D. x 1/2" O.D. x no. 18 ga. (see note A)

2шт.

4

356936R91

GENERATOR

GENERATOR, assembly (will work for 45634D) (see note A) (1) cable 356938R91, (1) cable 356939R91, (1) generator 356937R91 (1) relay 46412D, (2) screw 132900, (2) washer 120391, (2) washer 138479)

1шт.

4

356937R91

GENERATOR

GENERATOR, assembly (see note A) (for components see list of parts under details of "Generator")

1шт.

4

103812A1R

REMAN-GENERATOR

Generator

1шт.

4

103812A1C

CORE-GENERATOR

Return Part Number

1шт.

4

103821A1R

REMAN-GENERATOR

Generator

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

4

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

4

104026A1R

REMAN-GENERATOR

Remanufactured Generator - 6 volt 11 ampere

1шт.

4

104026A1C

CORE-GENERATOR

Return Part Number, Generator - 6 volt 11 ampere

1шт.

220065

NUT, hex., 5/16-18NC

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q1520

WASHER

WASHER, plain, 1/2"

1шт.

4a

354237R91

SPARE PART GENERATOR, assembly (see note B) (for components see list of parts under details of "Generator")

1шт.

220065

NUT, hex., 5/16NC

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

6812D

PULLEY

PULLEY, generator, Serial Range: 250001-317191

1шт.

5

356744R1

PULLEY

PULLEY, generator, 317192 up

1шт.

6

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, woodruff, 1/8 x 5/8"

1шт.

7

49287DD

SPARE PART BRACKET, generator (see note B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

354238R94

SPARE PART BRACKET, generator (see note B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

360898R91

REGULATOR

REGULATOR, voltage assembly (will work for 354234R91) (see note B) (for components see list of parts under details of "Voltage Regulator")

1шт.

179788

SHEET

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

NUT, armature shaft (Delco-Remy 1914308)

1шт.

.

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

356938R91

SPARE PART CABLE, generator "A" terminal to ground (used with generator, 356937R91) (see note A)

1шт.

356939R91

SPARE PART CABLE, generator "F" terminal to relay "F" terminal (used with generator, 356937R91) (see note A)

1шт.
