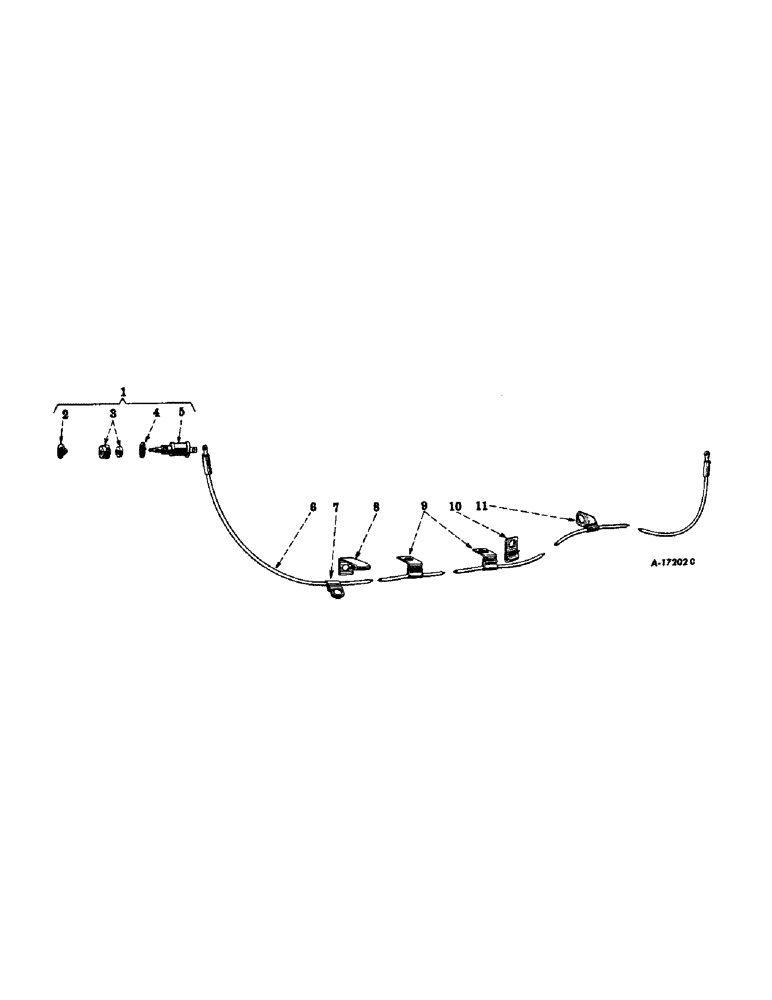

Запчасти Case IH SUPER AV (106) - ELECTRICAL SYSTEM, MAGNETO IGNITION SWITCH AND CABLE (06) - ELECTRICAL SYSTEMS

1

54207DB

SWITCH

magneto ignition, assembly (composed of - (1) knob 8732D, (1) nut 56517DX, (1) screw 64022H, switch (NSS), (1) washer 120217, (1) washer 121841, (1) washer 138553)

1шт.

2

8732D

KNOB, switch

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

NUT, mounting, magneto ignition switch, w/seal

1шт.

138553

WASHER

lock, internal-tooth, cd-pltd., 9/16"

1шт.

4

59109D

SPACER, magneto ignition switch (for tractors not equipped with starting and lighting)

1шт.

5

SWITCH, magneto ignition (not serviced separately) (order 54207DB)

1шт.

64022H

SCREW, ignition switch cable

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

6

56683D

CABLE, magneto ignition switch (not tractors equipped with lighting and starting)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

61813D

CLIP

cable (for tractors not equipped with starting and lighting), Serial Range: 250001-348643

1шт.

8

355574R1

CLIP

cable (for tractors not equipped with starting and lighting), 348644 up

1шт.

9

351699R1

CLIP, magneto ignition switch cable (tractor equipped with touch control)

2шт.

10

61387D

CLIP, magneto ignition switch cable (tractors without touch control)

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

351871R1

CLIP, magneto ignition switch cable (for tractors not equipped with starting and lighting)

1шт.
