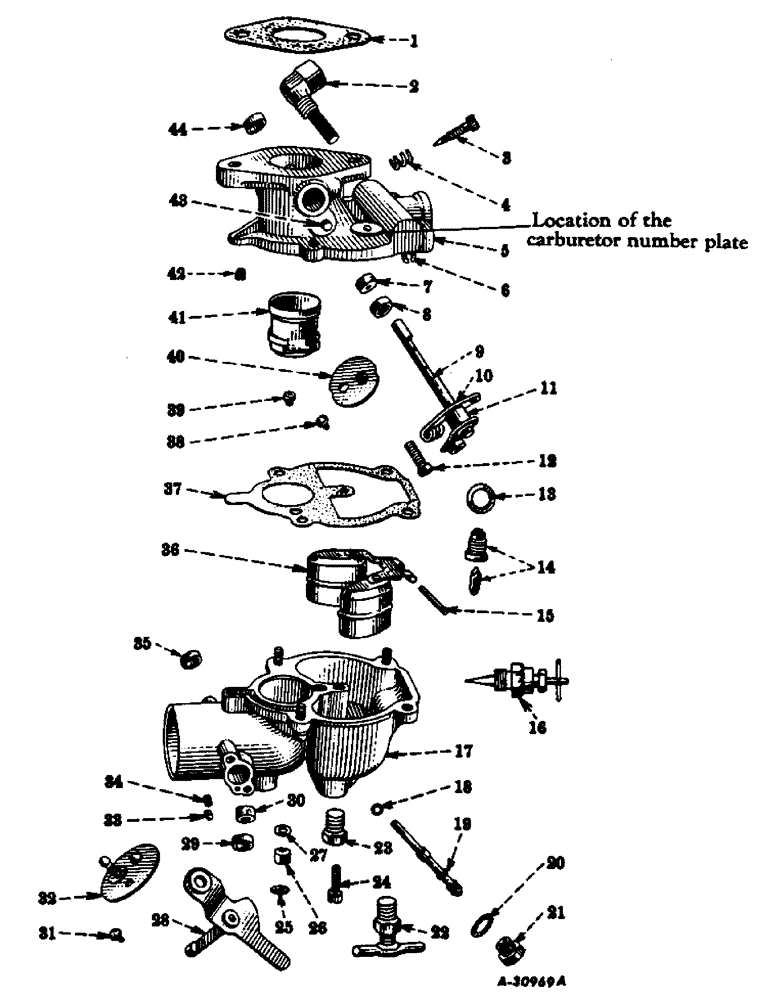

Запчасти Case IH SUPER AV (052) - ENGINE, CARBURETOR, ZENITH MODEL, 67 X 7 (01) - ENGINE

355485R91

CARBURETOR

assembly (gasoline) (will work for 352376R92) (see Note) (optional with Carter carburetor, 373957R91) (3 x 4" C-113 engine), 255418 up

1шт.

362384R91

CARBURETOR

assembly (gasoline) (3-1/8 x 4" C-123 engine) (optional with Carter carburetor, 373962R91) (see Note)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(Not part of carburetor assembly) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Not part of carburetor assembly) 5/16"

2шт.

357156R91

CARBURETOR

assembly (distillate or kerosene) (will work for 352377R92) (see Note) (optional with Carter carburetor, 373959R91) (3 x 4" C-113 engine), 255418 up

1шт.

356901R91

CARBURETOR

assembly (distillate or kerosene) (3-1/8 x 4" C-123 engine) (optional with Carter carburetor, 373961R91) (see Note)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(Not part of carburetor assembly) 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Not part of carburetor assembly) 5/16"

2шт.

1

24520D

GASKET

carburetor (not part of carburetor assembly)

1шт.

2

53796D

ELBOW

w/strainer

1шт.

3

13873D

NEEDLE

VALVE, needle, idle adjusting

1шт.

4

12472D

SPRING

idle adjusting needle valve

1шт.

5

357142R92

BODY, throttle, assembly (composed of - (1) body (NSS), (1) bracket 53789D, (1) pin 54061D, (1) plate 357144R1, (1) plug 53797d, (1) retainer 42191D, (2) screw 145371, (2) screw 357155R91, (1) shaft 62170D, (1) spacer 54062D, (1) washer 21210D)

1шт.

6

53789D

BRACKET, float

1шт.

145371

SCREW, drive, rd-hd., cd-pltd., no. 2 x1/4"

2шт.

7

21210D

WASHER

packing, throttle shaft

1шт.

8

42191D

RETAINER

packing, throttle shaft

1шт.

9

62170D

SHAFT, throttle, w/lever, screw, 12455D and pin, 134645H

1шт.

10

54062D

WASHER

throttle lever

1шт.

11

135645H

PIN, taper

1шт.

12

12455D

SCREW, throttle stop

1шт.

13

53792D

WASHER

fuel valve

1шт.

14

353241R91

VALVE

fuel, w/seat

1шт.

15

62174D

PIN

AXLE, float

1шт.

16

53786D

ADJUSTER

VALVE, needle main jet adjustment, w/body and sleeve (distillate or kerosene)

1шт.

17

357143R91

BOWL

fuel, assembly (composed of - (1) bowl (NSS), (1) felt 40534D, (1) plug 40535D, (1) plug 53797D, (1) retainer 42191D, (1) washer 12469D, (1) washer 21210D)

1шт.

18

357153R1

WASHER, fibre, discharge jet

1шт.

19

357886R91

JET, main discharge (distillate or kerosene) (used with carburetor, 356901R91)

1шт.

19

360049R91

JET, main discharge (distillate or kerosene) (used with carburetor, 357156R91)

1шт.

19

357145R91

JET, main discharge (gasoline) (used with carburetor, 355485R91)

1шт.

19

362452R91

JET, main discharge (gasoline) (used with carburetor, 362384R91)

1шт.

20

12433D

WASHER

fibre, main passage

1шт.

21

16825D

PLUG

lower (gasoline) (main jet passage)

1шт.

22

53791D

COCK, drain (distillate or kerosene)

1шт.

23

54063D

PLUG

drain (gasoline)

1шт.

24

357154R91

SCREW, bowl to body, w/washer

4шт.

25

40535D

PLUG

drip

1шт.

26

40534D

WASHER

FELT, drip plug

1шт.

27

12469D

WASHER, drip plug

1шт.

28

357148R91

LEVER

SHAFT, choke valve, w/lever

1шт.

29

42191D

RETAINER

packing, choke shaft

1шт.

30

21210D

WASHER

packing choke shaft

1шт.

31

3571559R1

SCREW, choke valve plate, w/lock washer

2шт.

32

357147R91

PLATE, choke valve, w/rivet and spring

1шт.

33

357150R1

PIN, friction, choke lever

1шт.

34

357149R1

SPRING

friction, choke lever

1шт.

35

53797D

PLUG

choke shaft hole

1шт.

36

53783D

FLOAT

1шт.

37

357151R1

GASKET

, Serial Range: bowl-body

1шт.

38

357155R91

SCREW, throttle valve plate, w/lock washer

2шт.

39

69624D

JET, well vent (distillate or kerosene) (used with carburetor, 356901R91)

1шт.

39

94091H

JET, well vent (distillate or kerosene) (used with carburetor, 357156R91)

1шт.

39

352894R1

JET, well vent (gasoline) (used with carburetor, 355485R91)

1шт.

39

94092H

JET, well vent (gasoline) (used with carburetor, 362384R91)

1шт.

40

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

41

62171D

VENTURI (distillate or kerosene) (used with carburetors, 356901R91 and 357156R91)

1шт.

41

62171D

VENTURI (gasoline) (used with carburetor, 362384R91)

1шт.

41

352890R1

VENTURI

(gasoline) (used with carburetor, 355485R91)

1шт.

42

352891R1

JET, idling (gasoline) (used with carburetors, 355485R91 and 362384R91)

1шт.

42

352891R1

JET, idling (distillate or kerosene) (used with carburetor, 356901R1)

1шт.

42

360048R1

JET, idling (distillate or kerosene) (used with carburetor, 357156R91)

1шт.

43

54061D

PIN, throttle lever stop

1шт.

44

53797D

PLUG

throttle shaft hole

1шт.

357152R91

GASKET KIT

SET (not part of carburetor assembly) (consists of - (1) gasket 357151R1, (1) washer 12433D, (1) washer 53792D, (1) washer 357153R1)

1шт.
