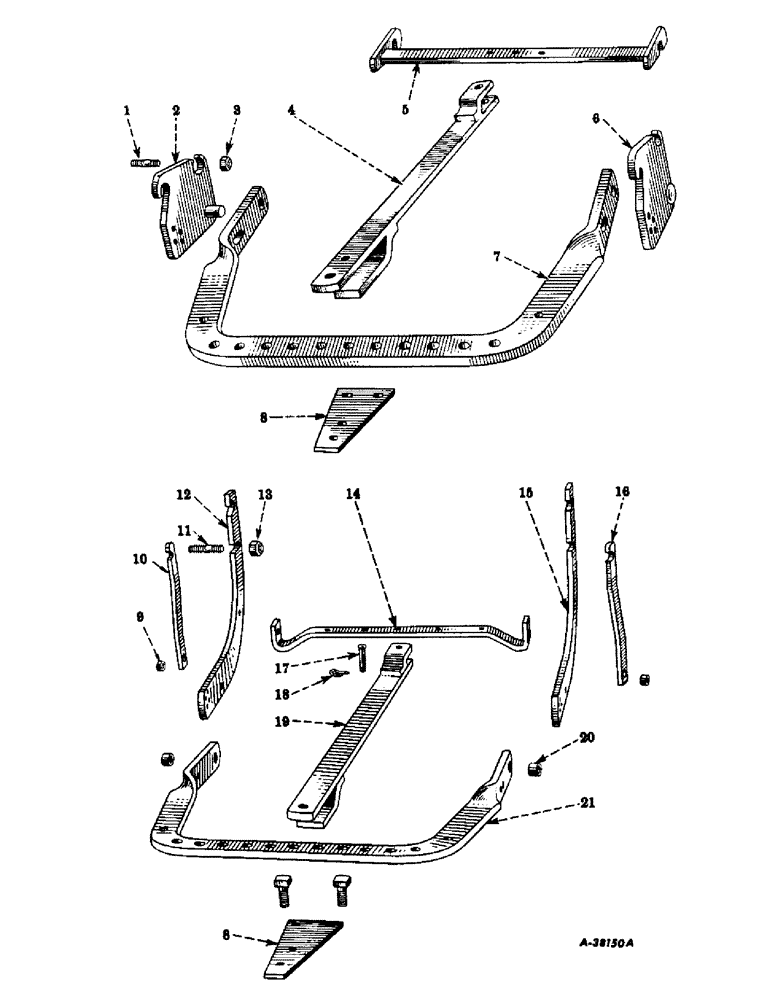

Запчасти Case IH SUPER AV (210) - CHASSIS, FIXED DRAWBARS, NOT USED ON TRACTORS WITH FAST-HITCH (12) - CHASSIS

69426D

ATTACHMENT, swinging drawbar (Super A and A-1) (consists of reference nos. 4, 5 and attaching parts) (A only)

1шт.

351685R91

DRAWBAR

ATTACHMENT, swinging drawbar (Super AV and AV-1) (consists of reference nos. 17, 18, 19 and attaching parts) (B only)

1шт.

1

69499D

STUD

quick attachable drawbar (2-1/2" long) (A only)

8шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (A only) 1/4" x 1 1/4"

1шт.

3

69500D

SPECIAL NUT

NUT, quick attachable drawbar stud (A only)

8шт.

4

69422DX

DRAWBAR, swinging (for trators equipped with swinging drawbar) (see note A) (A only)

1шт.

13296R1

BOLT, machine, 3/4-10NC x 1-1/2" (see note A and B) (A only)

2шт.

425-1110

NUT,5/8"-18, G5

(See note A) (A only) 5/8"-18, G5

1шт.

220081

NUT

hex., 3/4-10NC (see note A and B) (A only)

2шт.

27591

YOKE

SCREW, cap, hex-hd., 5/8-18NF x 3" (see note A) (A only)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (See note A) (A only) 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note A and B) (A only) 3/4"

2шт.

5

69425DX

BAR, anchor, swinging drawbar (for tractors equipped with swinging drawbar) (see note A) (A only)

1шт.

103346

WASHER

plain, 13/16" I.D. x 1-1/2" O.D. x no. 10 ga. (used as attaching shim) (see note A) (A only)

1шт.

6

350834R11

BRACKET, quick atachable drawbar, R.H. (A only)

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (A only) 1/4" x 1 1/4"

1шт.

7

350832R1

DRAWBAR, quick attachable (A only)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (see A only)

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2" (A only)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" I.D. x 1-1/16" O.D. x no. 13 ga. (A only)

2шт.

8

66185D

BAR

EXTENSION, drawbar (tractors equipped with power take-off) (see note A)

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC (see note A)

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2" (note A)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note A) 3/4"

2шт.

9

351721R1

BUSHING, brace, quick attachable drawbar (B only)

2шт.

10

351719R1

BRACE, quick attachable drawbar, L.H. (B only)

1шт.

11

352117R1

STUD

quick attachable drawbar, (2-3/4" long) (B only)

12шт.

12

351717R1

BRACKET, quick attachable drawbar, L.H. (B only)

1шт.

13

69500D

SPECIAL NUT

NUT, quick attachable drawbar stud (B only)

12шт.

14

351722R1

BAR, anchor, drawbar (B only)

1шт.

425-1110

NUT,5/8"-18, G5

(B only) 5/8"-18, G5

2шт.

271587

WASHER

SCREW, cap, hex-hd., 5/8-18NF x 2" (B only)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (B only) 5/8"

2шт.

15

351718R1

BRACKET, quick attachable drawbar, R.H. (for tractors equipped with swinging drawbar) (B only)

1шт.

16

351720R1

BRACE, quick attachable drawbar, R.H. (for tractors equipped with swinging drawbar) (B only)

1шт.

17

351715R1

PIN, swinging drawbar pivot (for tractors equipped with swinging drawbar) (B only)

1шт.

18

PO18500A

PIN

cotter, quick attachable (for tractors equipped with swinging drawbar) (B only)

1шт.

19

57890DX

DRAWBAR, swinging (for tractors equipped with swinging drawbar) (B only)

1шт.

13296R1

BOLT, machine, 3/4-10NC x 1-1/2" (see note B) (B only)

2шт.

220081

NUT

hex., 3/4-10NC (see note B) (B only)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note B) (B only) 3/4"

2шт.

20

351727R1

BUSHING, quick attachable drawbar (B only)

2шт.

21

351716R2

DRAWBAR, quick attachable (B only)

1шт.

218197

NUT,3/4"-16, G5

hex., 3/8-16NF (B only)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (B only)

2шт.

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 3" (B only)

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2" (B only)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (B only) 3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B only) 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" I.D. x 1-1/16" O.D. x no. 13 ga. (B only)

2шт.

NLS

NO LONGER SERVICED

plain, 13/16" I.D. x 1-1/2" O.D. x no. 10 ga. (B only)

2шт.
