Запчасти Case IH SUPER AV (206) - CHASSIS, FENDER (12) - CHASSIS

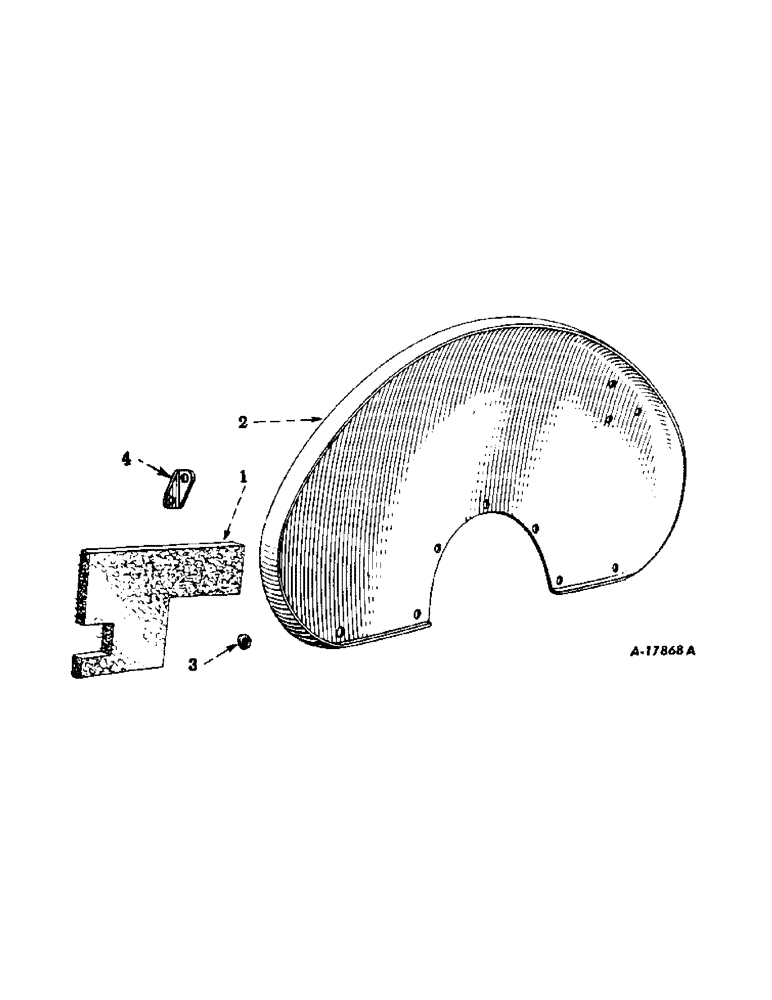

Схема запчастей Case IH SUPER AV - (206) - CHASSIS, FENDER (12) - CHASSIS
4
2
1
3

Артикул

Название

Примечание

Количество

1

55788DA

PAD, felt, fender to transmission case (used on left fender only)

1шт.

2

350608R1

FENDER

rear, L.H.

1шт.

280136

NUT,3/8"-16, G8

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16"

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

350609R1

FENDER, rear, R.H.

1шт.

103026

NUT,3/8"-24, G5

7шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1"

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

5шт.

181425

BOLT,Hex, 1/2" - 20 x 3/4"

SCREW, cap, hex-hd., 1/2-20NF x 3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

24523D

WASHER

SPACER, right hand fender (will work for 22828D)

1шт.

4

43514D

CLIP, left hand fender support

1шт.

Выбрано товаров: 18
