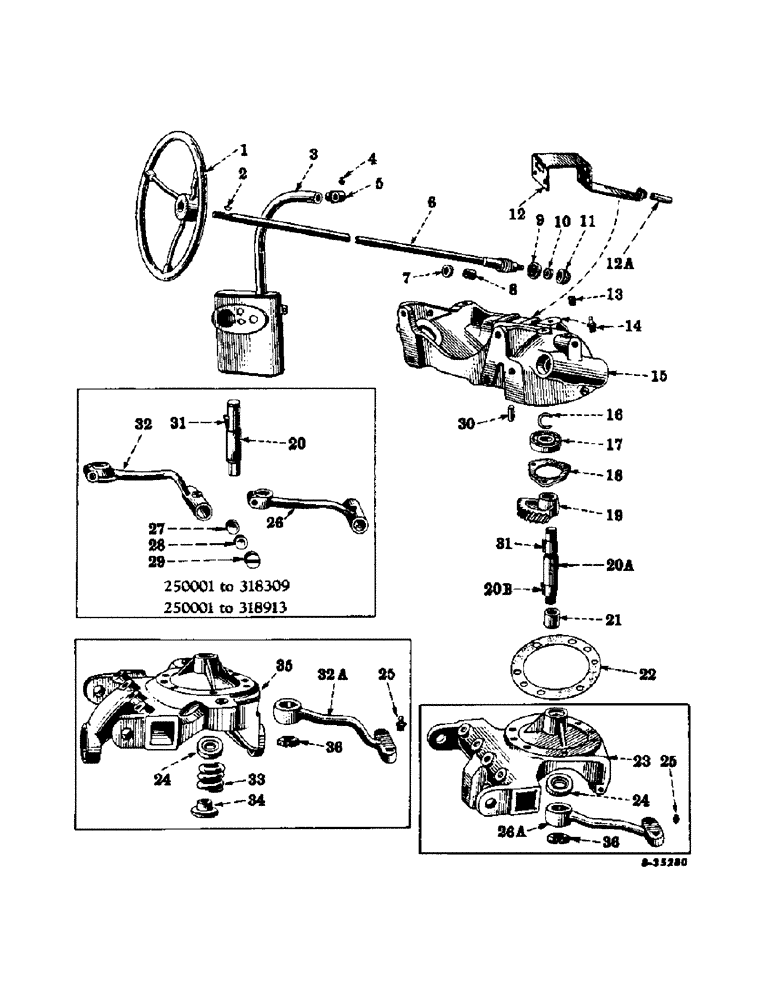

Запчасти Case IH SUPER AV (178) - CHASSIS, STEERING MECHANISM (12) - CHASSIS

1

46512DA

WHEEL

steering, 15" (optional with 60069D), Serial Range: 250001-355669

1шт.

1

60069D

HANDWHEEL

WHEEL, steering, 15" (optional with 46512DA), Serial Range: 250001-355669

1шт.

1

29118DC

WHEEL

steering, 18" (optional with 60070D), 356001 up

1шт.

1

60070D

STEERING WHEEL

WHEEL, steering, 18" (optional with 29118DC), 356001 up

1шт.

2

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, woodruff, 1/4 x 7/8"

1шт.

3

355458R92

SUPPORT, steering shaft and instrument panel (will work for 351195R93 and 350624R94)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (optional with 119512) 1/8"-27 x .66 lg

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461)

1шт.

5

9442DX

BRACKET, steering shaft support, w/fitting, 109461

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

351820R92

SHAFT

steering, w/worm

1шт.

122403

NUT, jam, hex., 3/4-16NF

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

7

48956D

SEAL

OIL SEAL, steering worm shaft (optional with 358782R91 and 358812R91)

1шт.

7

358782R91

SEAL

OIL SEAL, steering worm shaft (optional with 48956D and 358812R91)

1шт.

7

358812R91

OIL SEAL

OIL SEAL, steering worm shaft (optional with 48956D and 358782R91)

1шт.

8

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

steering worm

1шт.

9

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, ball (steering worm)

1шт.

10

69442D

NUT

steering worm

1шт.

11

6660DA

BEARING CAP

steering worm bearing

1шт.

12

58142DX

BRACKET, starting crank, Serial Range: 250001-355669

1шт.

12

362330R91

BRACKET, starting crank, 356001 up

1шт.

425-117

NUT,7/16"-20, G5

hex., 7/16-20NF

2шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

cap, hex-hd., 7/16-20NF x 3-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12a

10883H

SPACER, grille mounting, lower, 356001 up

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

13

356569R1

PLUG

steering gear housing vent (will work for 57735DX)

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (optional with 1105112), 250001 to 298717 1/8"-27 x .66 lg

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461), 250001 to 298717

1шт.

15

6532DFX

HOUSING, steering gear, assembly (composed of - (1) bushing 41096DBR, (1) housing 6532DF (NSS), (2) pins 25086DA, (1) plug 356569R1, (1) plug 103865, (1) plug 103867, (1) seal 48956D)

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

103865

PLUG, pipe, sq-hd., 1/8"

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8" (optional with 103879)

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (optional with 103867)

1шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, steering gear housing (2 1/2" long)

1шт.

362015R1

SCREW, cap, steering gear housing (2 3/4" long)

2шт.

362017R1

SCREW, cap, steering gear housing (3 1/2" long)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

47679D

RING, SNAP

steering worm wheel shaft

1шт.

17

ST288

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

steering worm wheel shaft

1шт.

18

43500D

RETAINER

steering worm wheel shaft bearing

1шт.

179814

SPACER

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

351815R1

GEAR

WHEEL, steering worm (28 teeth)

1шт.

20

47683DB

SHAFT, steering worm wheel (square end) (order 356552R92 or 356553R92)

1шт.

20a

356549R1

SHAFT

steering worm wheel (tapered end) (Super-A and A-1) 318310 up, (Super-AV and AV-1), 318914 up

1шт.

20b

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

(Used with tapered end shaft) #15, 1/4" x 1", HT

1шт.

21

47676DR

BUSHING,30.14mm ID x 33.34mm OD x 42.86mm L

steering worm wheel shaft

1шт.

22

47675D

GASKET

steering gear housing

1шт.

23

6530DDX

BASE

steering gear housing, w/bushing and oil seal, 47703D (super-A and A-1) (not used with heavy duty adjustable front axle

1шт.

103027

NUT, hex., 7/16-20NF

2шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2-1/4"

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

24

47703D

BUSHING

OIL SEAL, steering worm wheel shaft (optional with 358775R91 and 358815R91)

1шт.

24

358775R91

OIL SEAL

steering worm wheel shaft (optional with 47703D and 358815R91)

1шт.

24

358815R91

OIL SEAL

steering worm wheel shaft (optional with 47703D and 358775R91K)

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (optional with 119512) 1/8"-27 x .66 lg

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461)

1шт.

26

69438D

ARM, steering gear (used with square end shaft) (all Super A tractors except tractors equipped with heavy duty adjustable front axle) order 356552, Serial Range: 25001-318309

1шт.

26

356554R1

ARM

steering gear (used with tapered end shaft) (not illustrated) (all Super A - except tractors equipped with heavy duty adjustable front axle), Serial Range: 250001-318309

1шт.

26a

356550R2

ARM

steering gear (all Super A and A-1 tractors except tractors equipped with heavy duty adjustable front axle), 318310 up

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

27

57874D

CAP

SEAT, tie rod ball, end (Super-A), Serial Range: 250001-318309

1шт.

(Super A-V), Serial Range: 250001-318913

1шт.

28

57873D

SEAT, tie rod ball, center (Super-A), Serial Range: 250001-318309

1шт.

(Super-AV), Serial Range: 250001-318913

1шт.

29

57875D

SEAT

adjusting, tie rod ball (Super-A), Serial Range: 250001-318309

1шт.

(Super-AV), Serial Range: 250001-318913

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

30

25086DA

STUD

PIN, dowel, steering gear housing

2шт.

31

117989

WOODRUFF KEY,#19, 3/16" x 1 1/4", HT

1шт.

32

69439D

ARM, steering gear (used with square end shaft) (Super AV tractors, also Super A tractors equipped with heavy duty adjustable front axle-order 356553R92), FAA -, Serial Range: 250001-318309

1шт.

FAAV -, Serial Range: 250001-318913

1шт.

32

356555R1

ARM, steering gear (used with tapered end shaft) (not illustrated) (Super AV), Serial Range: 250001-318913

1шт.

(Super A tractors equipped with heavy duty adjustable front axle), Serial Range: 250001-318309

1шт.

32a

356551R2

ARM

steering gear (Super AV and AV-1), 318914 up

1шт.

(Super A and A-1 tractors equipped with heavy duty adjustable front axle), 318310 up

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181407

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

58574D

SPRING, front axle stop (Super-AV and AV-1 tractors also Super A and A-1 tractors equipped with heavy duty adjustable front axle)

2шт.

34

60399DA

RETAINER, front axle stop spring (Super-AV and AV-1 tractors also Super A and A-1 tractors equipped with heavy duty adjustable front axle)

2шт.

117310

PLATE

SCREW, slotted-fil-hd., 3/8-16NC x 1-1/2"

2шт.

35

9061DAX

BASE, steering gear housing, w/bushing and oil seal, 47703D (Super AV and AV-1 tractors also Super A and A-1 tractors equipped with heavy duty adjustable front axle)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

36

359040R1

NUT

steering worm wheel shaft (will work for 70120D) (Super A and A-1), 318310 up

1шт.

(Super-AV and AV-1) 318914 up

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

356552R92

1шт.

PACKAGE, service, steering gear arm and shaft (will work for 47683DB or 69438D) (all Super A tractors except tractors equipped with heavy duty adjustable front axle) (consists of - (1) arm 356554R1, (1) key 124553, (1) nut 359040R1, (1) pin 103388, (1) shaft 356549R1), 250001 to 318309

1шт.

356553R92

1шт.

PACKAGE, service, steering gear arm and shaft (will work for 47683DB or 69439D) (super-AV also Super A tractors equipped with heavy duty adjustable front axle) (consists of - (1) arm 356555R1, (1) key 124553, (1) nut 359040R1, (1) pin 103388, (1) shaft 356549R1) 250001 to 318913

1шт.
