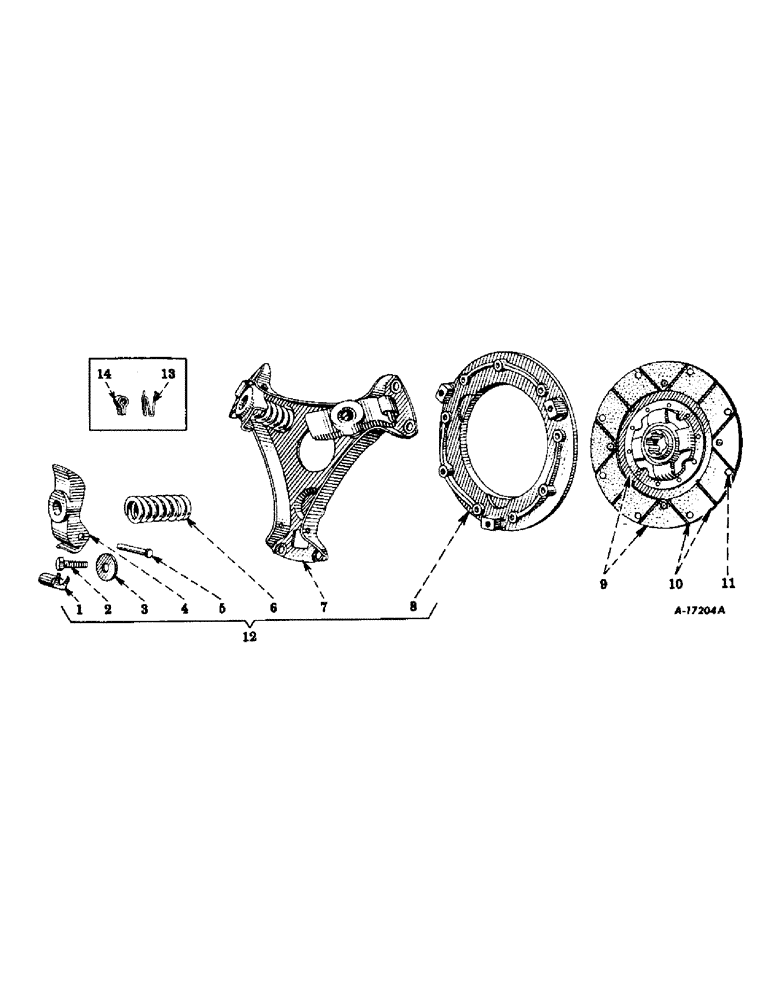

Запчасти Case IH SUPER A-1 (160) - CHASSIS, CLUTCH, AUBURN (12) - CHASSIS

1

355110R1

NO LONGER SERVICED

CLIP, return (will work for 357416R1), 332459 up

3шт.

2

63975D

SCREW, adjusting (will work for 351474R1), Serial Range: 250001-332458

3шт.

2

355109R1

PIN

SCREW, adjusting (will work for 357415R1), 332459 up

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

3

63157D

WASHER, adjusting screw, Serial Range: 250001-332458

3шт.

3

355096R1

WASHER, adjusting screw, (will work for 357417R1), 332459 up

3шт.

4

351919R1

LEVER, clutch, Serial Range: 250001-332458

3шт.

4

357418R1

LEVER, cluth, 332459 up

3шт.

5

63161D

PIN, pivot, clutch lever

3шт.

6

351920R1

SPRING, pressure

3шт.

7

351918R1

BRACKET, clutch

1шт.

8

63153D

PLATE, pressure, clutch, Serial Range: 250001-332458

1шт.

8

357419R1

PLATE, pressure, clutch, 332459 up

1шт.

9

351297R92

DISC

driven clutch

1шт.

10

351467R91

FACING, CLUTCH

PACKAGE, clutch facing (consists of two facings with ten rivets, 63974D), Serial Range: 250001-332458

1шт.

10

30718DXA

FACING

PACKAGE, clutch facing (consists of two facings with twenty two rivets, 53795V), 332459 up

1шт.

11

63974D

RIVET, facing, Serial Range: 250001-332458

10шт.

11

53795V

RIVET,Csk Hd, 3/16" x 5/16"

tubular, csk-hd., brs., 3/16 x 5/16", 332459 up

20шт.

12

351296R92

PLATE

pressure, clutch assembly (composed of - (1) bracket 351918R1, (3) clip 355110R1, (3) lever 357418R1, (3) nut 114493, (3) pin 63161D, (1) plate 357419R1, (3) screw 355109R1, (3) spring 351920R1, (3) washer 355096R1)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

64771D

SPRING, return, Serial Range: 250001-332458

3шт.

14

352751R1

SPRING, cushion, Serial Range: 250001-332458

3шт.
