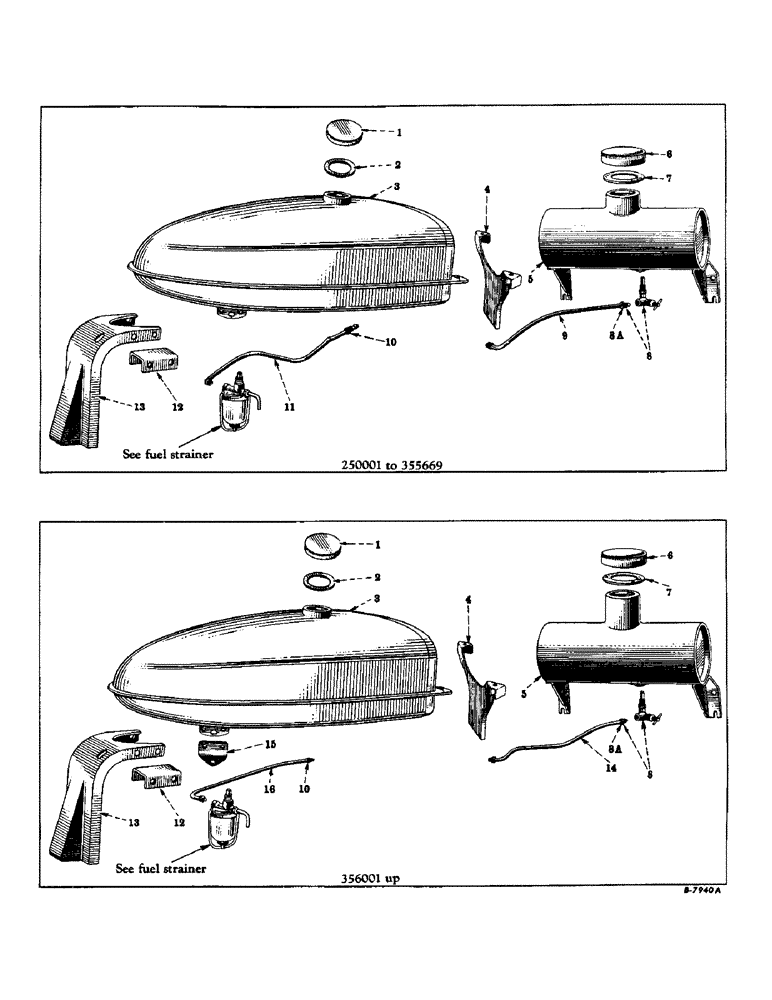

Запчасти Case IH SUPER A-1 (156) - CHASSIS, FUEL TANK, GAS TANK, SUPPORTS AND PIPING (12) - CHASSIS

1

23995DC

FILLER CAP

CAP, fuel tank filler, w/gasket, 23977DB

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

350615R93

TANK, fuel, w/cap, 23995DC (order 356011R96 or 356584R95), Serial Range: 250001-308954

1шт.

3

356010R96

TANK, fuel, w/cap, 23995DC, Serial Range: 308955-355669

1шт.

103026

NUT,3/8"-24, G5

(2 required with touch-control) 250001 to 308954 3/8"-24, G5

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

308955 up Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4" (2 required with touch- control) 250001 to 308954

4шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (for tractors not equipped with touch-control)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (2 required with touch-control) 3/8"

4шт.

3

356580R95

TANK, fuel, w/extension, assembly (composed of - (1) cap 23995DC, (2) extension 356353R1, (4) nut 103025, (4) screw 181335, (1) tank 356099R94 (NSS), (4) washer 103320) 356001 up

1шт.

4

350621R1

BRACKET, fuel tank support, front, Serial Range: 250001-308954

1шт.

4

356008R21

BRACKET

fuel tank support, front (optional with 356495R1) 308955 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

181355

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

356495R1

BRACKET, fuel tank support, front (grey iron) (optional with 356008R21), 308955 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

351637R94

TANK, gasoline, w/cap, 23995DC (distillate or kerosene), Serial Range: 250001-355669

1шт.

5

356372R93

TANK, gasoline, w/cap, 23995DC (distillate or kerosene), 356001 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

6

23995DC

FILLER CAP

CAP, gasoline tank filler, w/gasket, 23977DB

1шт.

7

23977DB

GASKET

gasoline tank filler cap

1шт.

8

29910D

VALVE, shut-off, gasoline tank, w/nut, 29889D (distillate or kerosene)

1шт.

8a

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing, gasoline tank to strainer pipe

2шт.

9

351623R11

PIPE, gasoline tank to strainer, w/two nuts, 29899D (distillate or kerosene), Serial Range: 250001-355669

1шт.

10

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing, (strainer to carburetor pipe)

2шт.

11

350623R11

FUEL TUBE

PIPE, strainer to carburetor, w/two nuts, 29899D (gasoline), Serial Range: 250001-355669

1шт.

11

351622R11

PIPE, strainer to carburetor, w/two nuts, 29899D (kerosene or distillate), Serial Range: 250001-355669

1шт.

12

350622R1

BRACKET, fuel tank support angle adapter (for tractors not equipped with touch-control)

2шт.

103026

NUT,3/8"-24, G5

4шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

49601D

BRACKET, fuel tank support, rear (for tractors not equipped with touch-control)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

356373R11

PIPE, gasoline tank to strainer, w/two nuts, 29899D (distillate or kerosene), 356001 up

1шт.

15

356353R1

SUPPORT

EXTENSION, fuel tank support bracket rear, 356001 up

2шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

356355R11

PIPE, strainer to carburetor, w/two nuts, 29899D (gasoline) 356001 up

1шт.

16

356374R11

PIPE, strainer to carburetor, w/two nuts, 29899D (distillate or kerosene) 356001 up

1шт.

356011R96

PACKAGE, service, fuel tank, w/mounting bracket (will work for 350615R93) (optional with 356584R95) (consists of - (1) bracket 356008R21, (4) screw 179837, (2) screw 181355, (1) tank 356010R96, (6) washer 103321), Serial Range: 250001-308954

1шт.

356584R95

PACKAGE, service fuel tank, w/mounting bracket (grey iron) (will work for 350615R93) (optional with 356011R96) (consists of - (1) bracket 356495R1, (4) screw 179837, (2) screw 179839, (1) 356010R96, (6) washer 103321), Serial Range: 250001-308954

1шт.
