Запчасти Case IH SUPER A-1 (244) - HYD SYSTEM, REMOTE CONTROL, SPECIAL, BREAK-AWAY COUPLING, FRONT SECTION, BRACKETS HOSES AND CLAMPS (07) - HYDRAULIC SYSTEM

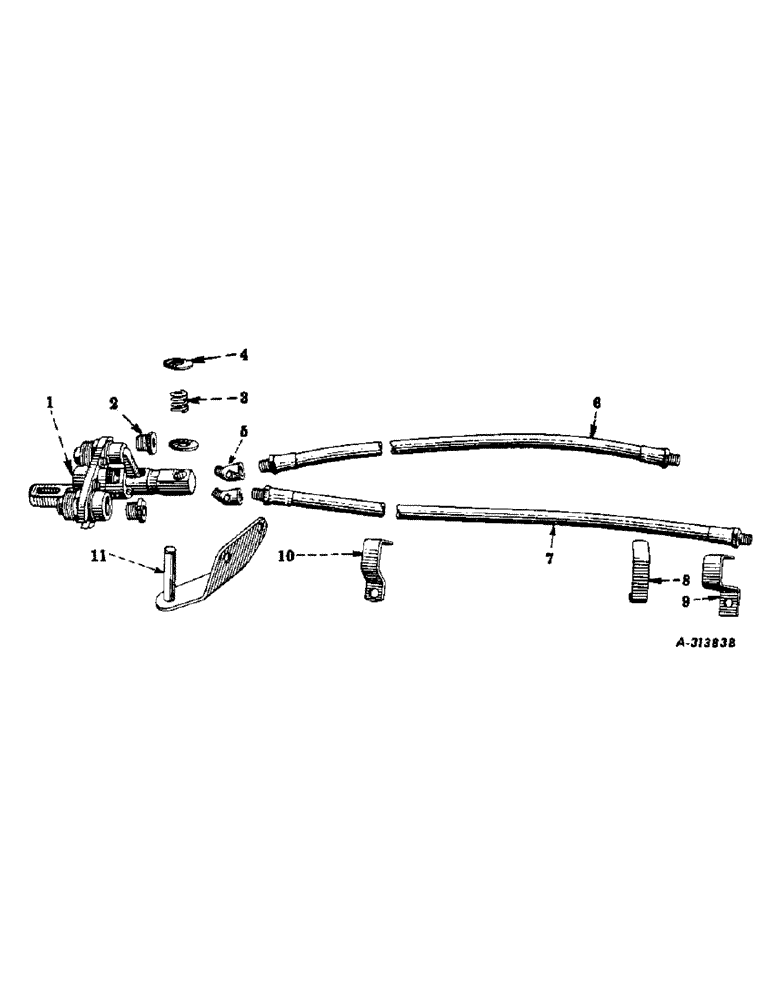

Схема запчастей Case IH SUPER A-1 - (244) - HYD SYSTEM, REMOTE CONTROL, SPECIAL, BREAK-AWAY COUPLING, FRONT SECTION, BRACKETS HOSES AND CLAMPS (07) - HYDRAULIC SYSTEM
4
11
1
9
6
7
5
2
3
10
8

Артикул

Название

Примечание

Количество

1

364311R91

COUPLING, break-away, front section, assembly (will work for 353215R91) (for components see list of parts under details of "break-away coupling)

1шт.

2

144038

BUSHING, reducing, pipe, 1/2 x 1/4" 1/2" NPT Male x 1/4" NPT Fem

2шт.

3

353213R2

SPRING

break-away coupling bracket

1шт.

4

19849H

Follows reference no. 11

1шт.

5

454097

ELBOW

street, automotive pipe, cd-pltd., 45deg., 1/4" (will work for 114118) (optional with 360451R1)

2шт.

5

360451R1

ELBOW, street, auxiliary control valve hose (will work for 144118) (optional with 454097)

2шт.

6

356808R91

HOSE, control valve to break-away coupling, front section (1/4" I.D. x 50" long) (will work for 357953R91)

1шт.

7

356807R91

HOSE, control valve to break-away coupling, front section (1/4" I.D. x 54" long) (will work for 357952R91)

1шт.

8

356809R1

CLAMP, front, auxiliary control valve hose, Serial Range: 250001-348643

1шт.

9

360383R1

CLAMP, front, auxiliary control valve hose, 348644 up

1шт.

10

356810R1

CLAMP, rear, auxiliary control valve hose

1шт.

11

356811R11

BRACKET, break-away coupling

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

NLS

NO LONGER SERVICED

1шт.

19849H

WASHER, plain, 33/64" I.D. x 1-3/8" O.D. x no. 11 ga.

2шт.

364655R1

CAP, cust, break-away coupling, front section (will work for 355190R3) (illustrated with break-away coupling)

2шт.

356812R1

SUPPORT, break-away coupling bracket (for tractors not equipped with belt pulley or P.T.O. attachments)

1шт.

220066

NUT, hex., 3/8-16NC

2шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 20
