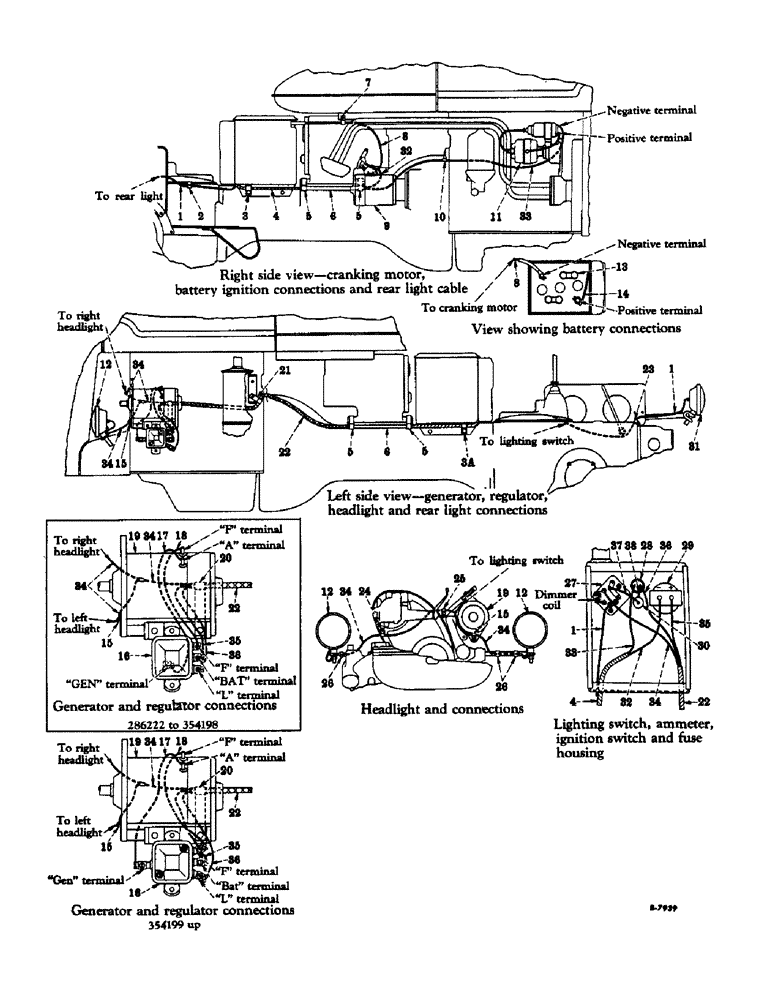

Запчасти Case IH SUPER A-1 (136) - ELECTRICAL SYSTEM, LIGHTING AND STARTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

358117R92

CABLE, lighting switch to rear light (black) (will work for 39368DX)

1шт.

2

350740R1

CLIP

rear light cable

1шт.

3

60938D

CLIP, cable (on battery box hold-down bolt), 25001 to 308954, Serial Range: 308955-348643

1шт.

3

359526R1

CLIP, cable (on battery box mounting bolt) 348644 up

1шт.

3a

355847R1

SUPPORT, cable harness (on battery box hold-down bolt), Serial Range: 308955-378643

2шт.

3a

359526R1

CLIP, cable harness (on battery box mounting bolt), 348644 up

1шт.

4

358109R92

HARNESS

CABLE, ignition and lighting (will work for 351915R91)

1шт.

5

350741R1

CLIP, harness (on touch-control cylinder block mounting bolts)

4шт.

6

351911R1

SHIELD, cable harness

2шт.

7

351914R1

CLIP

battery cable

1шт.

8

350735R91

CABLE

battery to cranking motor, w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal, w/nut, sleeve, and washer

1шт.

9

355794R91

MOTOR, cranking, assembly, (for components see list of parts under details of "cranking motor") (will work for 251684R91)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

351871R1

CLIP, ignition switch to coil cable

1шт.

11

357934R91

UNIT, battery ignition, assembly (will work for 353870R91) (for components see list of parts under details of "battery ignition unit")

1шт.

12

45640DB

LAMP

HEADLIGHT (conventional), assembly (for components see list of parts under details of "headlight or rear light unit")

2шт.

12

357884R93

HEADLIGHT (sealed beam), assembly (for components see list of parts under details of "headlight or rear light unit")

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

355196R93

BATTERY (optional with 354210R91)

1шт.

13

354210R91

BATTERY (optional with 355196R93)

1шт.

14

350736R91

CABLE

battery to ground, w/bolt 356062R91

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

15

61813D

CLIP

headlight cable

1шт.

16

360898R91

REGULATOR

voltage (Delco-Remy 1118780) (will work for 354234R91) (for components see list of parts under details of "voltage regulator")

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

358112R92

CABLE

generator "A" terminal to regulator "GEN" terminal (will work for 354229R11 and 358115R91)

1шт.

18

358116R92

CABLE, generator "F" terminal to regulator "F" terminal (will work for 354230R11)

1шт.

19

354237R91

GENERATOR, assembly (for components see list of parts under details of "generator")

1шт.

20

351913R1

CLIP, cable harness (on generator bracket rear bolt)

1шт.

21

350742R1

CLIP, cable harness (on lower air cleaner mounting bolt)

1шт.

22

354231R92

HARNESS

cable

1шт.

23

60938D

CLIP, rear light bracket bolt, lower

1шт.

24

61813D

CLIP

headlight cable (on crankcase front cover bolt)

1шт.

25

61813D

CLIP

headlight cable (on generator brace bolt)

1шт.

26

52116D

CLAMP, headlight cable (on lamp post)

3шт.

110633

NUT,#10-24

3шт.

110501

SCREW

slotted-rd-hd., no. 10-24NC x 5/8"

3шт.

27

362110R91

SWITCH

lighting, assembly (for components see list of parts under details of "lighting switch unit")

1шт.

28

62801DC

SWITCH

battery ignition, assembly (for components see list of parts under details of "battery ignition switch unit")

1шт.

29

42383DC

AMMETER

W/CLAMP, six nuts and six washers (optional with 354473R91)

1шт.

29

354473R91

AMMETER

w/clamp, six nuts and six washers (optional with 42383DC)

1шт.

29

360053R91

INDICATOR

charge, w/clamp, six nuts and six washers (use only on tractors equipped with voltage regulator)

1шт.

30

354232R91

BOX

HOUSING, fuse w/knob, 356445R91) (will work for 354233R91)

1шт.

31

45640DB

LAMP

LIGHT, rear (conventional), assembly (for components see list of parts under details of "headlight and rear light unit")

1шт.

31

357884R93

LIGHT, rear (sealed beam), assembly (for components see list of parts under details of "headlight and rear light unit")

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

CABLE, ammeter or charge indicator to cranking motor (order 358109R92)

1шт.

33

CABLE, ignition switch to coil (order 358109R92)

1шт.

34

CABLE, lighting switch to headlight (black) (order 354231R92)

1шт.

35

CABLE, regulator "bat" terminal to ammeter or charge indicator (order 354231R92)

1шт.

36

CABLE, ignition switch to regulator "L" terminal (order 354231R92)

1шт.

36

56683D

CABLE, ignition switch to ammeter or charge indicator (not illustrated) (for tractors equipped with battery ignition conversion package)

1шт.

37

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

38

CABLE, fuse housing to ignition switch (used with 354232R91)

1шт.

106653

FUSE

(type AGC.20 amp.)

1шт.

356445R91

KNOB

fuse housing

1шт.
