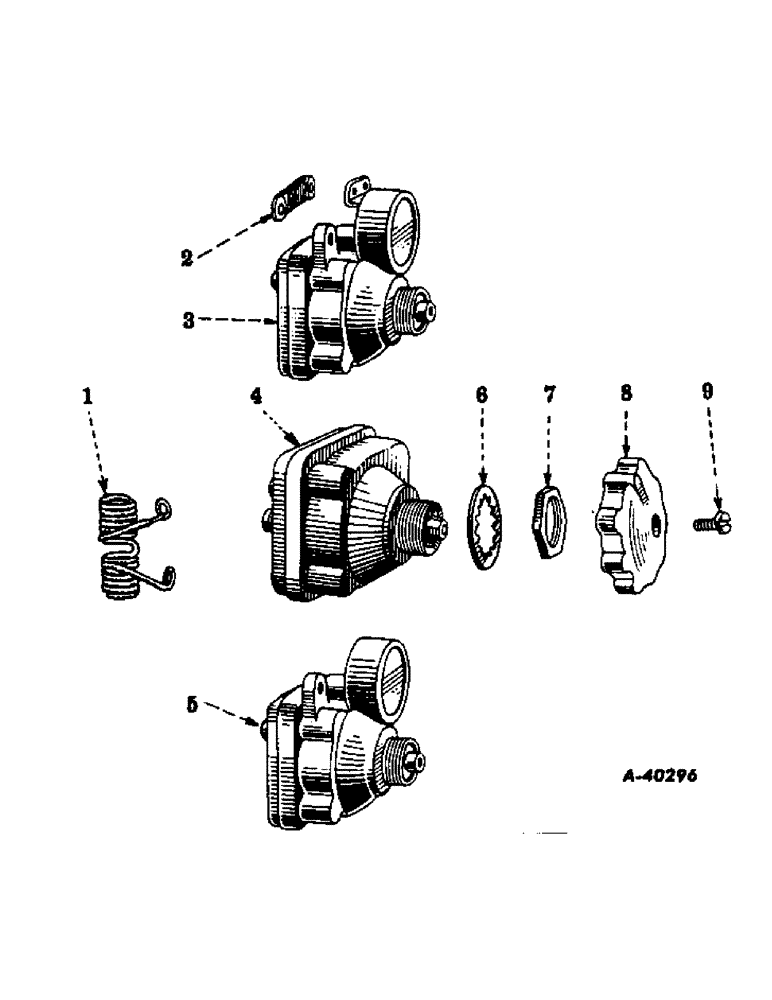

Запчасти Case IH SUPER A-1 (132) - ELECTRICAL SYSTEM, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

COIL, resistance, lighting switch dimmer (6 volt) (Mfr. 814545)

1шт.

SCREW, dimmer coil attaching (Mfr. 1882994)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

2

RESISTANCE, generator field, mfr. 1878070

1шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

SCREW, generator resistance attaching, mfr. 1864099

2шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

WASHER, lock, generator resistance attaching screw, mfr. 1873844

2шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

3

SWITCH, lighting, not serviced separately - order switch assembly

1шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

SCREW, terminal, 5/16" long, mfr. 1864099

1шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

SCREW, terminal, 3/8" long, mfr. 1882994

4шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

WASHER, lock, terminal screw, mfr. 1873844

5шт.

(Mfr. 1994035) Switch, lighting (6 volt), assembly (for tractors equipped with generator relay)

1шт.

4

SWITCH, lighting, not serviced separately - order switch assembly

1шт.

363130R91 (Mfr. 1994038) Switch, lighting (6 volts), assembly (will work for 362110R91) (for tractors equipped with voltage regulator)

1шт.

SCREW, terminal, 3/8" long, mfr. 1882994

4шт.

363130R91 (Mfr. 1994038) Switch, lighting (6 volts), assembly (will work for 362110R91) (for tractors equipped with voltage regulator)

1шт.

WASHER, lock, terminal screw, mfr. 1873844

4шт.

363130R91 (Mfr. 1994038) Switch, lighting (6 volts), assembly (will work for 362110R91) (for tractors equipped with voltage regulator)

1шт.

5

SWITCH, lighting, not serviced separately - order switch assembly

1шт.

(Mfr. 1994036) Switch, lighting (6 volt), assembly (for tractors equipped with Bosch "no battery" type lighting system)

1шт.

SCREW, terminal, 3/8" long, mfr. 1882994

4шт.

(Mfr. 1994036) Switch, lighting (6 volt), assembly (for tractors equipped with Bosch "no battery" type lighting system)

1шт.

WASHER, lock, terminal screw, mfr. 1873844

4шт.

(Mfr. 1994036) Switch, lighting (6 volt), assembly (for tractors equipped with Bosch "no battery" type lighting system)

1шт.

6

141706

WASHER

lock, internal-tooth, 11/16"

1шт.

7

NUT, mounting lighting switch (Mfr. 1882012)

1шт.

8

KNOB, lighting switch (Mfr. 1882013)

1шт.

This part is not included in the switch assembly but should be used for service.

1шт.

8

KNOB, lighting switch, not illustrated, this part is included in the switch assembly that is also used on other tractors, mfr. 1930685

1шт.

363130R91 (Mfr. 1994038) Switch, lighting (6 volts), assembly (will work for 362110R91) (for tractors equipped with voltage regulator)

1шт.

9

SCREW, mounting lighting switch knob (Mfr. 1864099)

1шт.

WASHER, lock, medium, cd-pltd, no. 8 (Mfr. 121841)

1шт.
